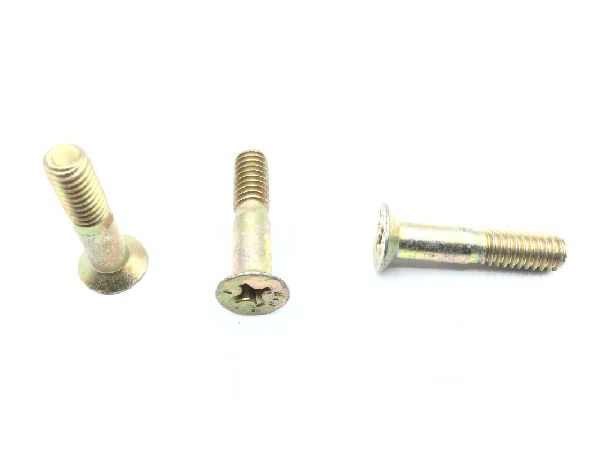

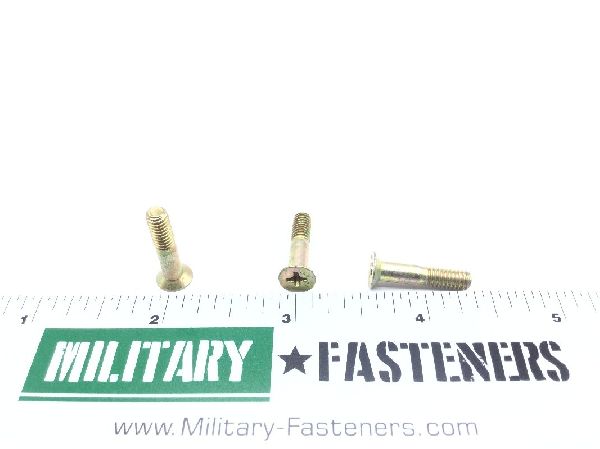

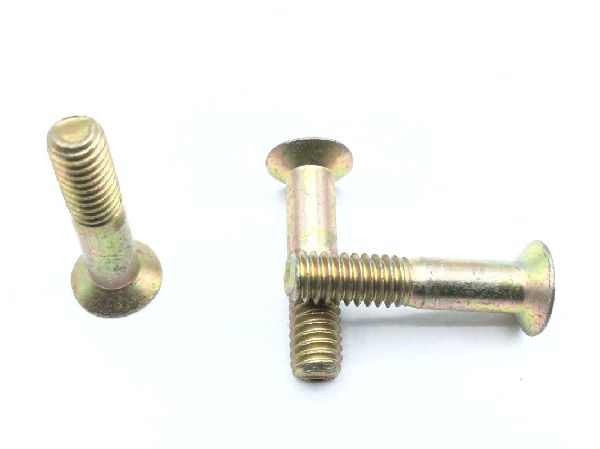

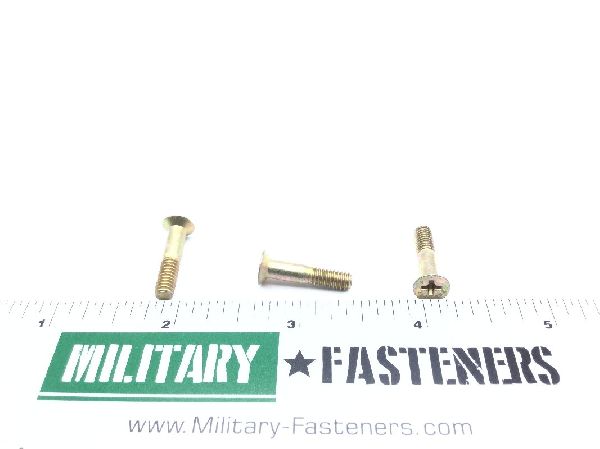

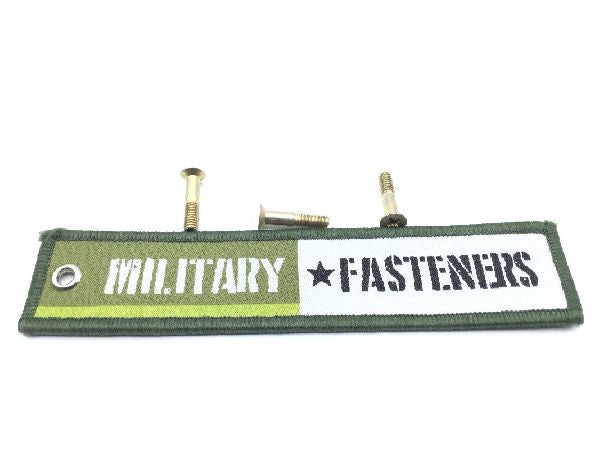

NAS517-2-6 Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flat countersunk

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 0.766 inches and 0.811 inches
Hardness Rating: Between 36.0 rockwell c and 40.0 rockwell c
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 160000 pounds per square inch
Screw Material: Steel comp 8630
Screw Material Specification: Mil-s-6050 military specification single material response or an-s-9 military standard single material response
Screw Surface Treatment: Cadmium and chromate
Screw Surface Treatment Specification: Qq-p-416 ty2 cl 3 federal specification single treatment response
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: Between 0.314 inches and 0.451 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.287 inches and 0.334 inches
