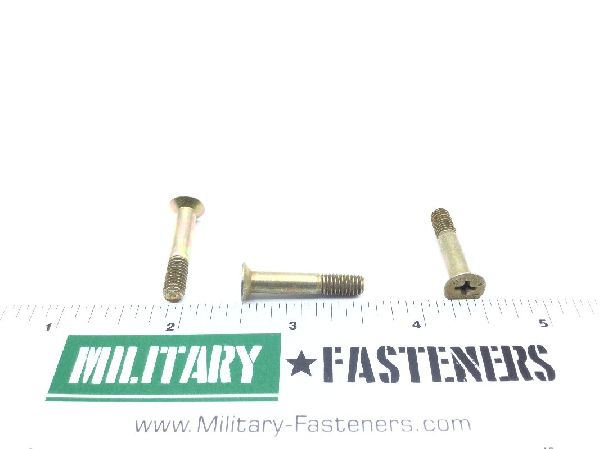

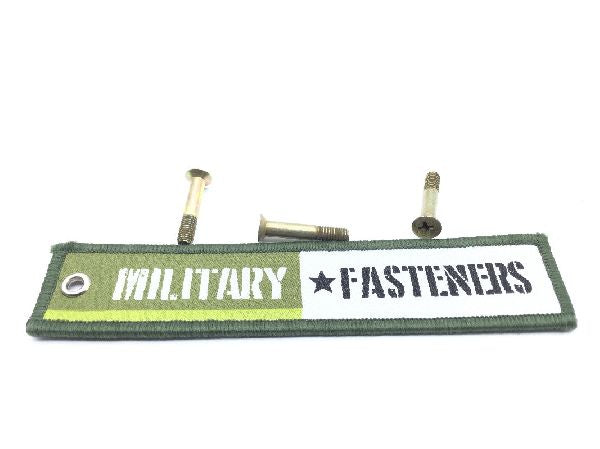

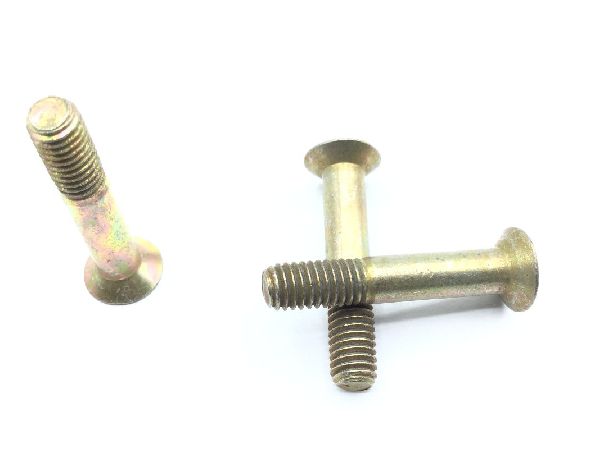

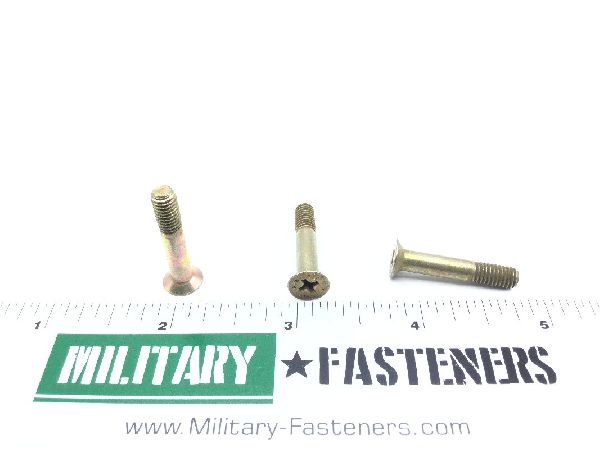

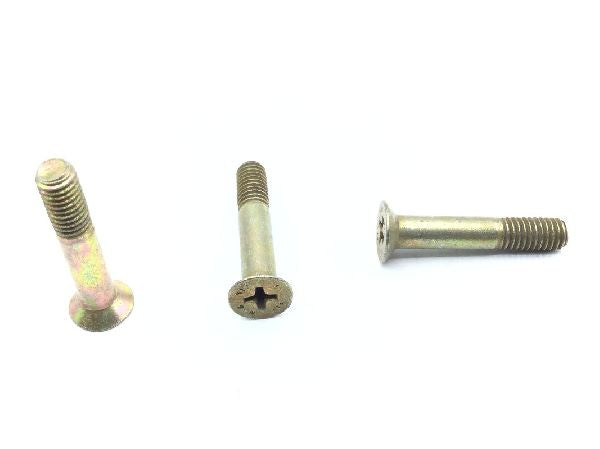

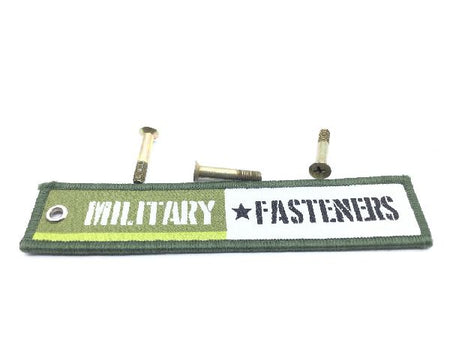

NAS517-3-10 Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $0.52

Units per Pack 100

Price per Pack $52.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $52.00

Add item to quote

Head Style

Flat countersunk

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 1.016 inches and 1.061 inches
Hardness Rating: Between 36.0 rockwell c and 40.0 rockwell c
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 160000 pounds per square inch
Screw Material: Steel
Screw Material Specification: Mil-s-6050 military specification single material response or an-s-9 military standard single material response
Screw Surface Treatment: Cadmium and chromate
Screw Surface Treatment Specification: Qq-p-416 type 2 cl 3 federal specification all treatment responses
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.314 inches and 0.451 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.337 inches and 0.387 inches
