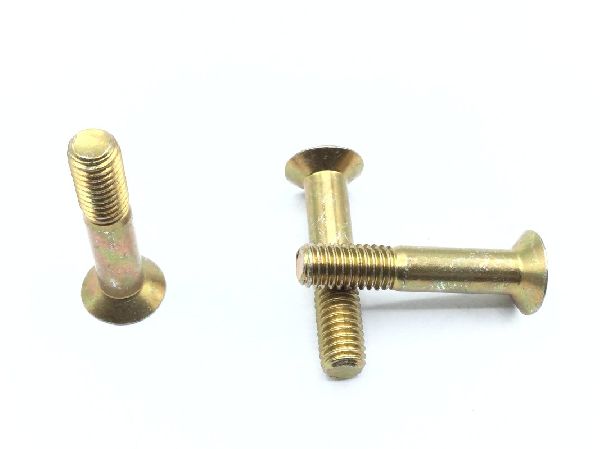

NAS517-3-9 Machine Screw (2)
NAS517-3-9 Machine Screw (3)

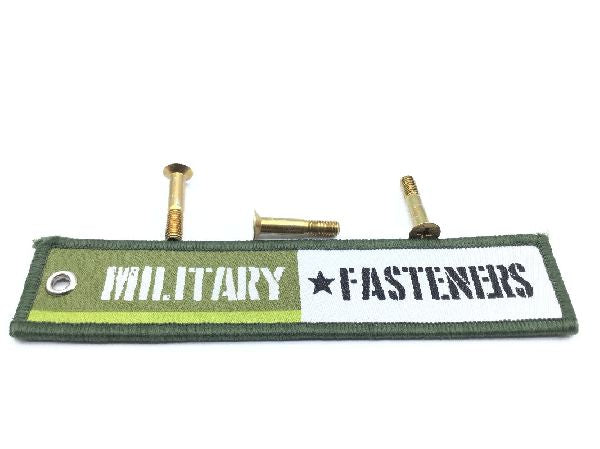

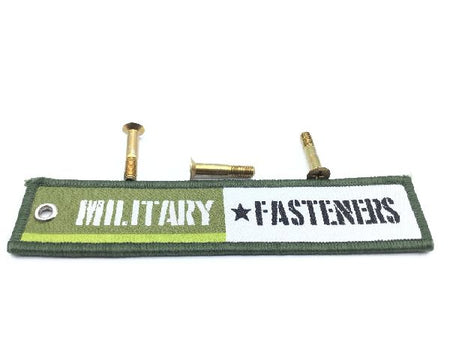

NAS517-3-9 Machine Screw (4)

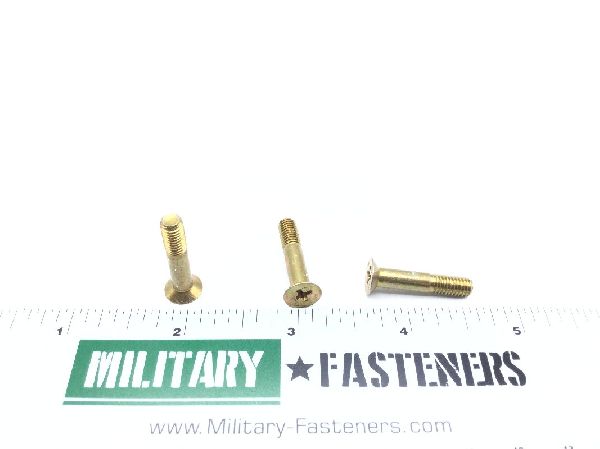

NAS517-3-9 Machine Screw (5)

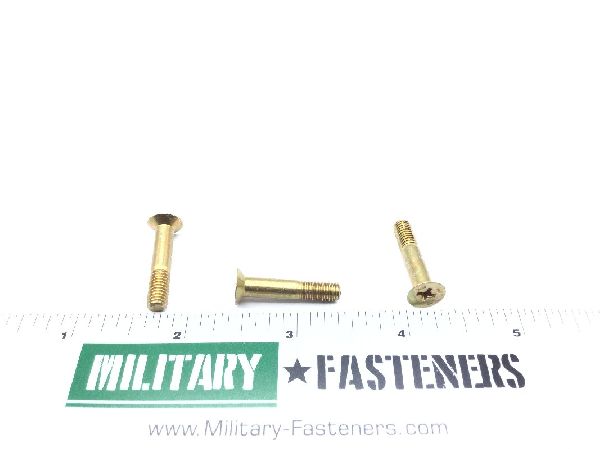

NAS517-3-9 Machine Screw (6)
NAS517-3-9 Machine Screw
NAS517-3-9 Machine Screw (2)
NAS517-3-9 Machine Screw (3)
NAS517-3-9 Machine Screw (4)
NAS517-3-9 Machine Screw (5)
NAS517-3-9 Machine Screw (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS517-3-9 Machine Screw

Product Series
NAS
ECCN
EAR99
Schedule
7318.15.9000
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Head Style
Flat countersunk
Material
Steel
Surface Treatment
Qq-p-416 type 2 cl 2 federal specification single treatment response
Thread Class
3a
Countersink Angle
Between 99.0 degrees and 101.0 degrees
Fastener Length
Between 0.954 inches and 0.999 inches
Hardness Rating
Between 36.0 rockwell c and 40.0 rockwell c
Internal Drive Style
Cross recess type 1
Material Specification
Mil-s-6050 military specification single material response
Min. Tensile Strength (psi)
160000 pounds per square inch
Thread Diameter
0.190 inches
Thread Direction
Right-hand
Thread Length
Between 0.315 inches and 0.452 inches
Thread Qty Per Inch (tpi)
32
Thread Series Designator
Unf (fine thread)
Head Diameter
Between 0.337 inches and 0.387 inches
