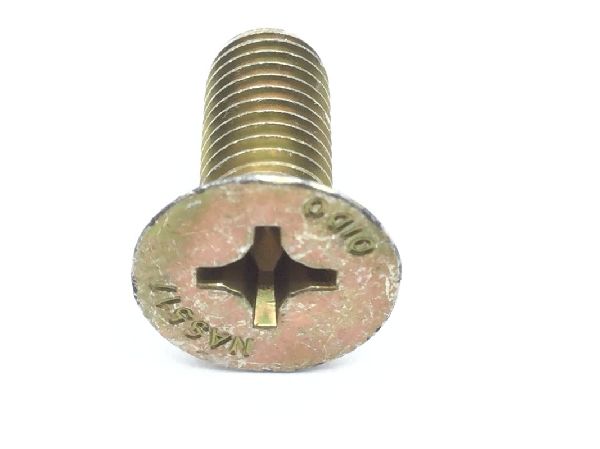

NAS517-4-2 Machine Screw

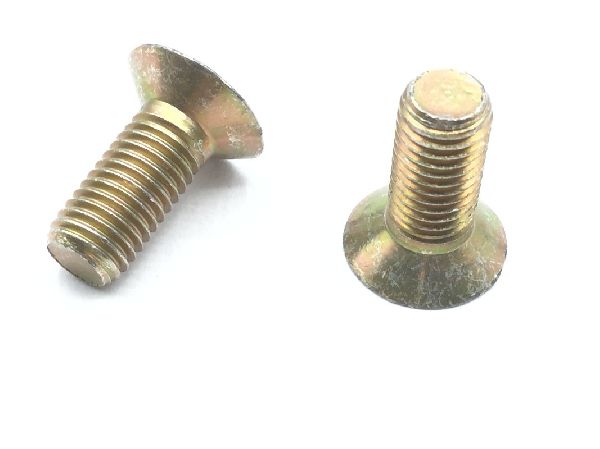

NAS517-4-2 Machine Screw (2)

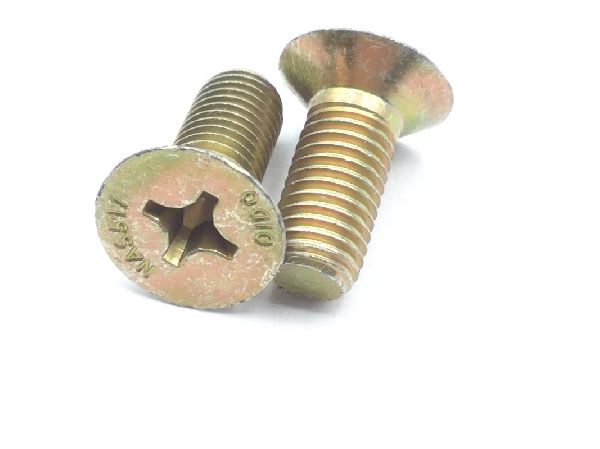

NAS517-4-2 Machine Screw (3)

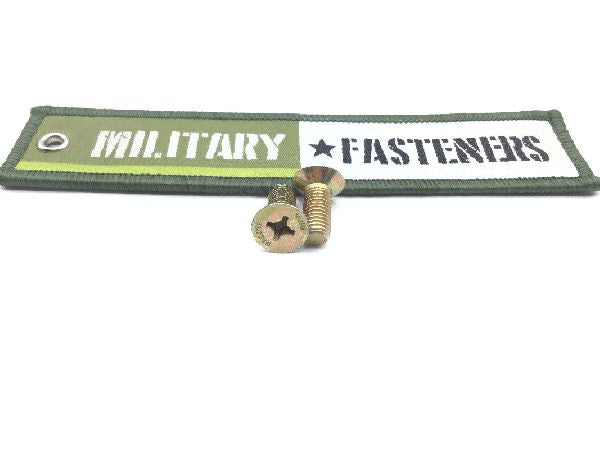

NAS517-4-2 Machine Screw (4)

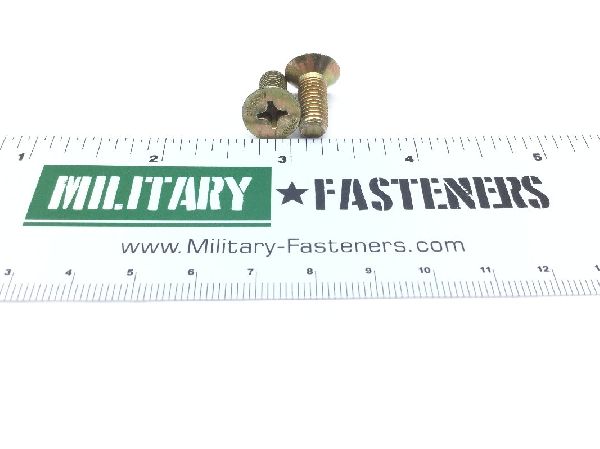

NAS517-4-2 Machine Screw (5)

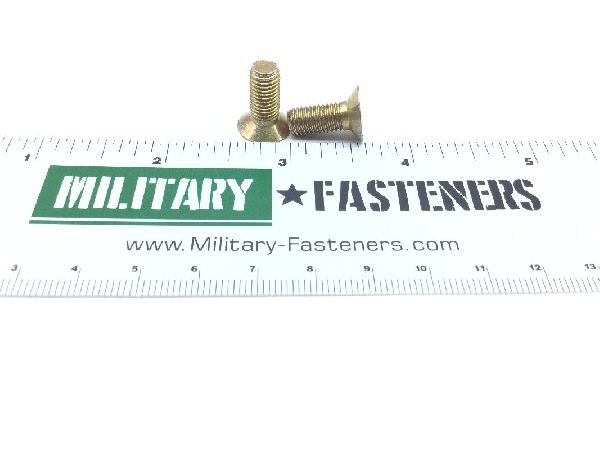

NAS517-4-2 Machine Screw (6)
NAS517-4-2 Machine Screw
NAS517-4-2 Machine Screw (2)
NAS517-4-2 Machine Screw (3)
NAS517-4-2 Machine Screw (4)
NAS517-4-2 Machine Screw (5)
NAS517-4-2 Machine Screw (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS517-4-2 Machine Screw

Product Series
NAS
ECCN
EAR99
Schedule
7318.15.9000
Price per Unit $0.42
Units per Pack 100
Price per Pack $42.00
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:
Total Packs 1
Total Price $42.00
Add item to quote
Head Style
Flat countersunk
Material
Steel
Surface Treatment
Qq-p-416 type 2 cl 3 federal specification single treatment response
Thread Class
3a
Countersink Angle
Between 99.0 degrees and 101.0 degrees
Fastener Length
Between 0.579 inches and 0.624 inches
Internal Drive Style
Cross recess type ii
Material Specification
Mil-s-6758 military specification 1st material response or mil-s-5000 military specification 2nd material response or mil-s-6049 military specification 3rd material response
Min. Tensile Strength (psi)
160000 pounds per square inch
Specification Data
80205-nas517 professional/industrial association standard
Thread Diameter
0.250 inches
Thread Direction
Right-hand
Thread Length
Between 0.402 inches and 0.473 inches
Thread Qty Per Inch (tpi)
28
Thread Series Designator
Unf (fine thread)
Head Diameter
Between 0.452 inches and 0.510 inches
