NAS517-4-32 Machine Screw
NAS517-4-32 Machine Screw (2)
NAS517-4-32 Machine Screw (3)
NAS517-4-32 Machine Screw (4)

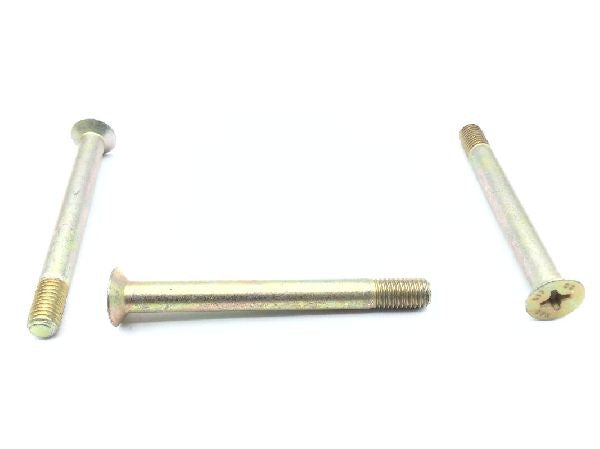

NAS517-4-32 Machine Screw

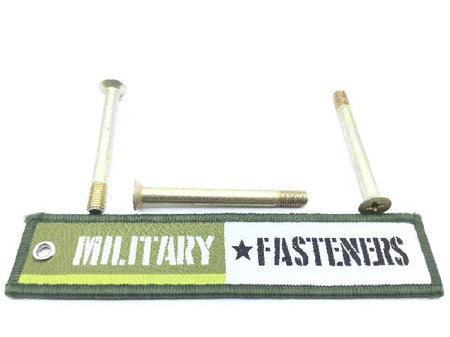

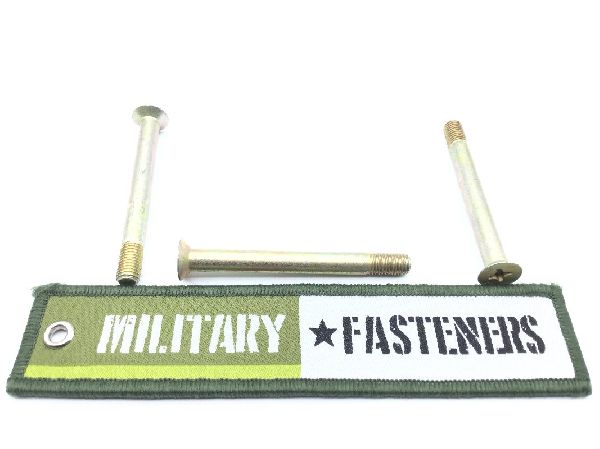

NAS517-4-32 Machine Screw (2)

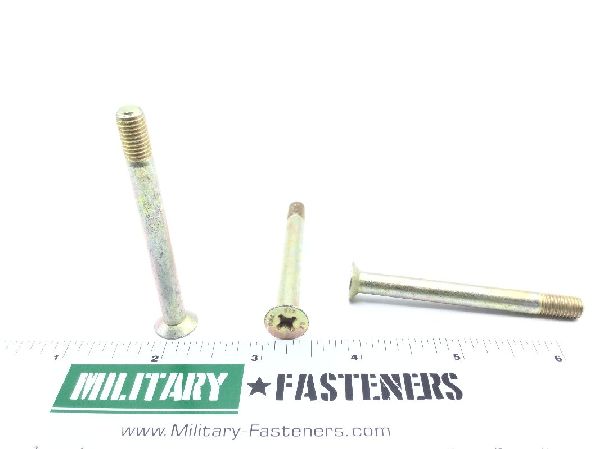

NAS517-4-32 Machine Screw (3)

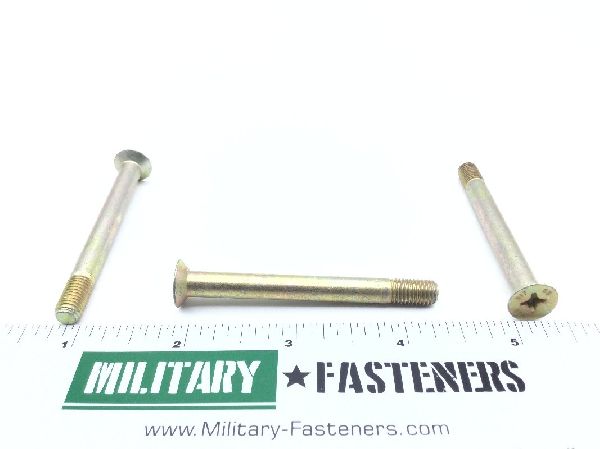

NAS517-4-32 Machine Screw (4)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS517-4-32 Machine Screw

Product Series
NAS
ECCN
EAR99
Schedule
7318.15.2091
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Head Style
Flat countersunk
Thread Class
3a
Countersink Angle
Between 99.0 degrees and 101.0 degrees
Fastener Length
2.498 inches
Hardness Rating
Between 36.0 rockwell c and 40.0 rockwell c
Internal Drive Style
Cross recess type 1
Min. Tensile Strength (psi)
160000 pounds per square inch
Screw Material
Steel comp 8630 or steel comp 4037
Screw Surface Treatment
Cadmium and chromate
Specification Data
80205-nas517 professional/industrial association standard
Thread Diameter
0.250 inches
Thread Direction
Right-hand
Thread Length
Between 0.438 inches and 2.498 inches
Thread Qty Per Inch (tpi)
28
Thread Series Designator
Unf (fine thread)
Head Diameter
Between 0.452 inches and 0.510 inches
