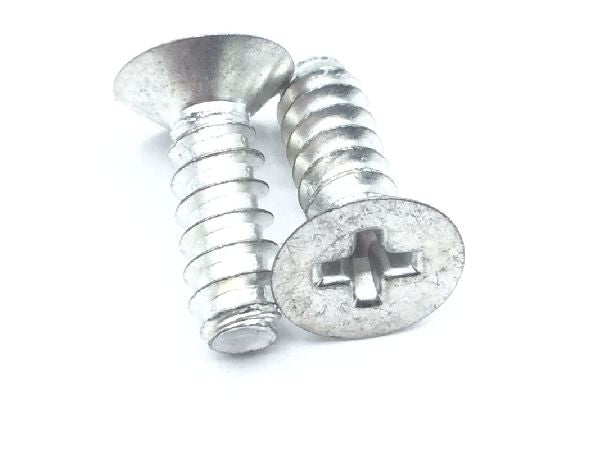

NAS548P8-8 Tapping Screw

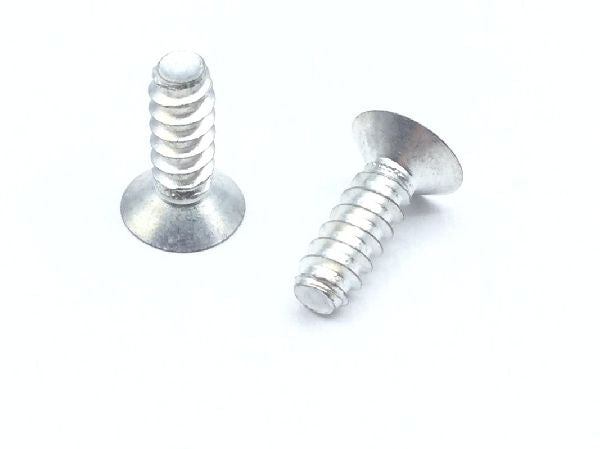

NAS548P8-8 Tapping Screw (2)

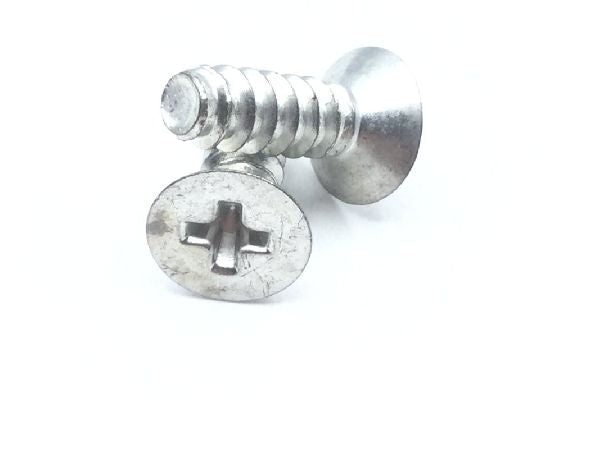

NAS548P8-8 Tapping Screw (3)

NAS548P8-8 Tapping Screw (4)

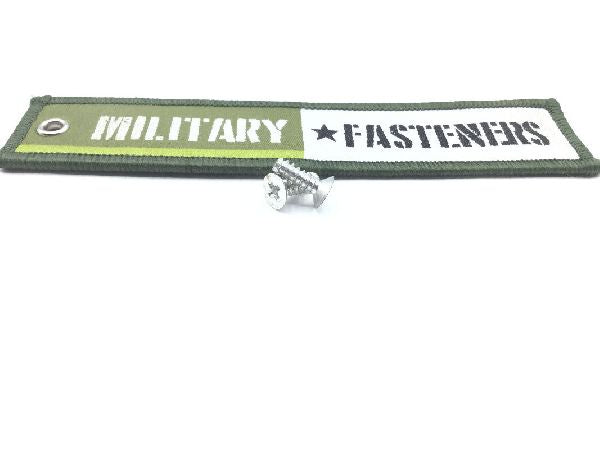

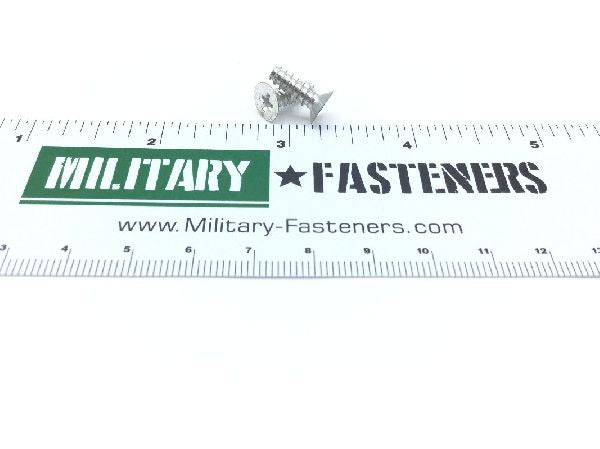

NAS548P8-8 Tapping Screw (5)

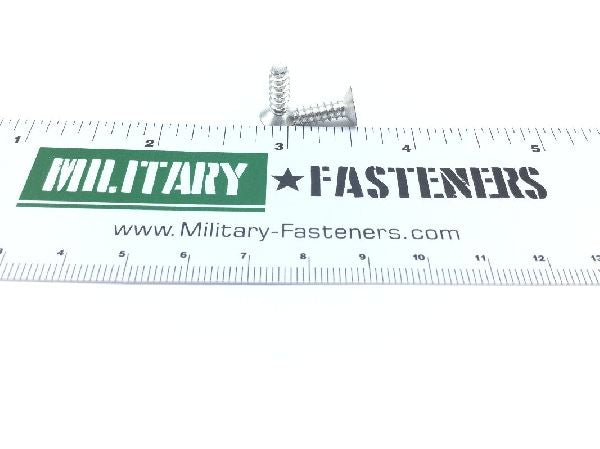

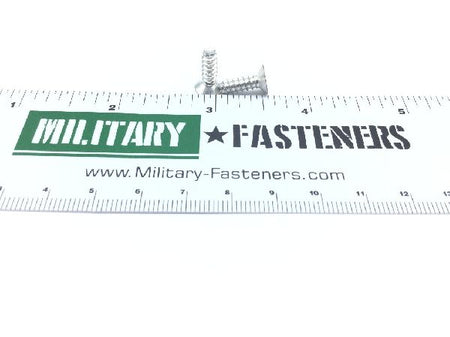

NAS548P8-8 Tapping Screw (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS548P8-8 Tapping Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.80

Units per Pack 50

Price per Pack $40.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $40.00

Add item to quote

Head Style

Flat countersunk

Material

Steel

Countersink Angle: 100 degrees
Fastener Length: 0.5 inches
Hardness Rating: 37 rockwell c
Internal Drive Style: Cross recess type 1
Material Specification: military specification single material response mil-s-18729
Min. Tensile Strength (psi): 90000 pounds per square inch
Nonmachine Thread Diameter: 0.166 inches
Nonmachine Thread Style: Dog type (type b or c)
Head Diameter: 0.308 inches
