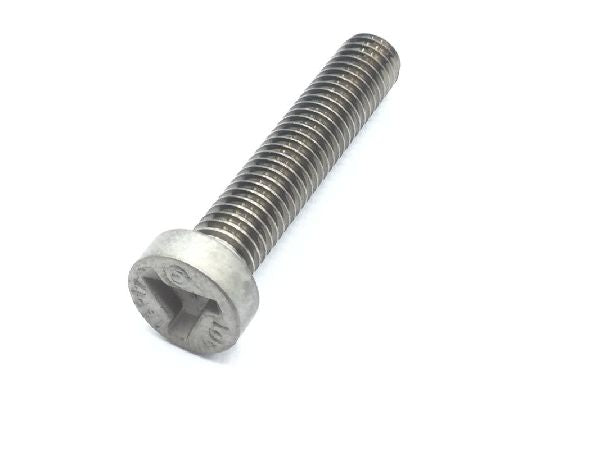

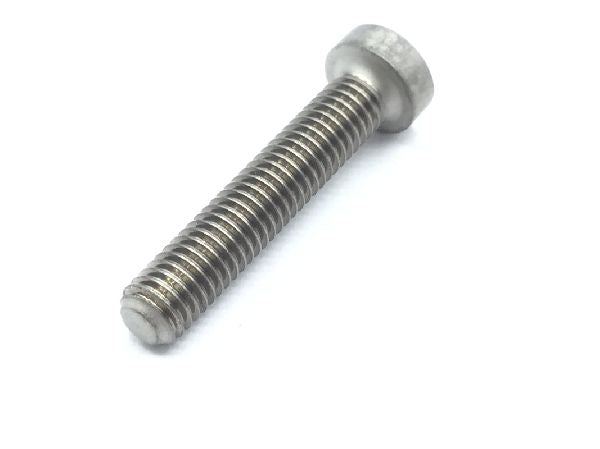

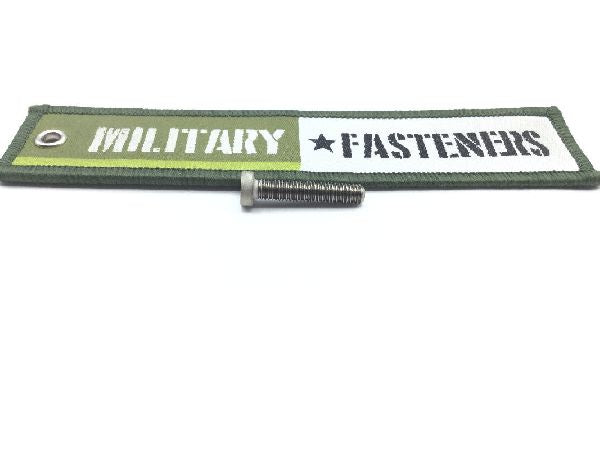

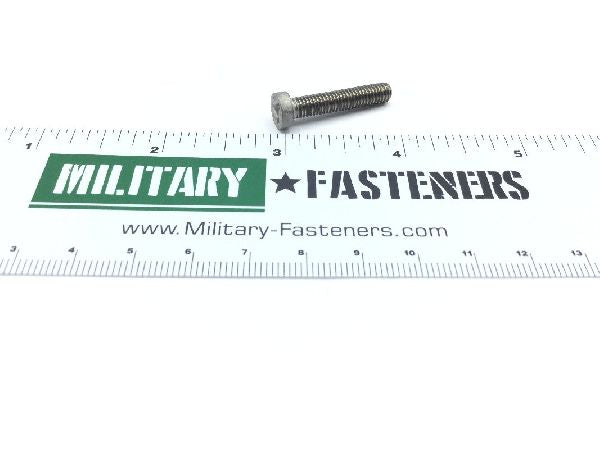

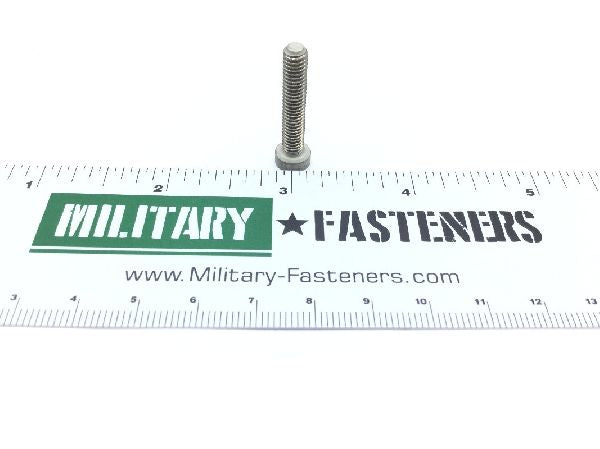

NAS5503U16 Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $76.23

Units per Pack 1

Price per Pack $76.23

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $76.23

Add item to quote

Head Style

Fillister

Material

Titanium alloy

Thread Class

Fastener Length: Between 0.970 inches and 1.000 inches
Head Height: Between 0.103 inches and 0.118 inches
Internal Drive Style: Tri-wing recess
Material Specification: 6al-4v assn standard single material response 6al-4v assn standard single material response or ams4967 ams4928
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas5503 professional/industrial association standard
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: 1.000 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Head Diameter: Between 0.306 inches and 0.313 inches
