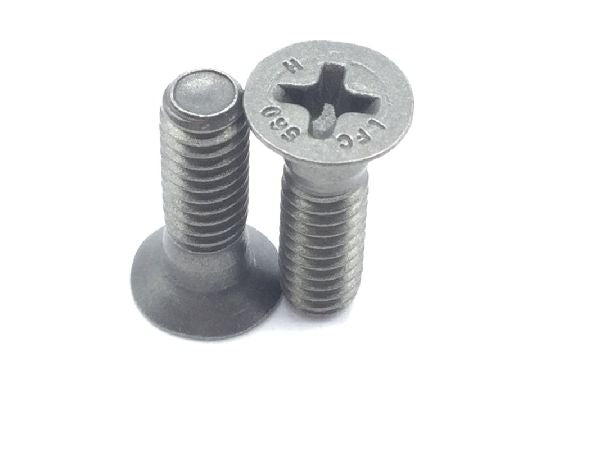

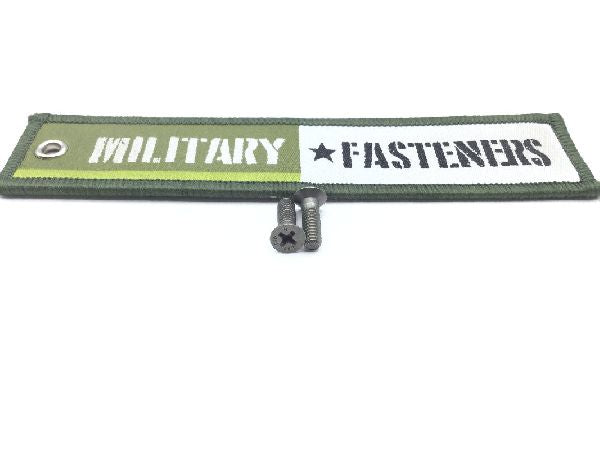

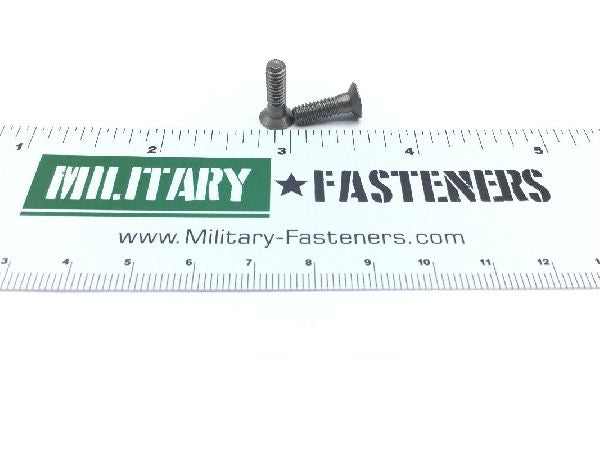

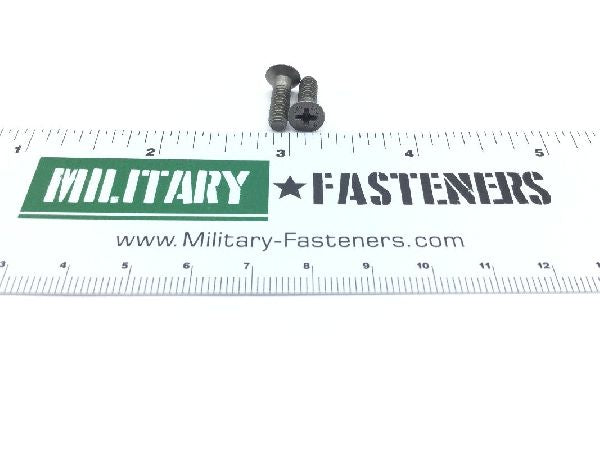

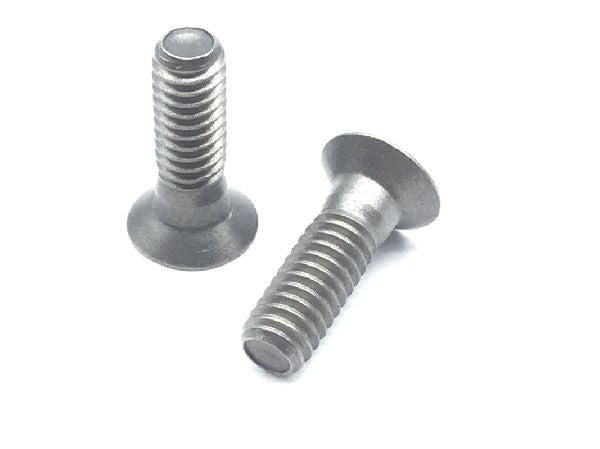

NAS560HK2-2 Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $2.85

Units per Pack 25

Price per Pack $71.25

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $71.25

Add item to quote

Head Style

Flat countersunk

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 0.520 inches and 0.565 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 140000 pounds per square inch
Screw Material Specification: Ams 5733 assn standard 1st material response or ams 5732 assn standard 2nd material response
Specification Data: 80205-nas560 professional/industrial association standard
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: Between 0.380 inches and 0.455 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.287 inches and 0.334 inches
