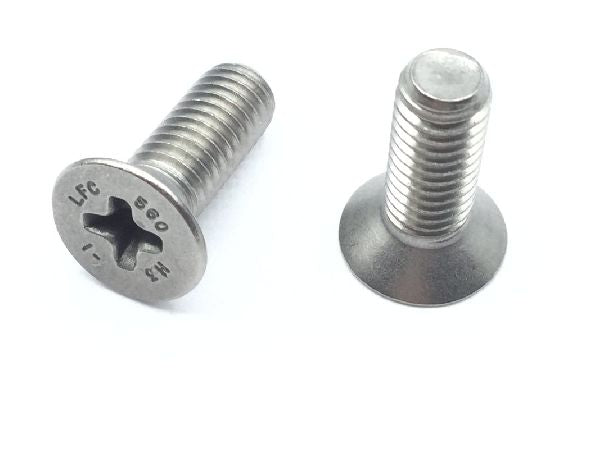

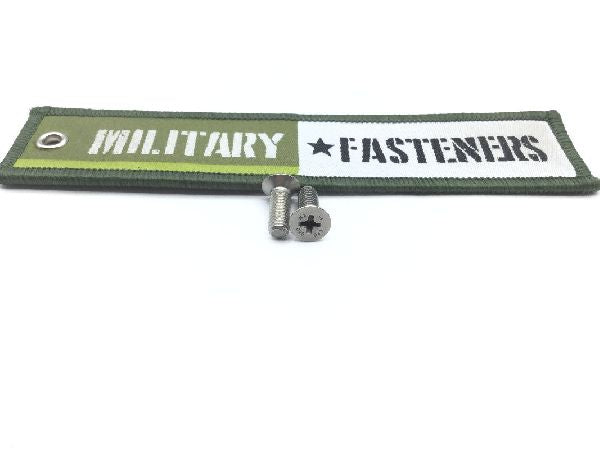

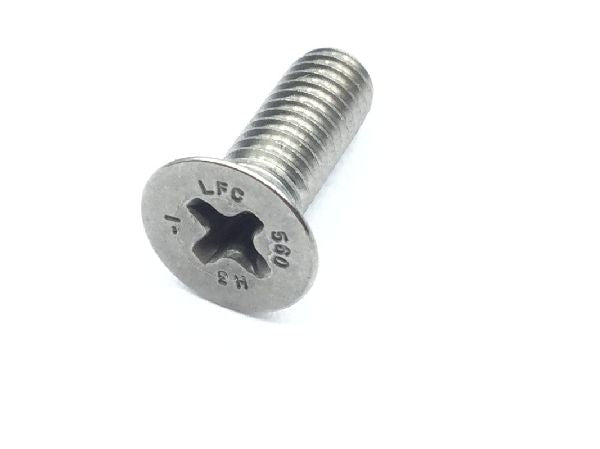

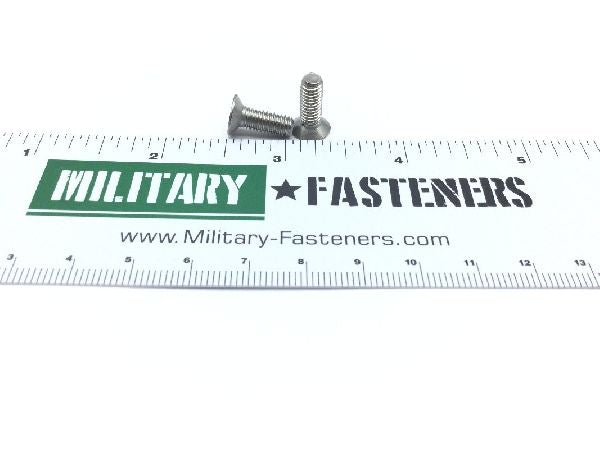

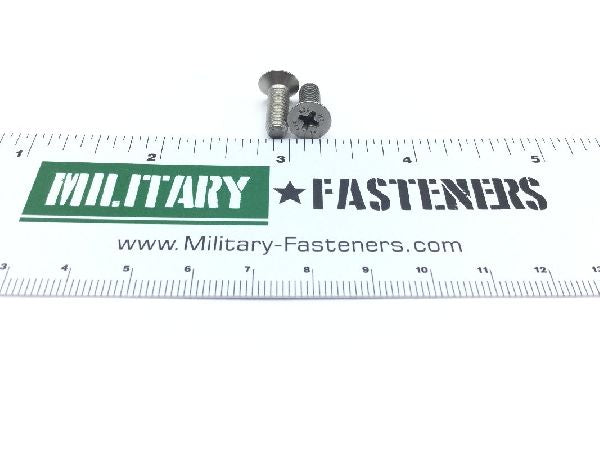

NAS560HK3-1 Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $1.10

Units per Pack 25

Price per Pack $27.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $27.50

Add item to quote

Head Style

Flat countersunk

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 0.511 inches and 0.556 inches
Hardness Rating: Between 248.0 brinell standard and 321.0 rockwell superficial 15-n
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 140000 pounds per square inch
Screw Material: Iron alloy 660
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.494 inches and 0.556 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.337 inches and 0.387 inches
