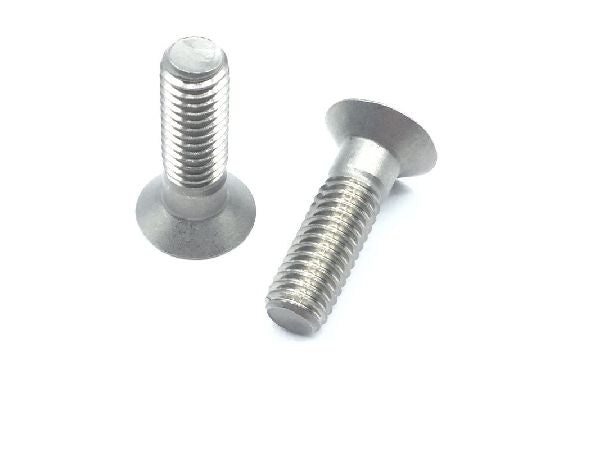

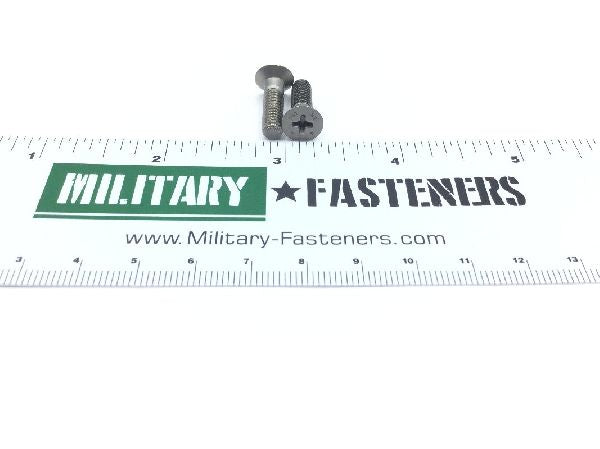

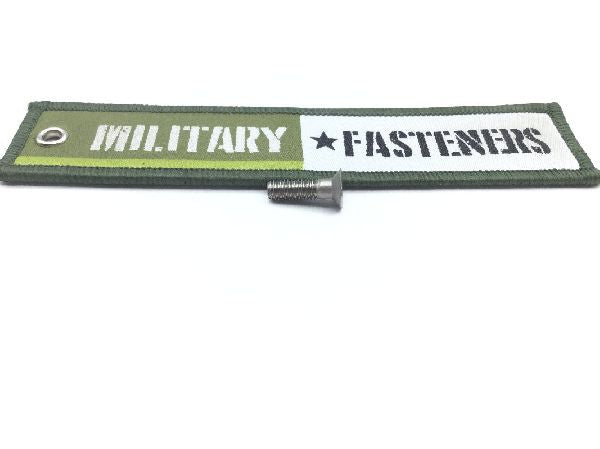

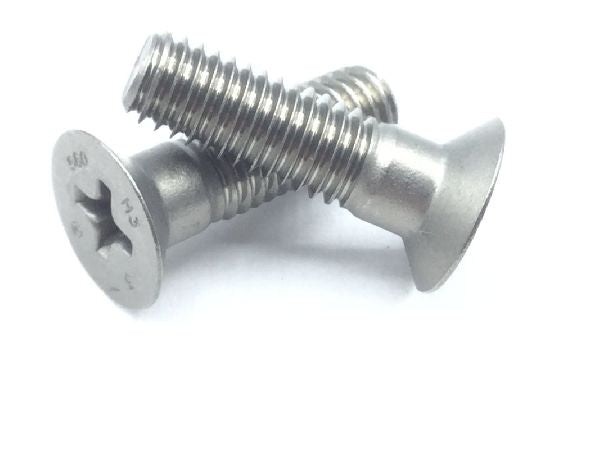

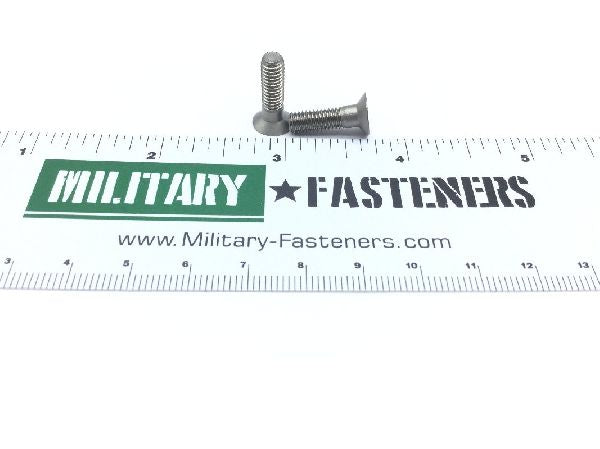

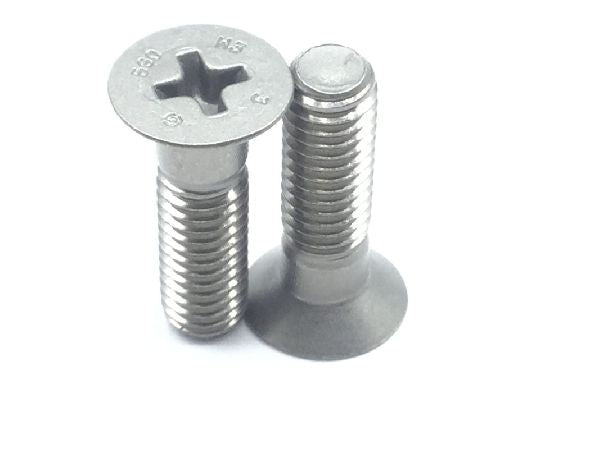

NAS560HK3-3 Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $1.39

Units per Pack 25

Price per Pack $34.75

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $34.75

Add item to quote

Head Style

Flat countersunk

Material

Iron alloy 660

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 0.636 inches and 0.681 inches
Hardness Rating: Between 248.0 brinell standard and 321.0 brinell standard
Internal Drive Style: Cross recess type 1
Material Specification: Ams 5732 assn standard 1st material response or ams 5733 assn standard 2nd material response
Min. Tensile Strength (psi): 140000 pounds per square inch
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.371 inches and 0.508 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.337 inches and 0.387 inches
