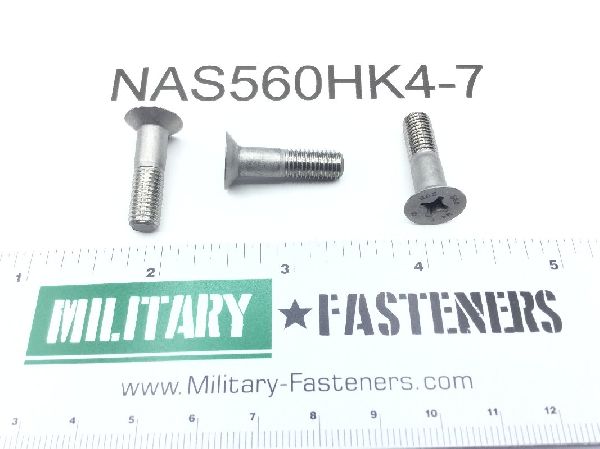

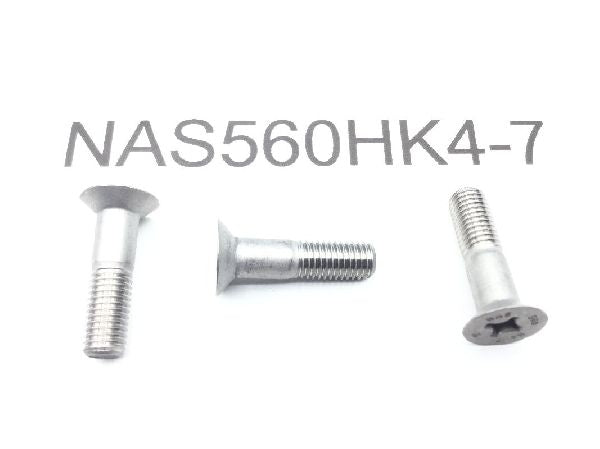

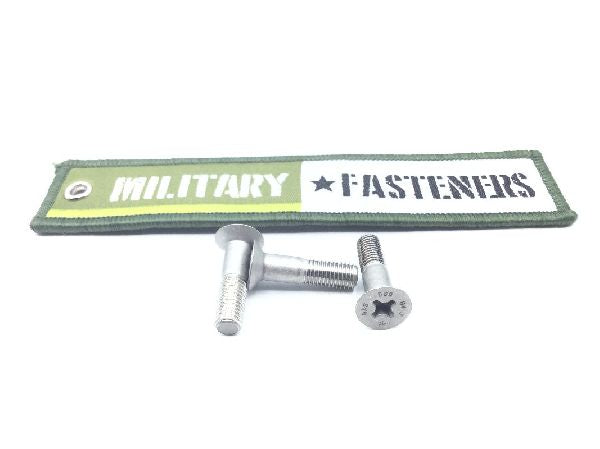

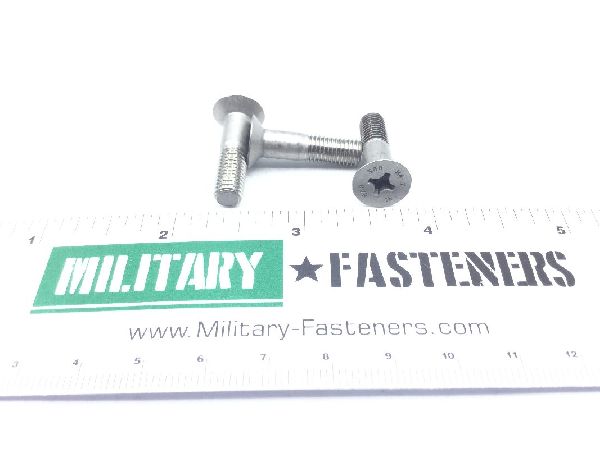

NAS560HK4-7 Machine Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $5.63

Units per Pack 10

Price per Pack $56.30

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $56.30

Add item to quote

Head Style

Flat countersunk

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 0.949 inches and 0.994 inches
Hardness Rating: Between 248.0 brinell standard and 341.0 brinell standard
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 140000 pounds per square inch
Screw Material: Iron alloy 660
Screw Material Specification: Ams assn standard all material responses
Specification Data: 80205-nas560 professional/industrial association standard
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.496 inches and 0.571 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.452 inches and 0.510 inches
