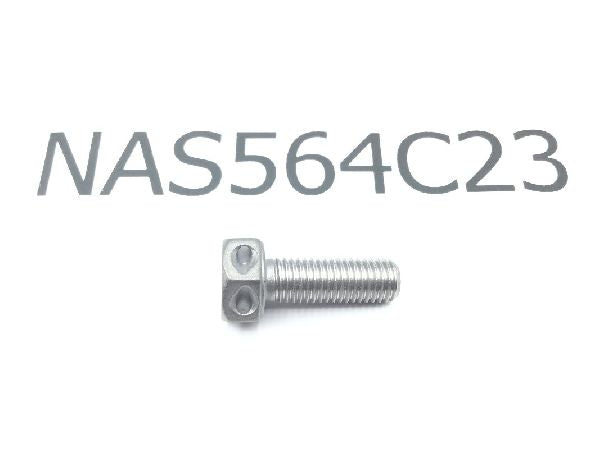

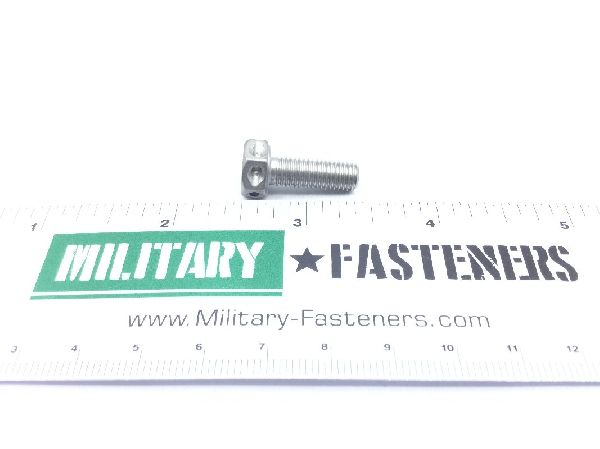

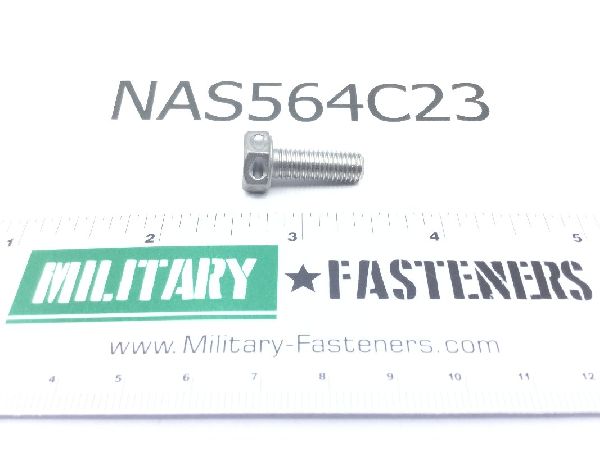

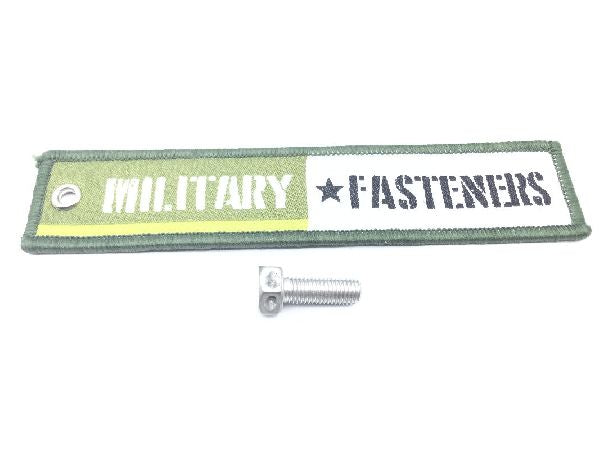

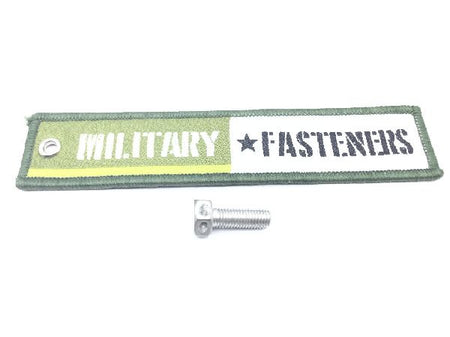

NAS564C23 Machine Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $41.51

Units per Pack 1

Price per Pack $41.51

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $41.51

Add item to quote

Head Style

Hexagon

Material

Steel

Thread Class

Fastener Length: 0.719 inches
Head Height: 0.219 inches
Hole Configuration Style: Hexagon perpendicular
Hole Quantity: 6
Hole Type: Drilled
Thread Diameter: 0.230 inches
Thread Direction: Right-hand
Thread Length: 0.659 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: 0.438 inches
Hole Diameter: 0.070 inches
