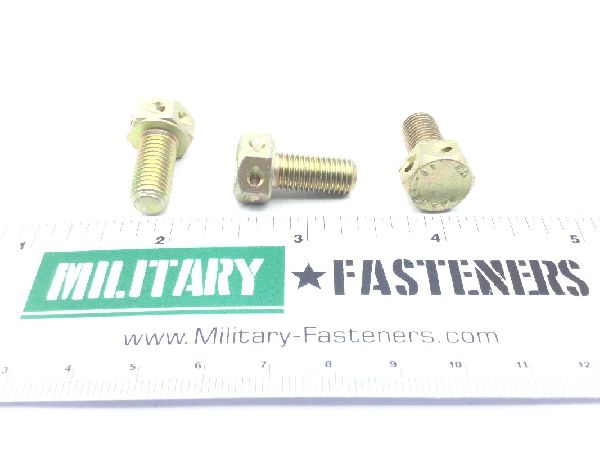

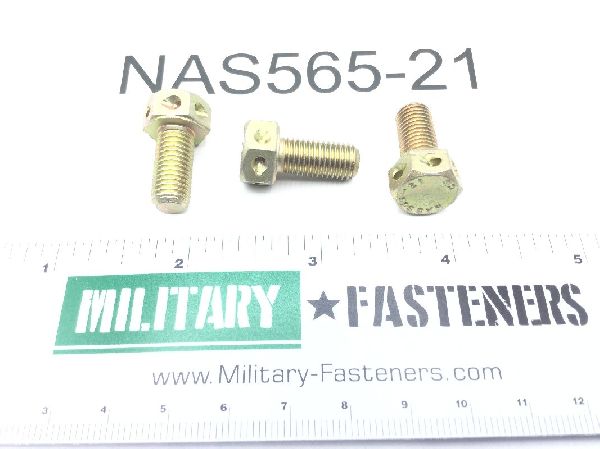

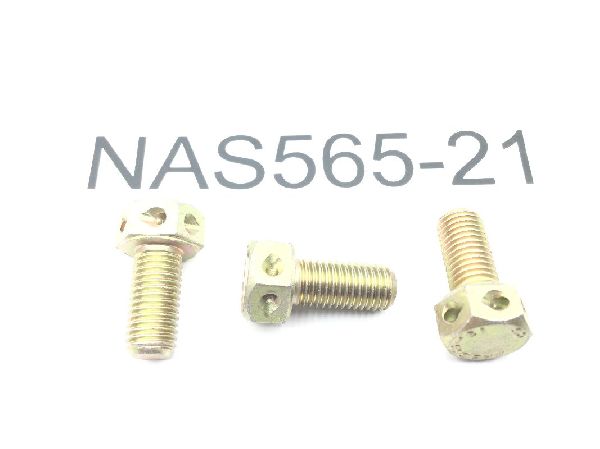

NAS565-21 Machine Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $5.47

Units per Pack 10

Price per Pack $54.70

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $54.70

Add item to quote

Head Style

Hexagon

Material

Steel

Surface Treatment

Qq-p-416 type 2 class 3 federal specification all treatment responses

Thread Class

Fastener Length: 0.656 inches
Features: Finished head
Features Provided: Finished head
Grip Length: Between 0.030 inches and 0.060 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Head Height: 0.281 inches
Hole Configuration Style: Hexagon longitudinal hole
Hole Quantity: 6
Hole Type: Drilled
Material Specification: Mil-b-6812 military specification all material responses
Min. Tensile Strength (psi): 160000 pounds per square inch
Thread Diameter: 0.312 inches
Thread Direction: Right-hand
Thread Length: Between 0.596 inches and 0.626 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unf (fine thread)
Width Between Flats: 0.500 inches
Hole Diameter: 0.070 inches
