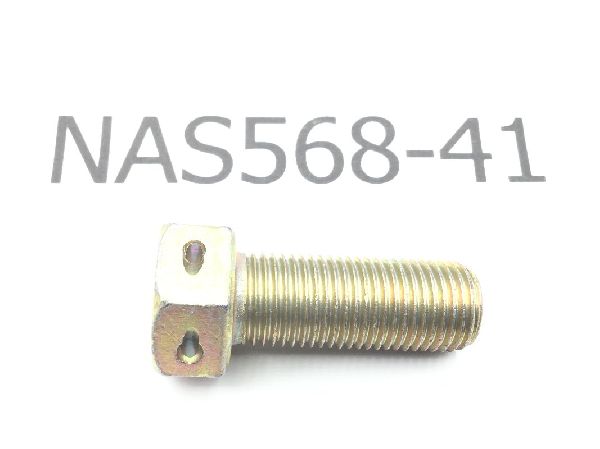

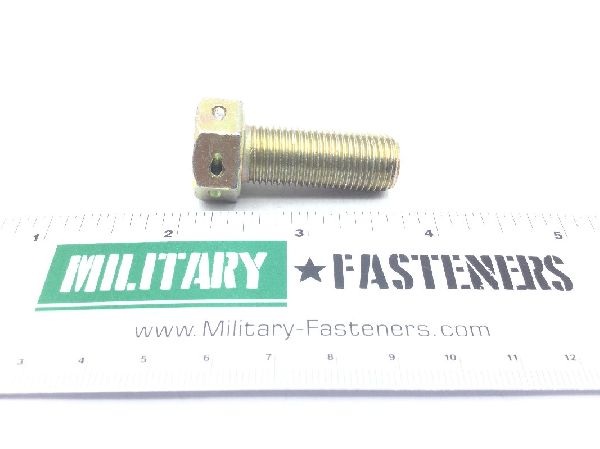

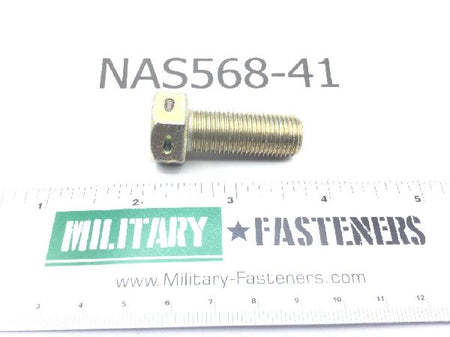

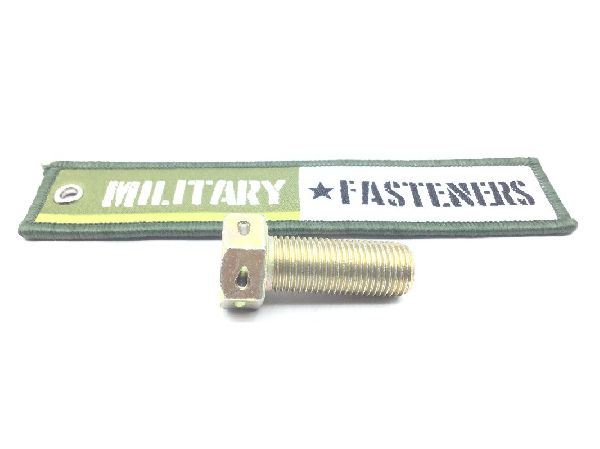

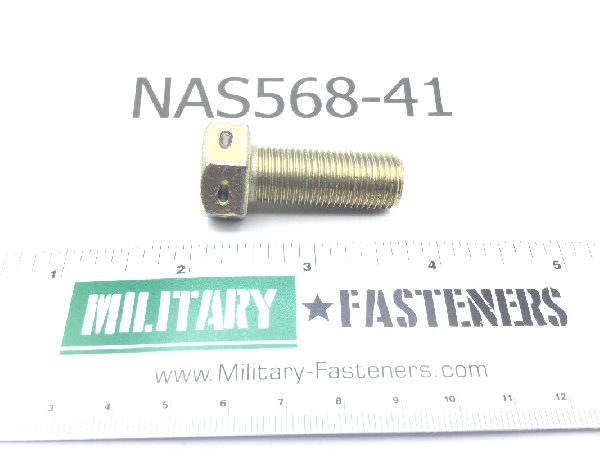

NAS568-41 Machine Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $34.44

Units per Pack 1

Price per Pack $34.44

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $34.44

Add item to quote

Head Style

Undercut hexagon

Material

Steel comp 4140 or steel comp 8740 or steel comp 8630 or steel comp 8735 or steel comp 4130 or steel comp 4037

Surface Treatment

Qq-p-416 type 2 cl 2 federal specification single treatment response

Thread Class

Fastener Length: Between 1.265 inches and 1.312 inches
Grip Length: Between 0.030 inches and 0.060 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Head Height: 0.375 inches
Hole Configuration Style: Hexagon flats
Hole Quantity: 3
Hole Type: Drilled
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas568 professional/industrial association standard
Thread Diameter: 0.500 inches
Thread Direction: Right-hand
Thread Length: Between 1.205 inches and 1.282 inches
Thread Qty Per Inch (tpi): 20
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.740 inches and 0.752 inches
Hole Diameter: Between 0.070 inches and 0.080 inches
