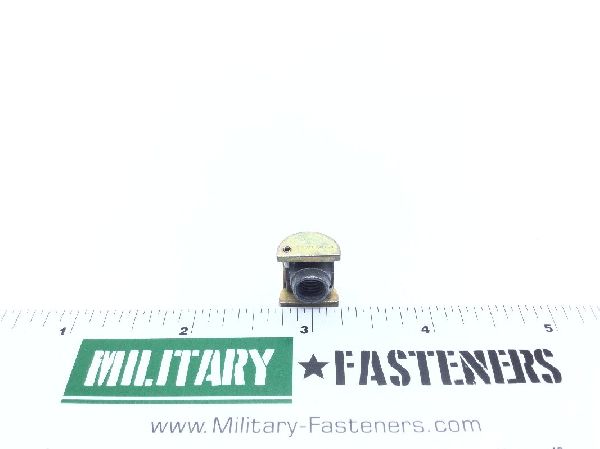

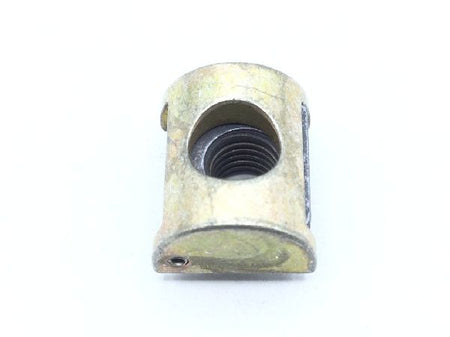

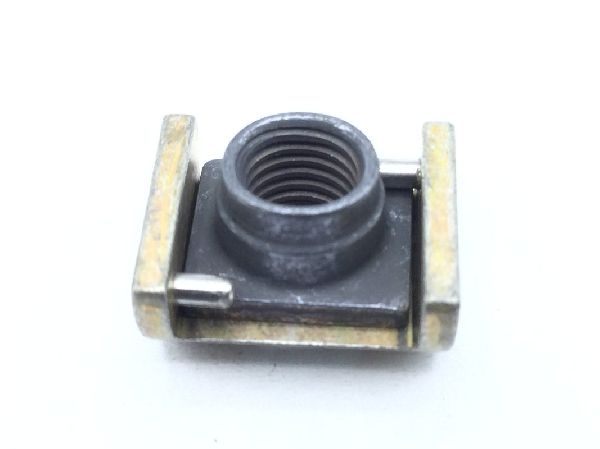

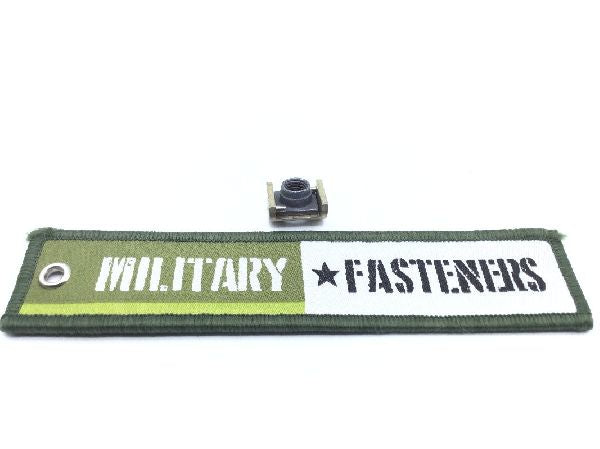

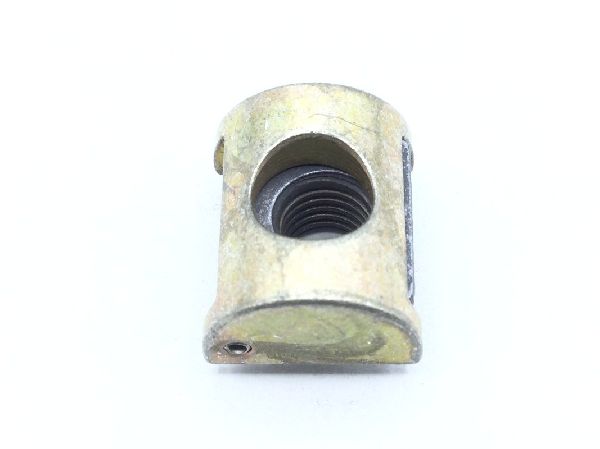

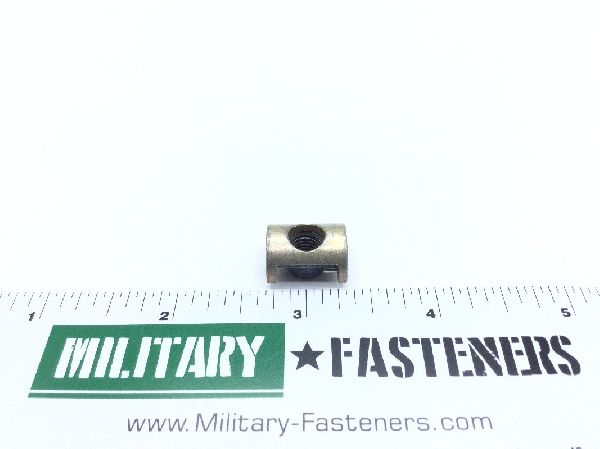

NAS577B4A Self-Locking Barrel Nut

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Barrel Height: Between 0.310 inches and 0.320 inches
Features: Floating nut
Features Provided: Floating nut
Locking Feature: Prevailing torque all metal design
Material Specification: Ams 6322 assn standard 1st material response or mil-s-6049 military specification 1st material response or mil-s-8844 military specification 2nd material response
Nut Diameter: Between 0.525 inches and 0.528 inches
Nut Height: 0.406 inches
Nut Length: Between 0.615 inches and 0.635 inches
Nut Style: Floating self-locking barrel
Specification Data: 80205-nas577 professional/industrial association standard
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 28
Lubrication: Dry film lubricant
