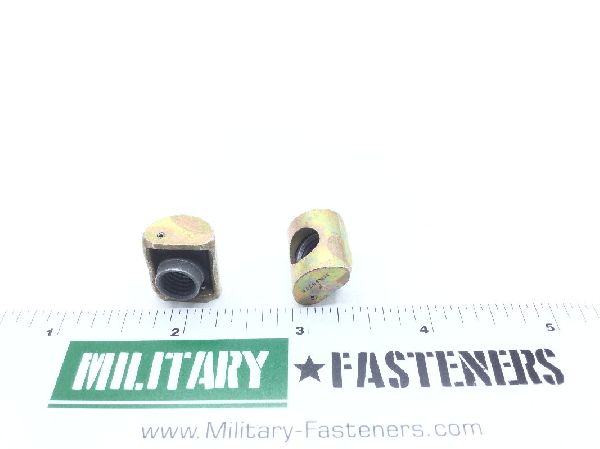

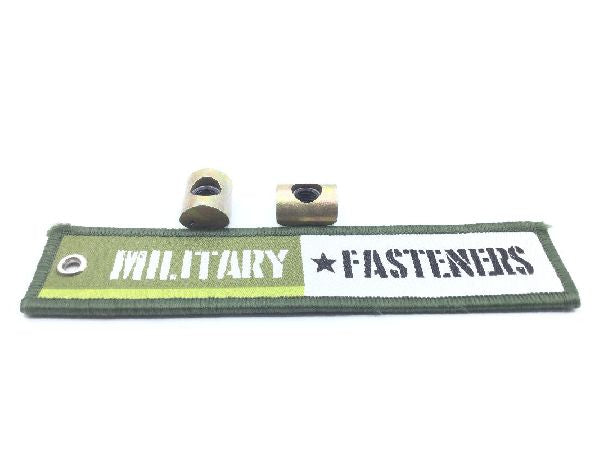

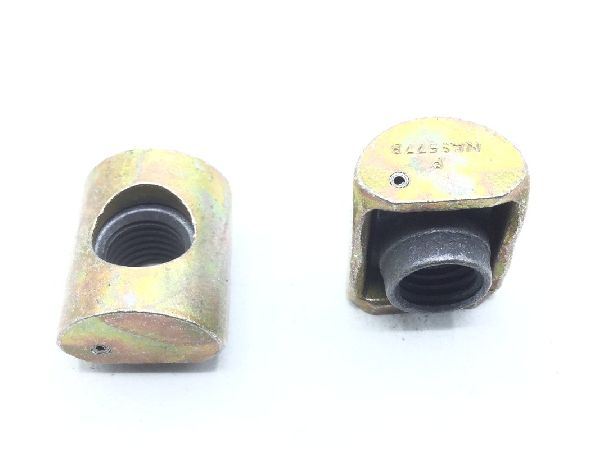

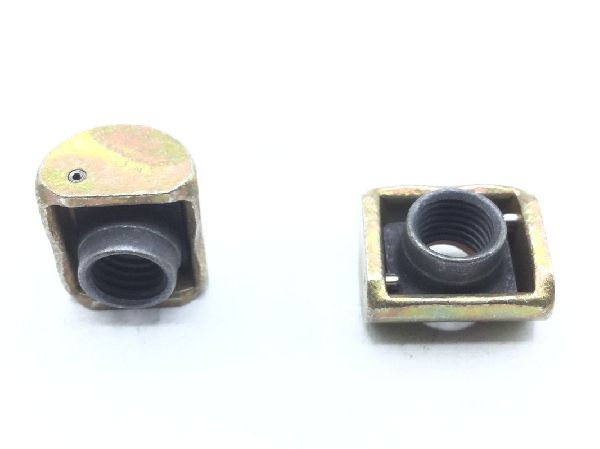

NAS577B5A Self-Locking Barrel Nut

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0000

Price per Unit $75.60

Units per Pack 1

Price per Pack $75.60

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $75.60

Add item to quote

Material

Steel

Surface Treatment

Qq-p-416 federal specification single treatment response

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.312 inches

Barrel Height: Between 0.350 inches and 0.360 inches
Counterbore Diameter: 0.344 inches nut and 0.354 inches nut
Features: Floating nut
Features Provided: Floating nut
Hardness Rating: Between 36.0 rockwell c and 43.0 rockwell c
Locking Feature: Prevailing torque all metal design
Material Specification: Mil-s-5626 military specification 1st material response nut or mil-s-6049 military specification 2nd material response nut or mil-s-5000 military specification 3rd material response nut
Nut Counterbore Depth: 0.120 inches nut and 0.130 inches nut
Nut Diameter: Between 0.587 inches and 0.590 inches
Nut Height: 0.468 inches
Nut Length: Between 0.678 inches and 0.698 inches
Nut Style: Floating self-locking barrel
Specification Data: 80205-nas577 professional/industrial association standard
Tempurature Rating: 450.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 24
Lubrication: Dry film lubricant
