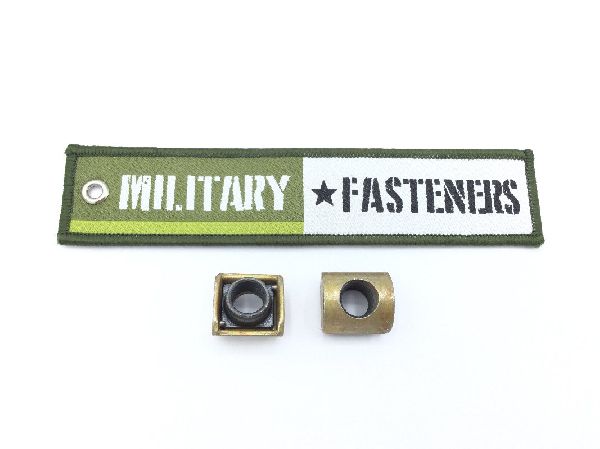

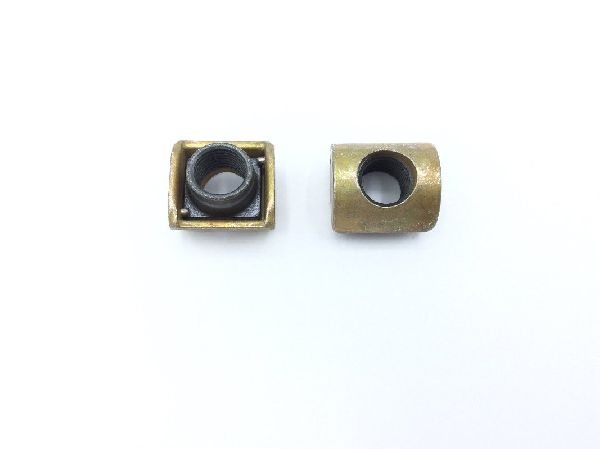

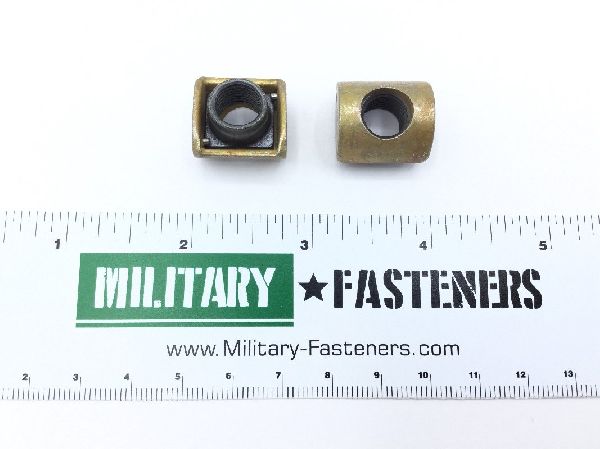

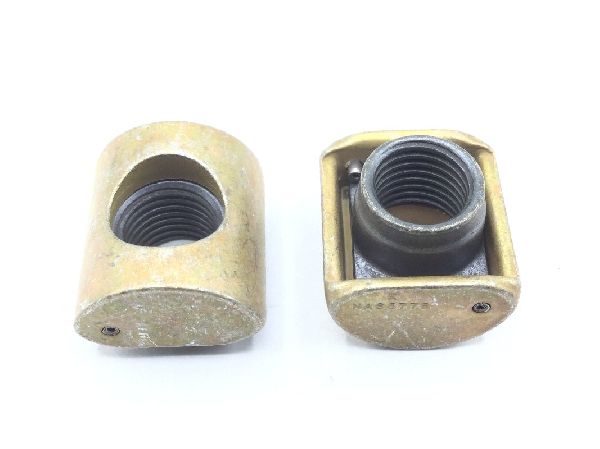

NAS577B6A Self-Locking Barrel Nut

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel

Surface Treatment

Cl 2 federal specification single treatment response type 2 qq-p-416

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.375 inches

Barrel Height: Between 0.410 inches and 0.420 inches
Features: Floating nut
Features Provided: Floating nut
Locking Feature: Prevailing torque all metal design
Material Specification: Cl 1 military specification 2nd material response mil-s-6049 military specification 1st material response or ams 6322 assn standard 1st material response or mil-s-8844
Nut Diameter: Between 0.681 inches and 0.684 inches
Nut Height: 0.531 inches
Nut Length: Between 0.740 inches and 0.760 inches
Nut Style: Floating self-locking barrel
Specification Data: 80205-nas577 professional/industrial association standard
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 24
Lubrication: Dry film lubricant
