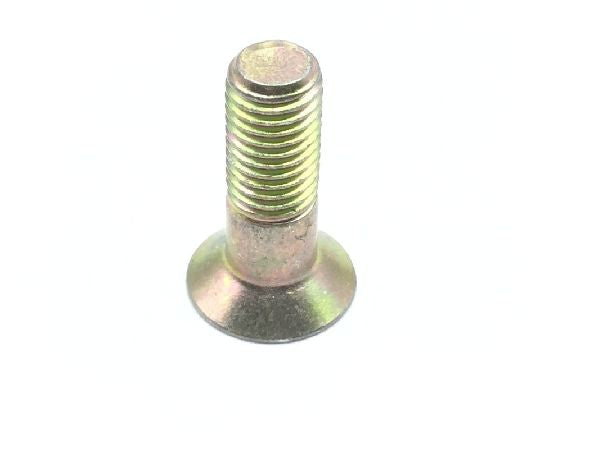

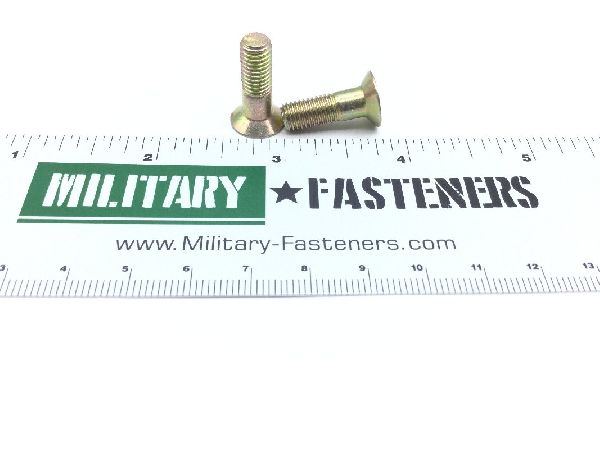

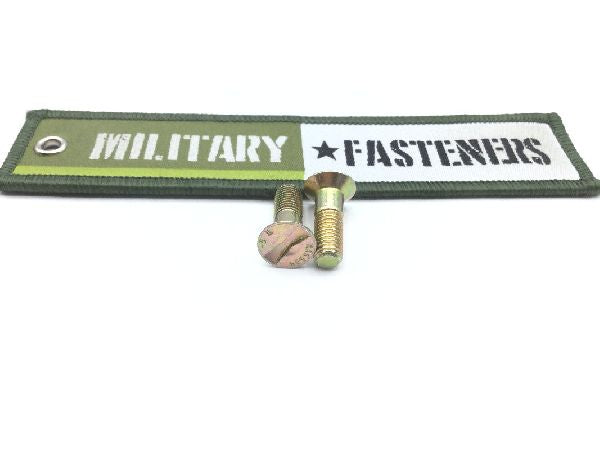

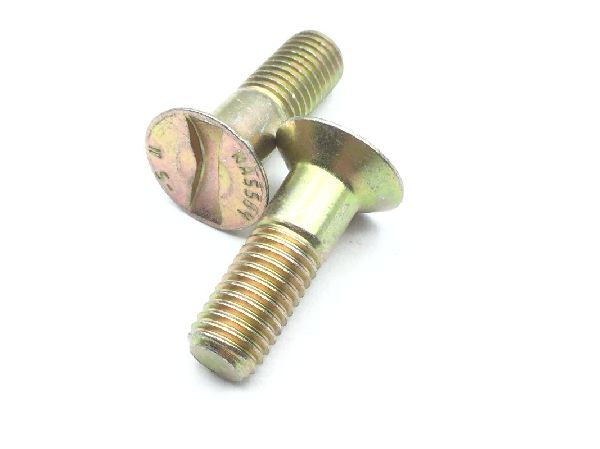

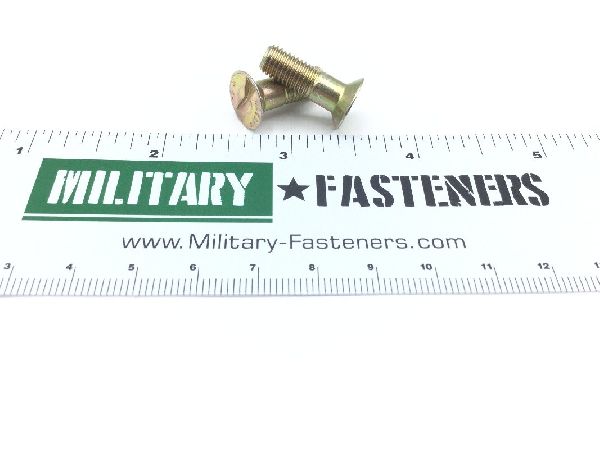

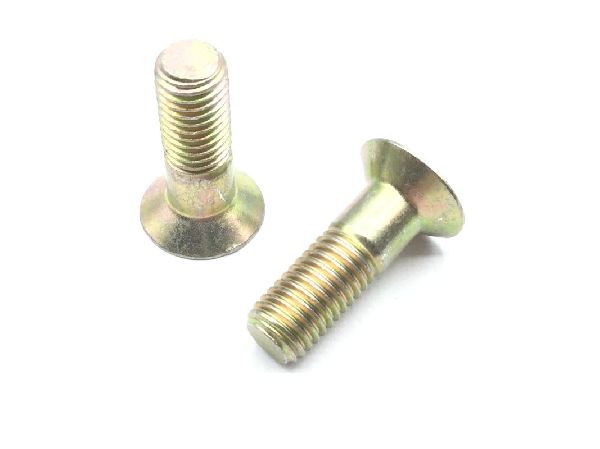

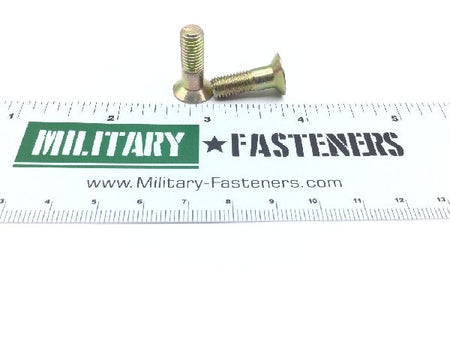

NAS584-5 Close Tolerance Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $0.35

Units per Pack 100

Price per Pack $35.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $35.00

Add item to quote

Head Style

Flat countersunk

Material

Steel

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 0.765 inches and 0.812 inches
Grip Diameter: Between 0.2485 inches and 0.2495 inches
Grip Length: 0.312 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Internal Drive Style: High-torque
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas584 professional/industrial association standard
Surface Finish: 32.0 microinches grip
Thread Diameter: 0.25 inches
Thread Direction: Right-hand
Thread Length: 0.469 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.502 inches and 0.507 inches
