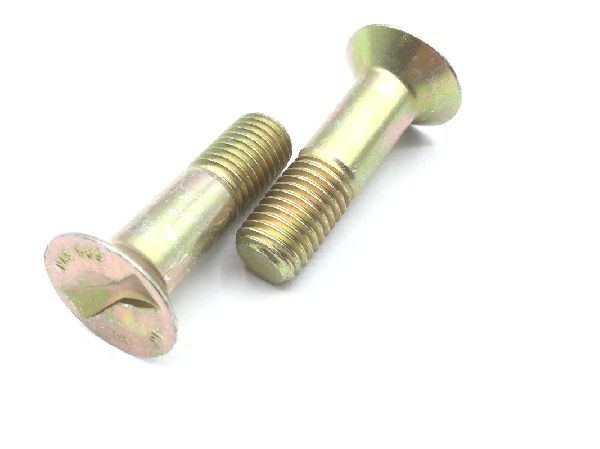

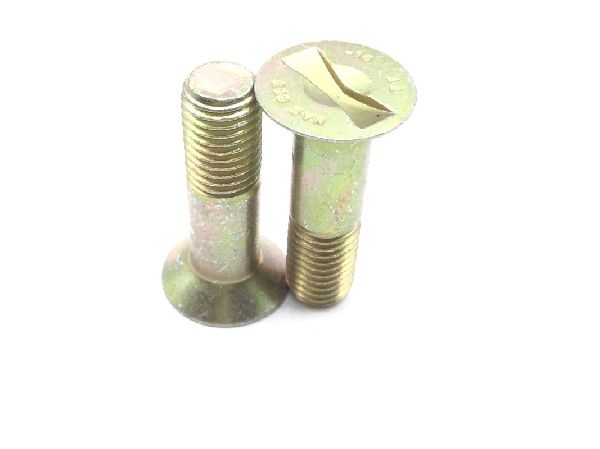

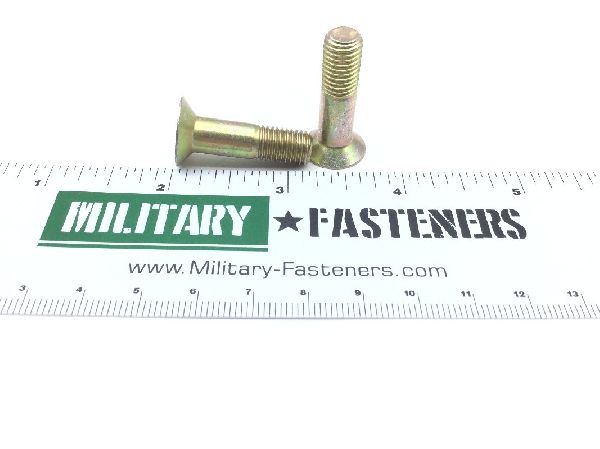

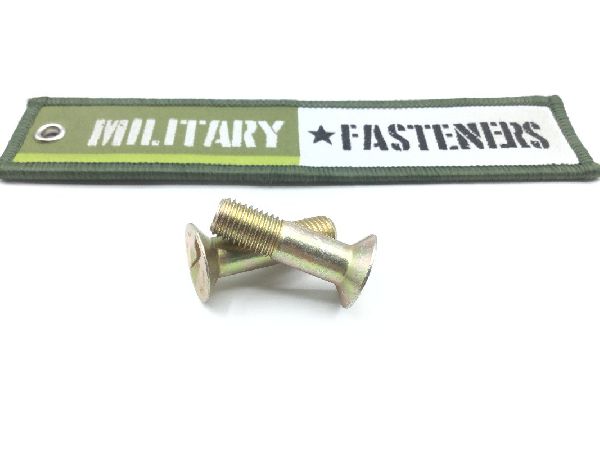

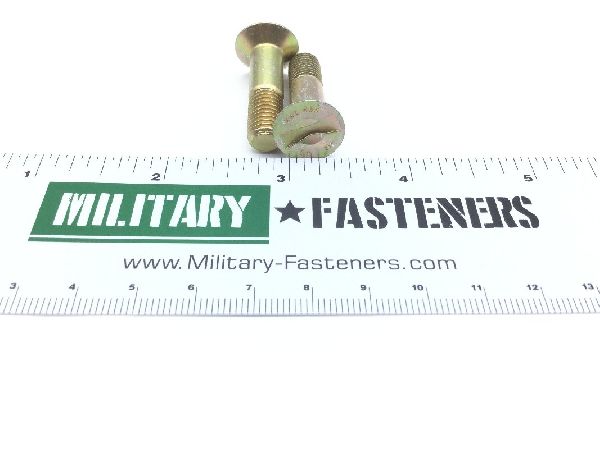

NAS585-10 Close Tolerance Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $4.85

Units per Pack 10

Price per Pack $48.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $48.50

Add item to quote

Head Style

Flat countersunk

Material

Steel comp 4140 or steel comp e4340 or steel comp 6150 or steel comp 8735 or steel comp 8740 or steel comp 4130

Surface Treatment

Qq-p-416 type 2 cl 3 federal specification single treatment response

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 1.140 inches and 1.187 inches
Grip Diameter: Between 0.3110 inches and 0.3120 inches
Grip Length: 0.625 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Internal Drive Style: High-torque
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas585 professional/industrial association standard
Surface Finish: 32.0 microinches threads
Thread Diameter: 0.312 inches
Thread Direction: Right-hand
Thread Length: 0.531 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.629 inches and 0.633 inches
