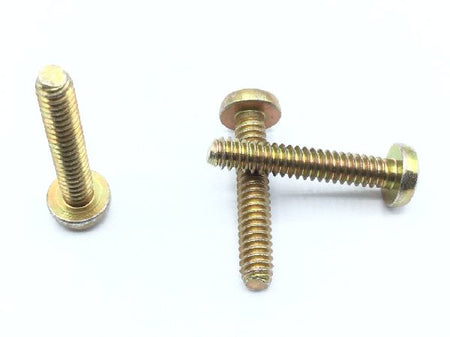

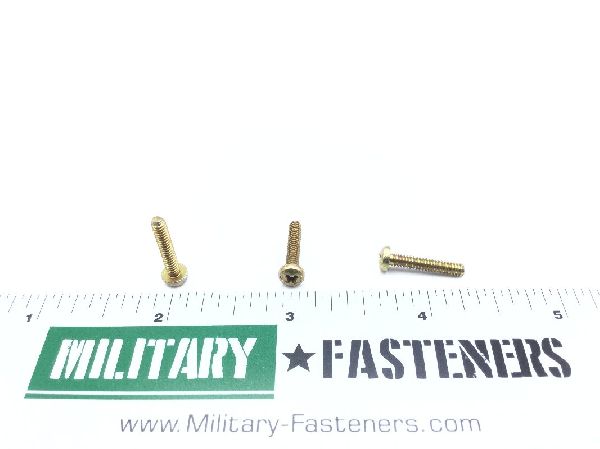

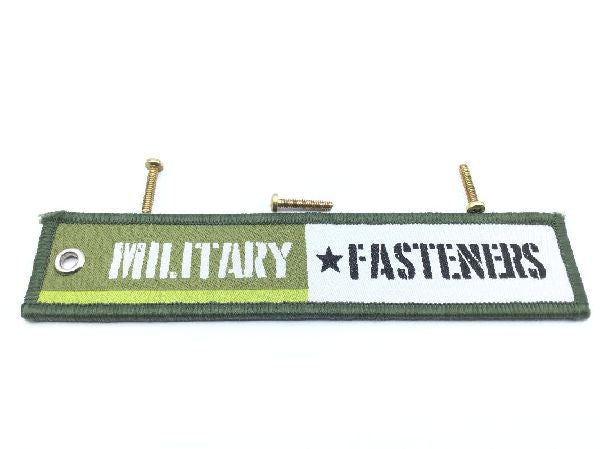

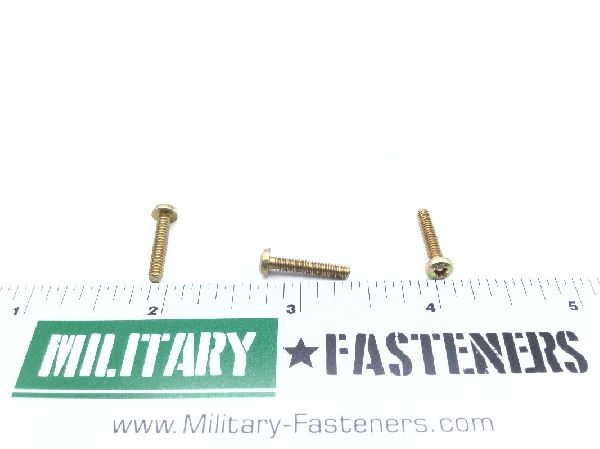

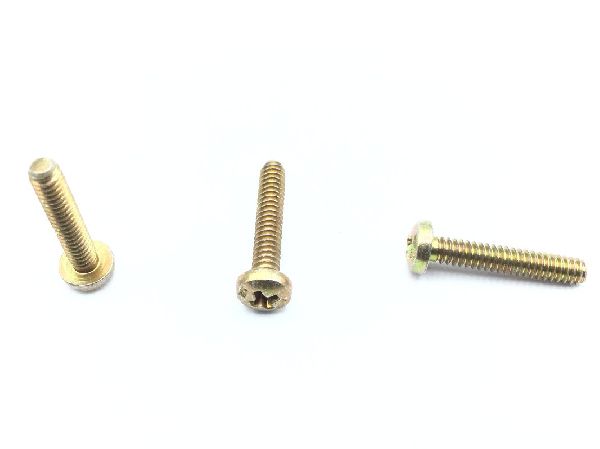

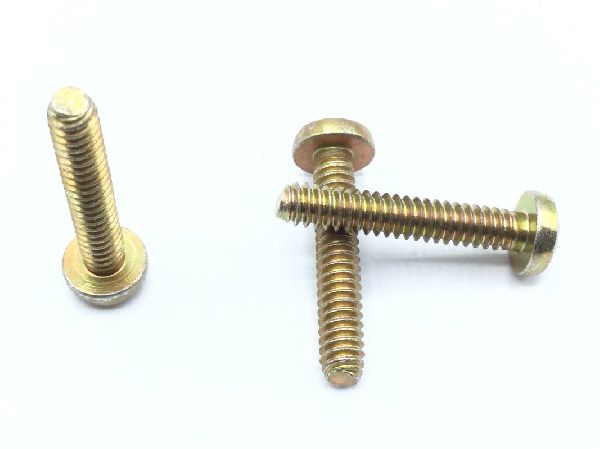

NAS600-10P Machine Screw
- NSN
- 5305-00-840-5301
- Product Series
- NAS
- ECCN
- EAR99
- Schedule
- 7318.15.9000
Unit of Measure:
EA
Add to Quote
We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.
Add to QuoteCouldn't load pickup availability
- Fastener Length
- 0.625 inches
- Hardness Rating
- Between 36.0 rockwell c and 40.0 rockwell c
- Head Height
- Between 0.070 inches and 0.080 inches
- Internal Drive Style
- Cross recess type 1
- Material Specification
- Mil-s-6050 military specification single material response or an-s-9 military standard single material response
- Min. Tensile Strength (psi)
- 160000 pounds per square inch
- Specification Data
- 80205-nas600 professional/industrial association standard
- Thread Diameter
- 0.112 inches
- Thread Direction
- Right-hand
- Thread Length
- Between 0.575 inches and 0.625 inches
- Thread Qty Per Inch (tpi)
- 40
- Thread Series Designator
- Unc (coarse thread)
- Head Diameter
- Between 0.205 inches and 0.219 inches
