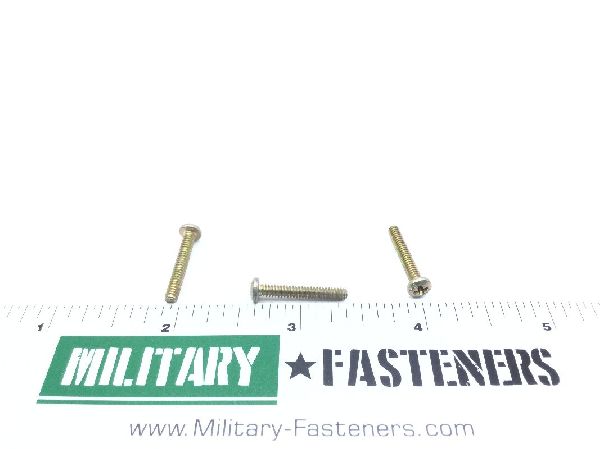

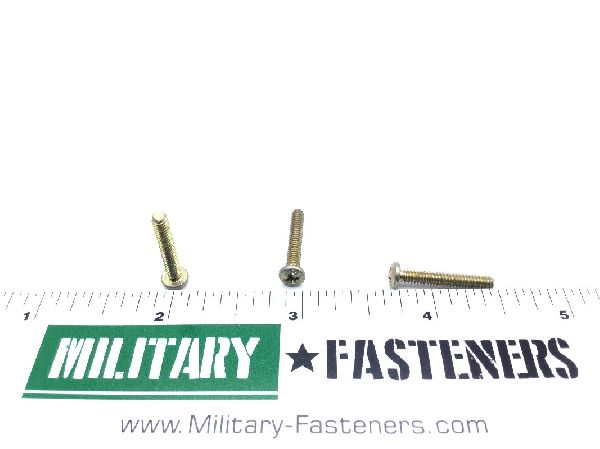

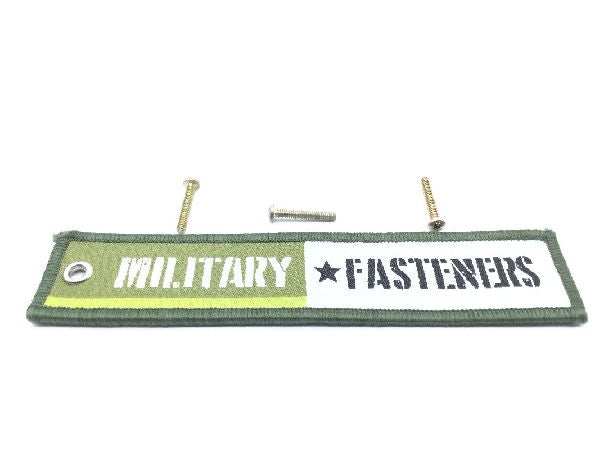

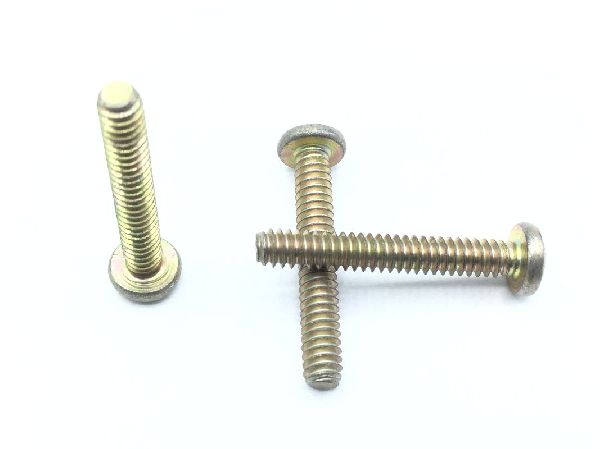

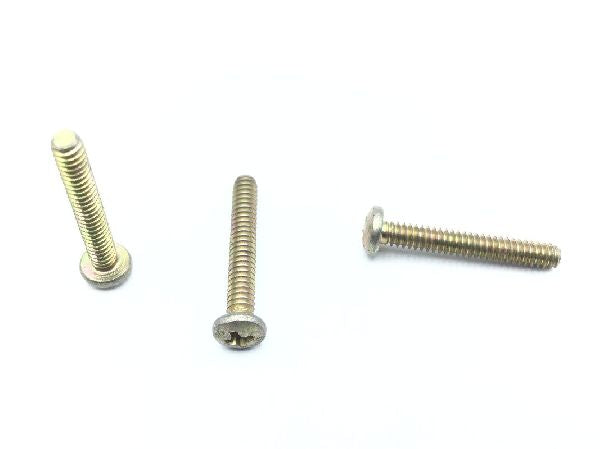

NAS600-12P Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Pan

Thread Class

Fastener Length: Between 0.720 inches and 0.750 inches
Hardness Rating: Between 36.0 rockwell c and 40.0 rockwell c
Head Height: Between 0.070 inches and 0.080 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 160000 pounds per square inch
Screw Material: Steel comp 4140 or steel comp e4340 or steel comp 8740
Screw Surface Treatment: Cadmium
Screw Surface Treatment Specification: Cl 2 federal specification single treatment response type 1 qq-p-416
Specification Data: 80205-nas600 professional/industrial association standard
Thread Diameter: 0.112 inches
Thread Direction: Right-hand
Thread Length: Between 0.670 inches and 0.750 inches
Thread Qty Per Inch (tpi): 40
Thread Series Designator: Unjc
Head Diameter: Between 0.205 inches and 0.219 inches
