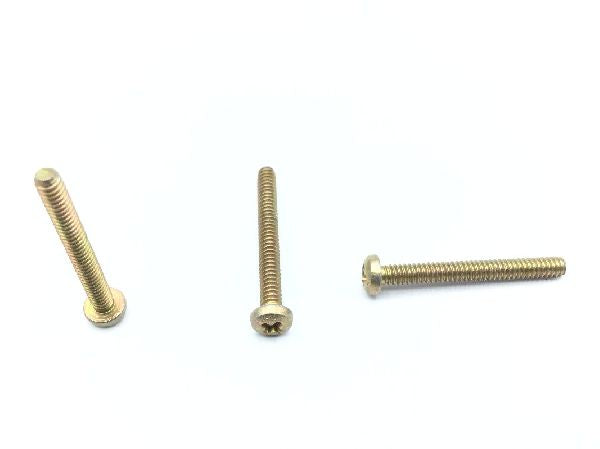

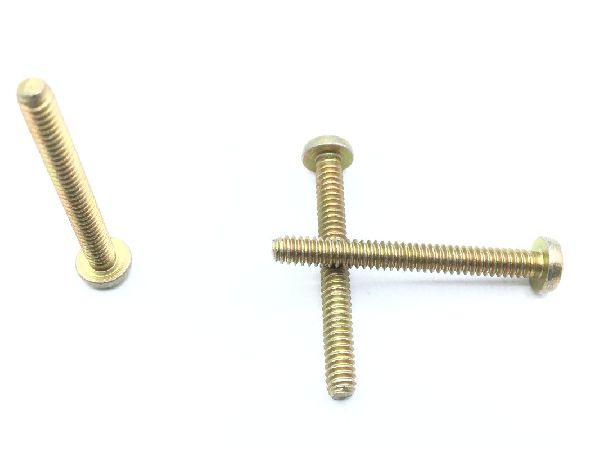

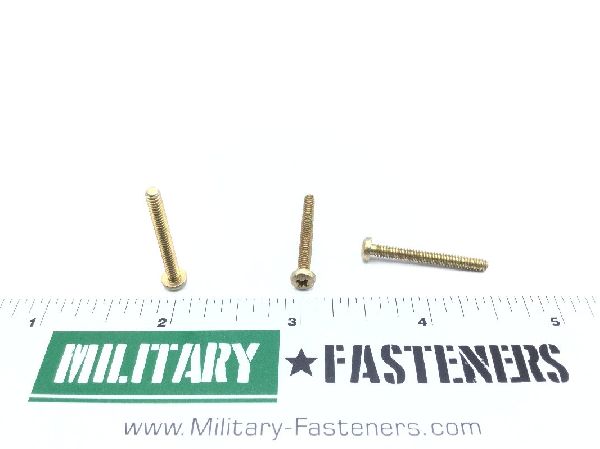

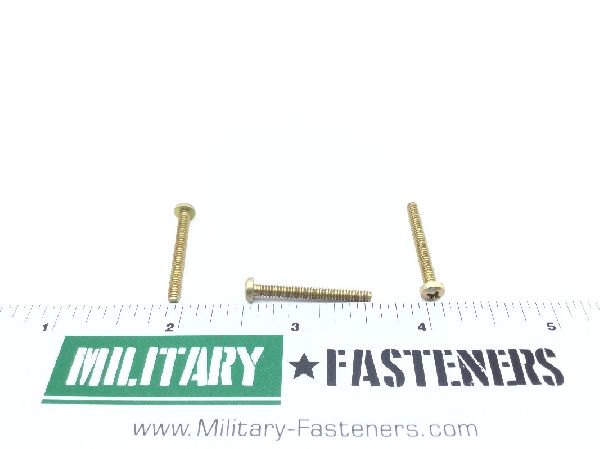

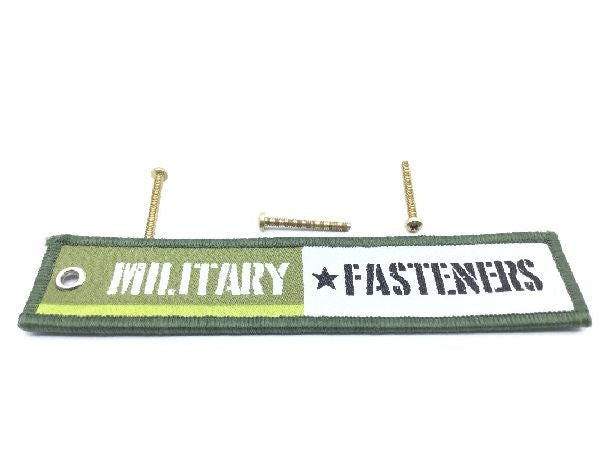

NAS600-16P Machine Screw

NSN
5305-00-637-6608
Product Series
NAS
ECCN
EAR99
Schedule
7318.15.9000
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Head Style
Pan
Thread Class
3a
Fastener Length
Between 0.970 inches and 1.000 inches
Hardness Rating
Between 36.0 rockwell c and 40.0 rockwell c
Head Height
Between 0.070 inches and 0.080 inches
Internal Drive Style
Cross recess type 1
Min. Tensile Strength (psi)
160000 pounds per square inch
Screw Material
Steel comp 4140 or steel comp e4340 or steel comp 8740
Screw Material Specification
Mil-s-5626 military specification 1st material response or mil-s-5000 military specification 2nd material response or mil-s-6049 military specification 3rd material response
Screw Surface Treatment
Cadmium
Screw Surface Treatment Specification
Cl2 federal specification single treatment response type 2 qq-p-416
Specification Data
80205-nas600 professional/industrial association standard
Thread Diameter
0.112 inches
Thread Direction
Right-hand
Thread Length
Between 0.920 inches and 1.000 inches
Thread Qty Per Inch (tpi)
40
Thread Series Designator
Unjc
Head Diameter
Between 0.205 inches and 0.219 inches
