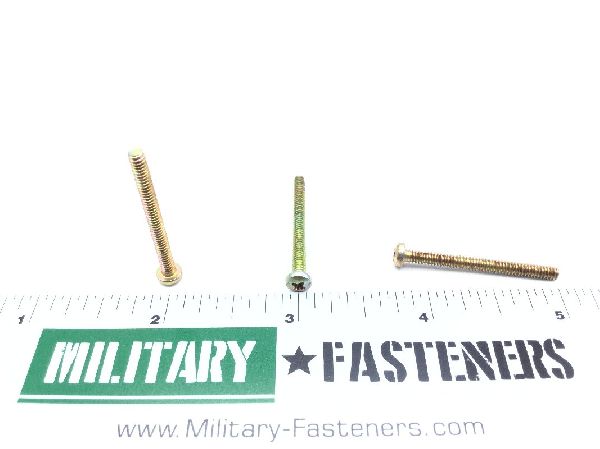

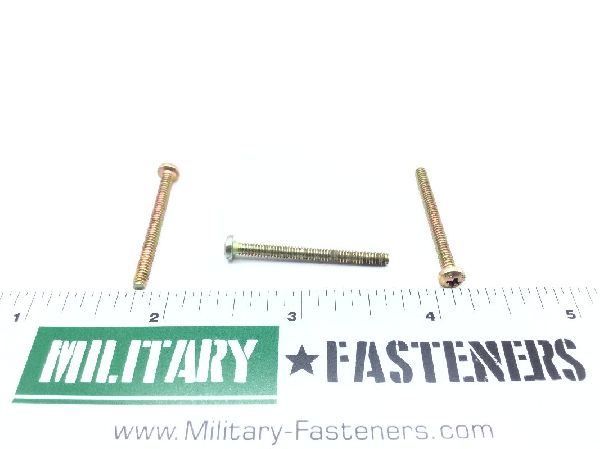

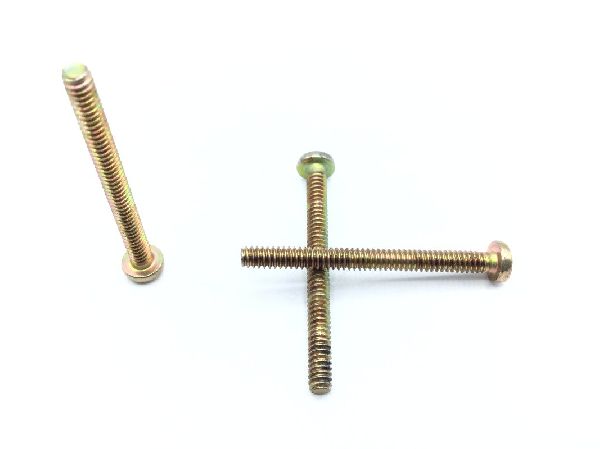

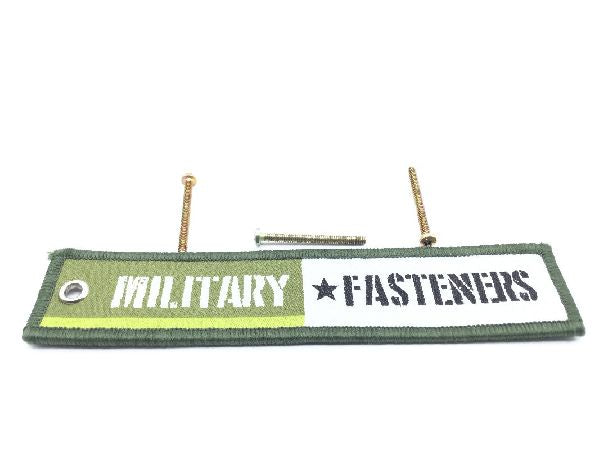

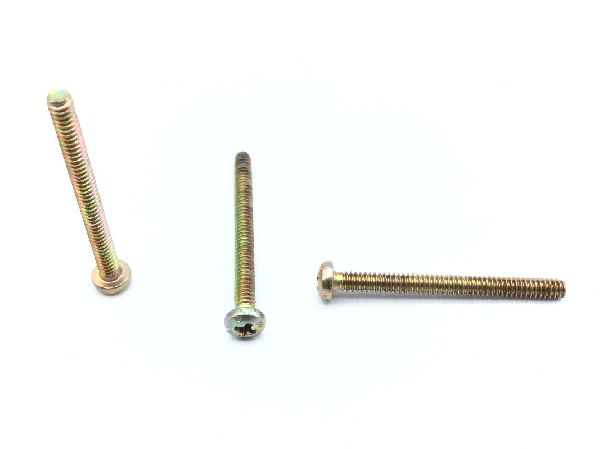

NAS600-20P Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.62

Units per Pack 100

Price per Pack $62.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $62.00

Add item to quote

Head Style

Pan

Thread Class

Fastener Length: 1.25 inches
Hardness Rating: Between 36.0 rockwell c and 40.0 rockwell c
Head Height: Between 0.07 inches and 0.08 inches
Internal Drive Style: Cross recess type 1
Material Specification: Mil-s-6050 military specification single material response or an-s-9 military standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Screw Material: Steel comp 8630
Screw Surface Treatment Specification: Type 2 cl 3 federal specification all treatment responses qq-p-416
Thread Diameter: 0.112 inches
Thread Direction: Right-hand
Thread Length: Between 1.200 inches and 1.250 inches
Thread Qty Per Inch (tpi): 40
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.205 inches and 0.219 inches
