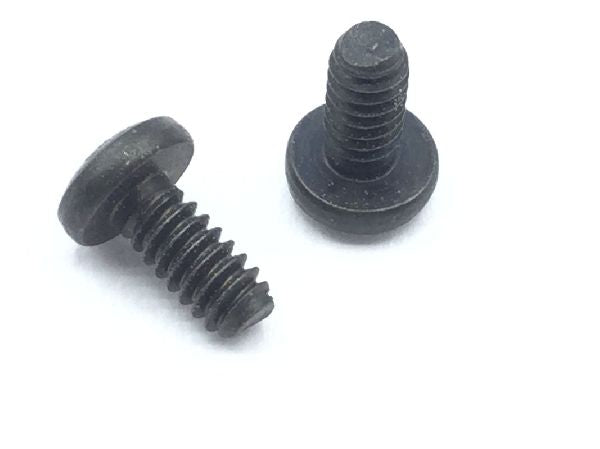

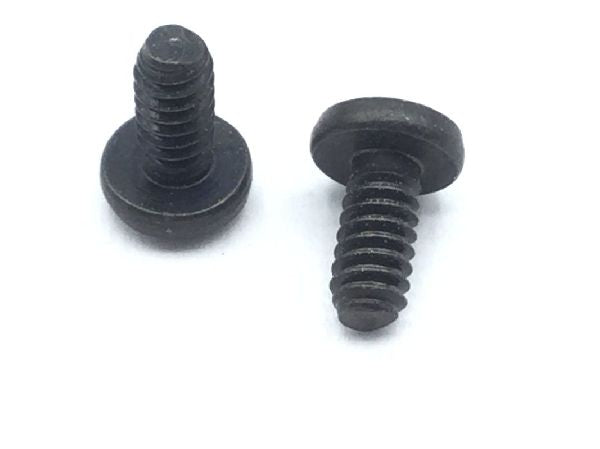

NAS600-4B Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.54

Units per Pack 100

Price per Pack $54.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $54.00

Add item to quote

Head Style

Pan

Thread Class

Color: Black
Fastener Length: Between 0.220 inches and 0.250 inches
Head Height: Between 0.070 inches and 0.080 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 160000 pounds per square inch
Screw Material: Steel comp 4037 or steel comp 8630
Screw Material Specification: Ams 6300 assn standard 1st material response or mil-s-6050 military specification 2nd material response
Screw Surface Treatment: Cadmium and chromate
Screw Surface Treatment Specification: Type 2 cl 2 federal specification single treatment response qq-p-416
Specification Data: 80205-nas600 professional/industrial association standard
Thread Diameter: 0.112 inches
Thread Direction: Right-hand
Thread Length: Between 0.170 inches and 0.250 inches
Thread Qty Per Inch (tpi): 40
Thread Series Designator: Unjc
Head Diameter: Between 0.205 inches and 0.219 inches
