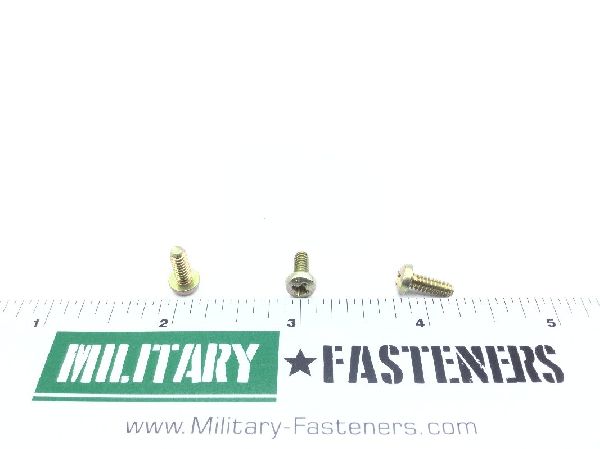

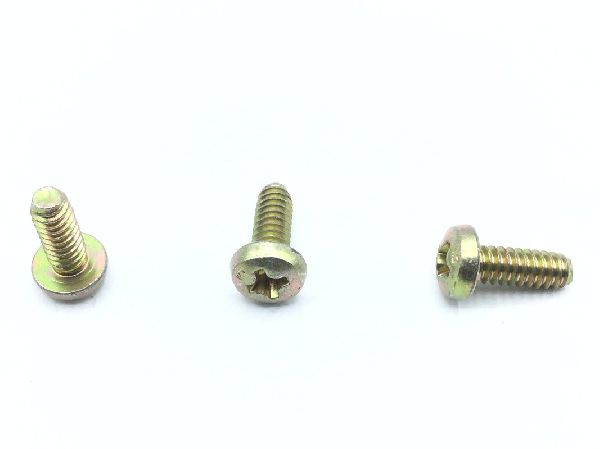

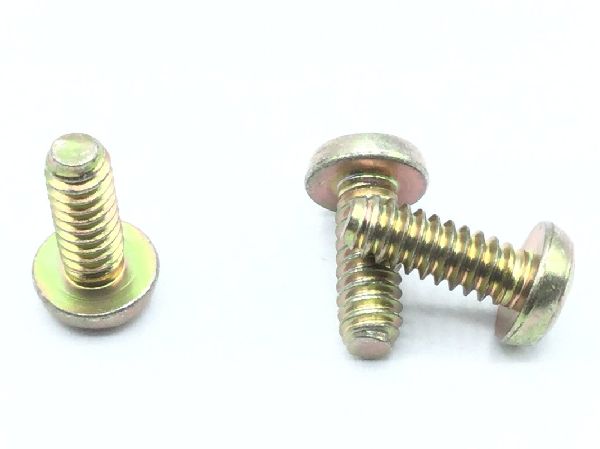

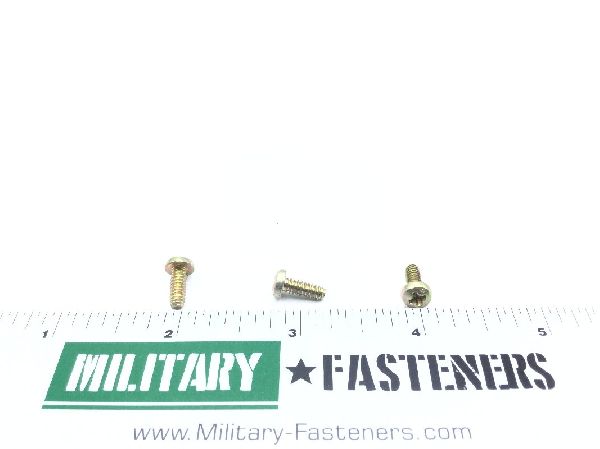

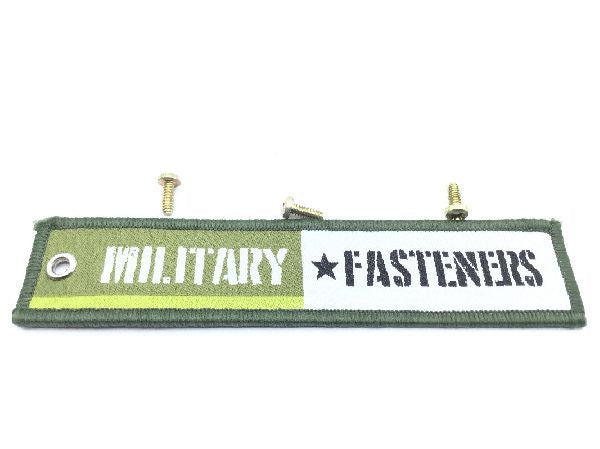

NAS601-6P Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.33

Units per Pack 100

Price per Pack $33.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $33.00

Add item to quote

Head Style

Pan

Material

Steel

Surface Treatment

Type 2 cl 2 federal specification single treatment response qq-p-416

Thread Class

Fastener Length: 0.375 inches
Hardness Rating: Between 36.0 rockwell c and 40.0 rockwell c
Head Height: Between 0.087 inches and 0.097 inches
Internal Drive Style: Cross recess type 1
Material Specification: Mil-s-6050 military specification single material response or an-s-9 military standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas601 professional/industrial association standard
Thread Diameter: 0.138 inches
Thread Direction: Right-hand
Thread Length: Between 0.313 inches and 0.375 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.256 inches and 0.270 inches
