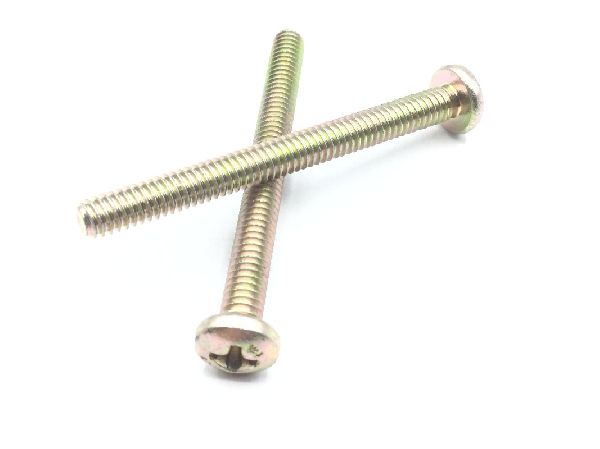

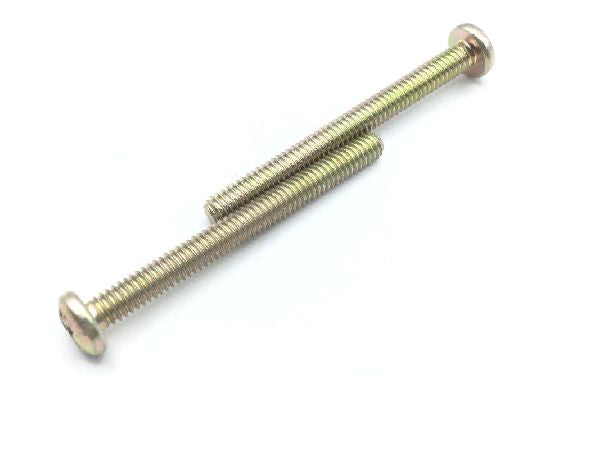

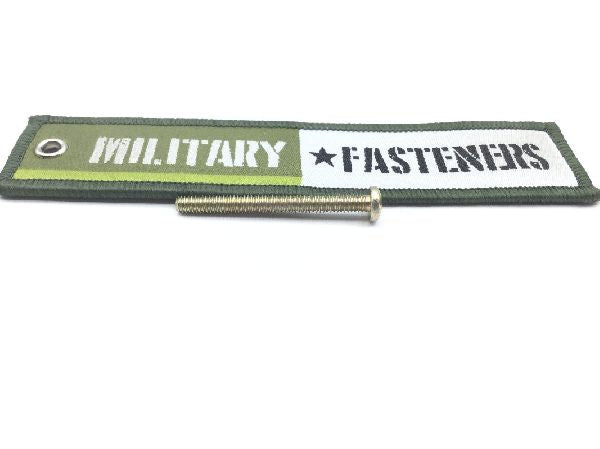

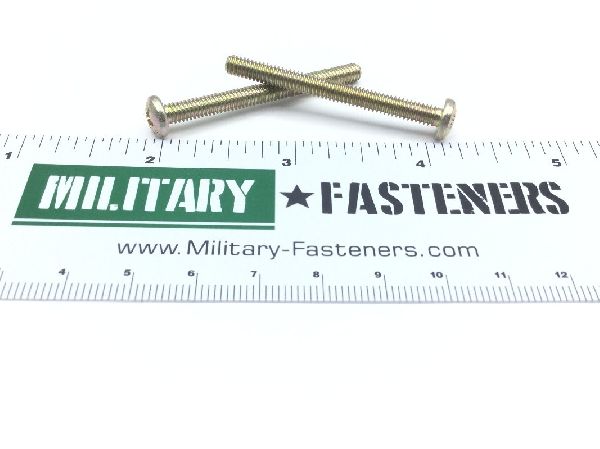

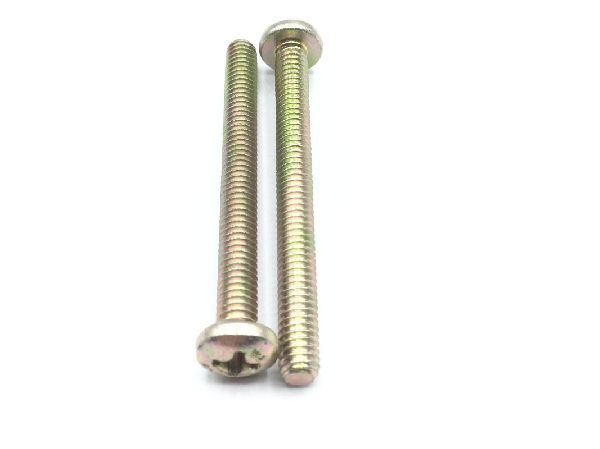

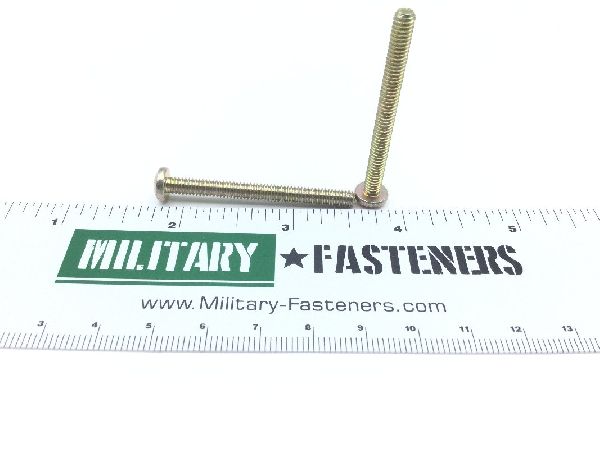

NAS602-28P Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $1.50

Units per Pack 25

Price per Pack $37.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $37.50

Add item to quote

Head Style

Pan

Material

Steel

Surface Treatment

Class 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Fastener Length: Between 1.690 inches and 1.750 inches
Hardness Rating: Between 36.0 rockwell c and 40.0 rockwell c
Head Height: Between 0.105 inches and 0.115 inches
Internal Drive Style: Cross recess type 1
Material Specification: Mil-s-5626 military specification 1st material response or mil-s-5000 military specification 2nd material response or mil-s-6049 military specification 3rd material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas602 professional/industrial association standard
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: Between 1.628 inches and 1.750 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjc
Head Diameter: Between 0.306 inches and 0.322 inches
