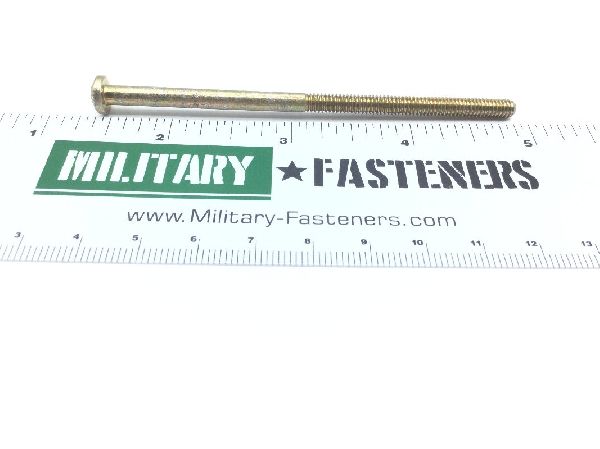

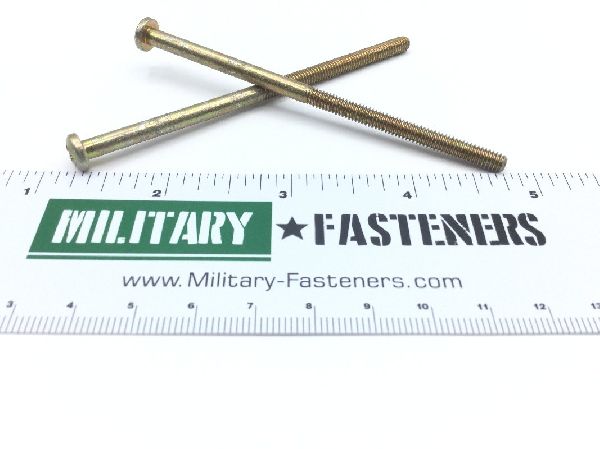

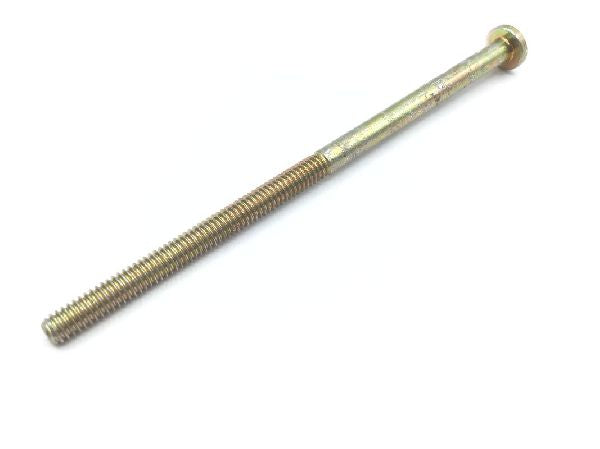

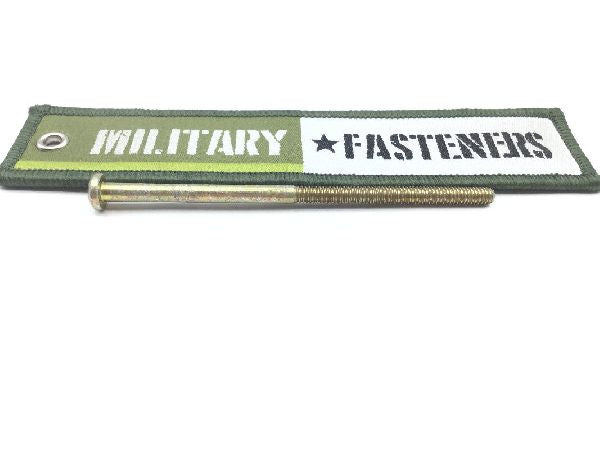

NAS602-56P Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $6.24

Units per Pack 5

Price per Pack $31.20

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $31.20

Add item to quote

Head Style

Pan no. 2

Thread Class

Fastener Length: Between 5.910 inches and 6.000 inches
Hardness Rating: Between 36.0 rockwell c and 40.0 rockwell c
Head Height: Between 0.105 inches and 0.115 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 160000 pounds per square inch
Screw Material: Steel
Screw Material Specification: Mil-s-7839 military specification single material response
Screw Surface Treatment: Cadmium and chromate
Screw Surface Treatment Specification: Cl3 federal specification single treatment response ty2 qq-p-416
Specification Data: 80205-nas602 professional/industrial association standard
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: 1.750 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjc
Head Diameter: Between 0.306 inches and 0.322 inches
