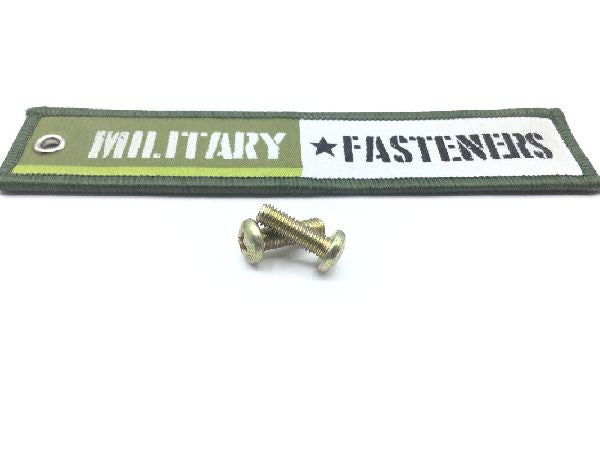

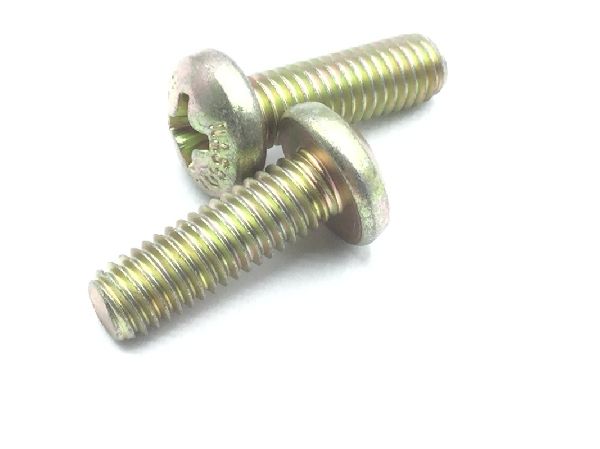

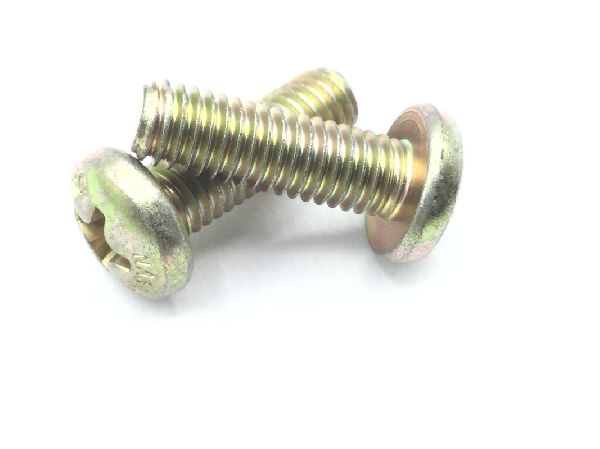

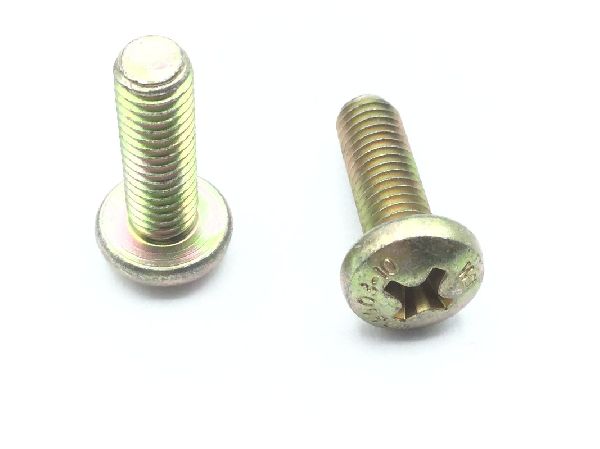

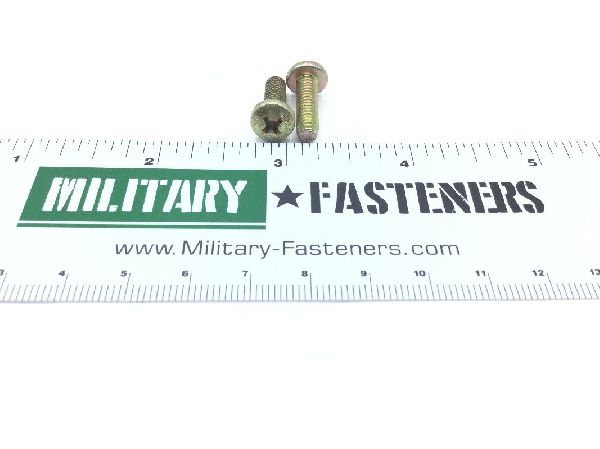

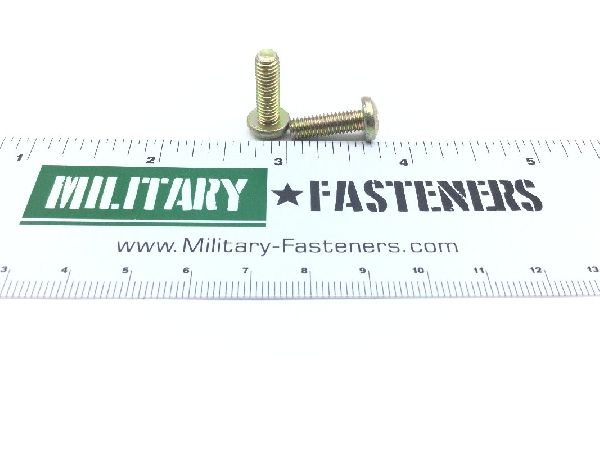

NAS603-10P Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.65

Units per Pack 50

Price per Pack $32.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $32.50

Add item to quote

Head Style

Pan

Thread Class

Fastener Length: 0.625 inches
Hardness Rating: Between 36.0 rockwell c and 40.0 rockwell c
Head Height: Between 0.122 inches and 0.133 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 160000 pounds per square inch
Screw Material: Steel comp
Screw Material Specification: Mil-s-5626 assn standard 1st material response or mil-s-5000 assn standard 2nd material response or mil-s-6049 assn standard 3rd material response
Screw Surface Treatment: Cadmium and chromate
Screw Surface Treatment Specification: Cl 3 federal specification all treatment responses type 2 qq-b-416
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.563 inches and 0.625 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Head Diameter: Between 0.357 inches and 0.373 inches
