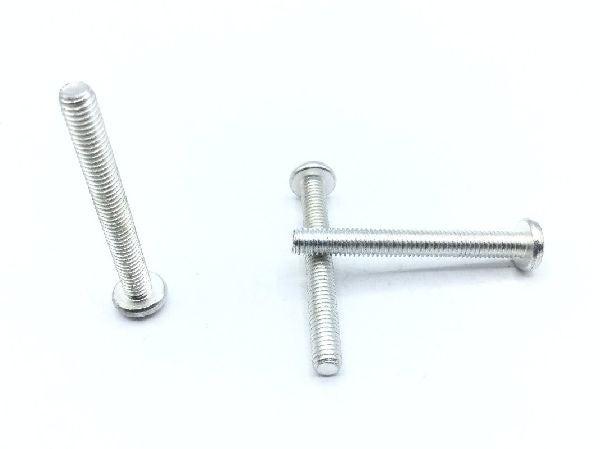

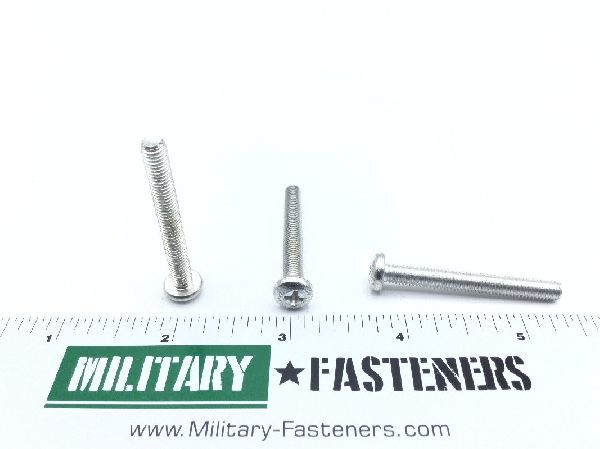

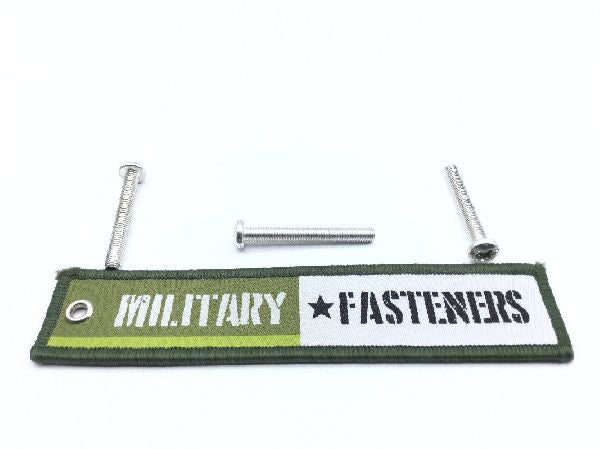

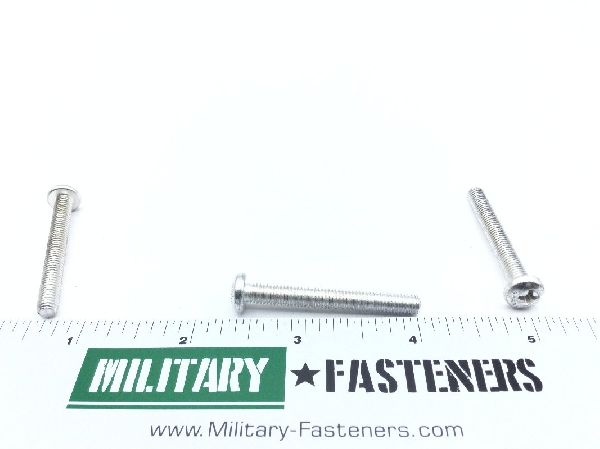

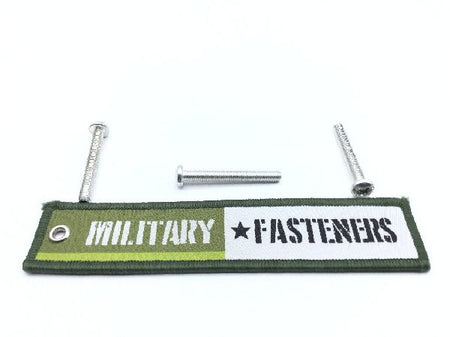

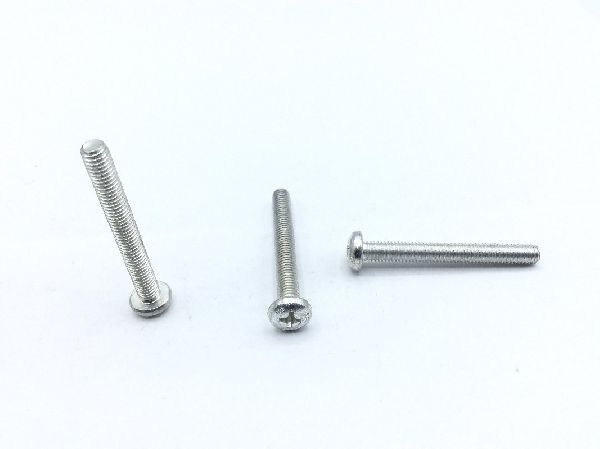

NAS603-26 Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.62

Units per Pack 50

Price per Pack $31.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $31.00

Add item to quote

Head Style

Pan

Material

Steel comp

Surface Treatment

Class 3 federal specification single treatment response type 1 qq-p-416

Thread Class

Fastener Length: Between 1.562 inches and 1.625 inches
Hardness Rating: Between 36.0 rockwell c and 40.0 rockwell c
Head Height: Between 0.122 inches and 0.133 inches
Internal Drive Style: Cross recess type 1
Material Specification: Mil-s-6050 military specification single material response or an-s-9 military standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 1.562 inches and 1.625 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.357 inches and 0.373 inches
