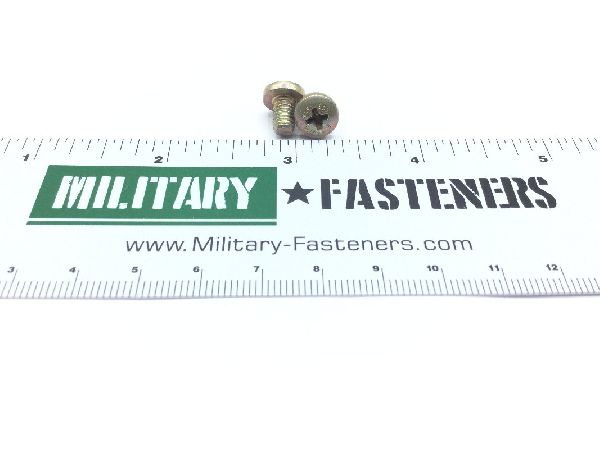

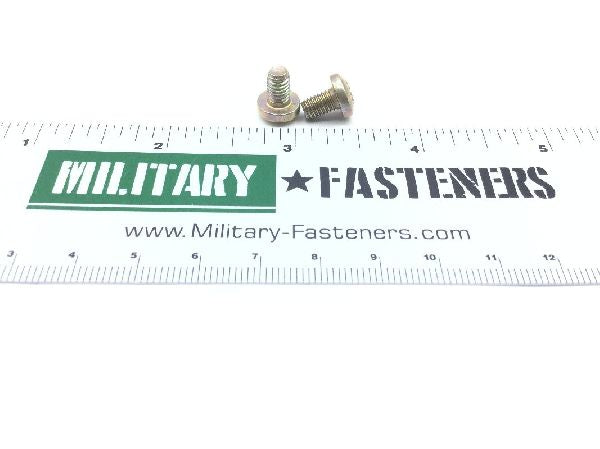

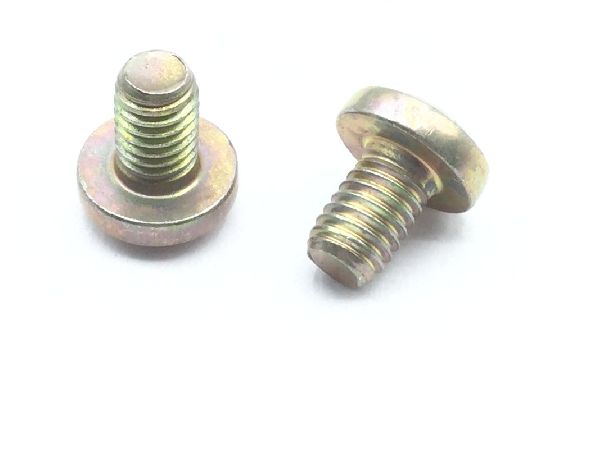

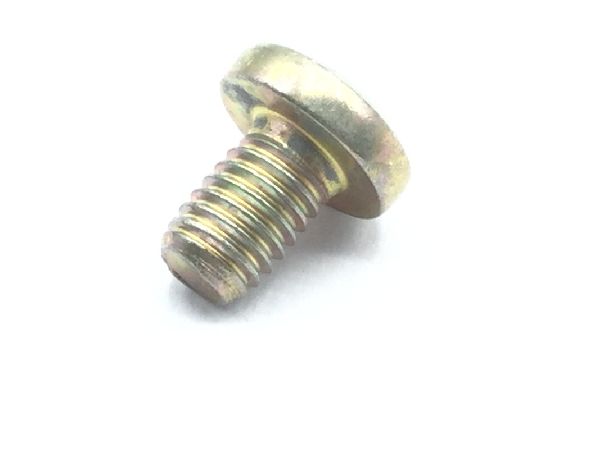

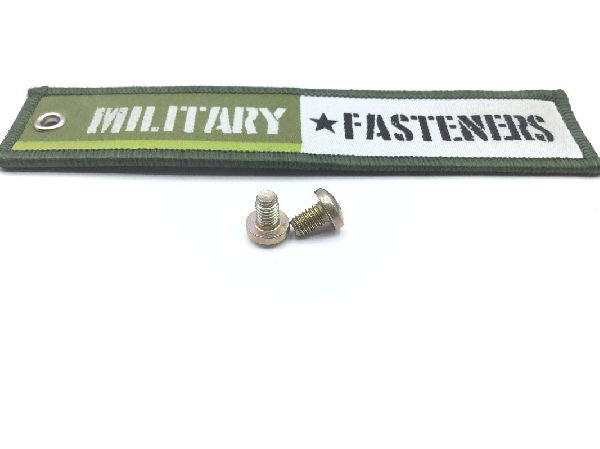

NAS603-5 Machine Screw
- Product Series
- NAS
- ECCN
- EAR99
- Schedule
- 7318.15.2091
Unit of Measure:
EA
Add to Quote
We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.
Add to QuoteCouldn't load pickup availability
- Fastener Length
- Between 0.282 inches and 0.312 inches
- Hardness Rating
- Between 36.0 rockwell c and 40.0 rockwell c
- Head Height
- Between 0.122 inches and 0.133 inches
- Internal Drive Style
- Cross recess type 1
- Min. Tensile Strength (psi)
- 160000 pounds per square inch
- Screw Material
- Steel comp 4140 or steel comp e4340 or steel comp 8740
- Screw Material Specification
- Mil-s-5626 military specification 1st material response or mil-s-5000 military specification 2nd material response or mil-s-6049 military specification 3rd material response
- Screw Surface Treatment
- Cadmium
- Screw Surface Treatment Specification
- Cl 2 federal specification single treatment response type 1 qq-p-416
- Specification Data
- 80205-nas603 professional/industrial association standard
- Thread Diameter
- 0.190 inches
- Thread Direction
- Right-hand
- Thread Length
- Between 0.220 inches and 0.312 inches
- Thread Qty Per Inch (tpi)
- 32
- Thread Series Designator
- Unjf (fine thread with external controlled root radius)
- Head Diameter
- Between 0.357 inches and 0.373 inches
