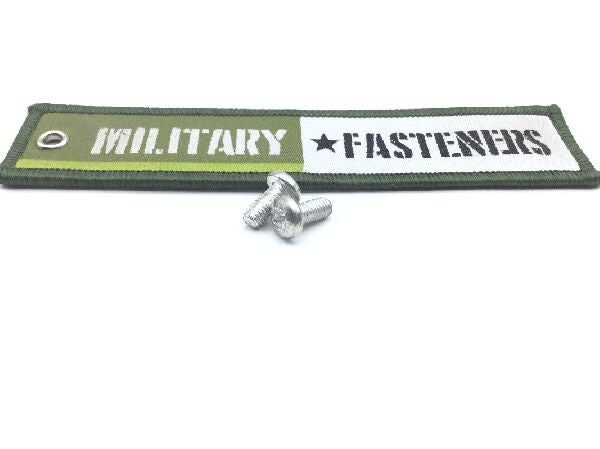

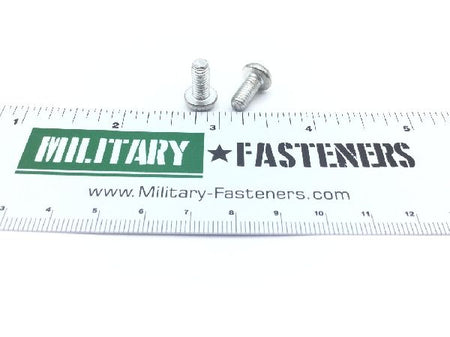

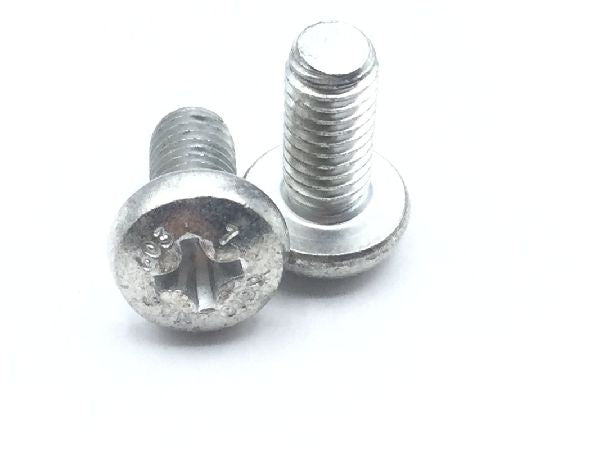

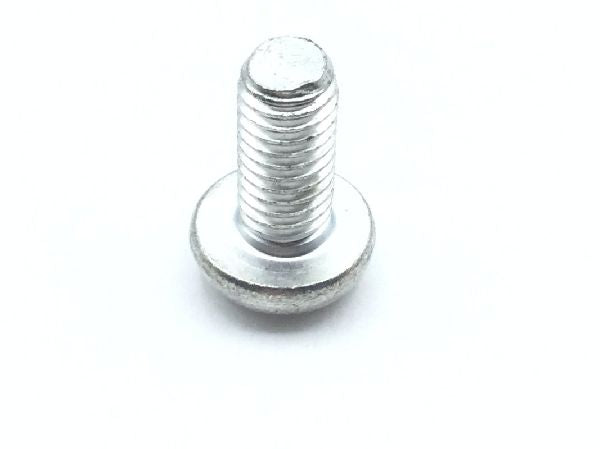

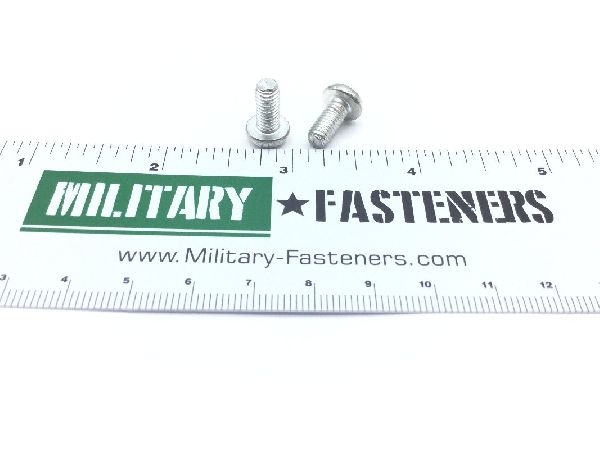

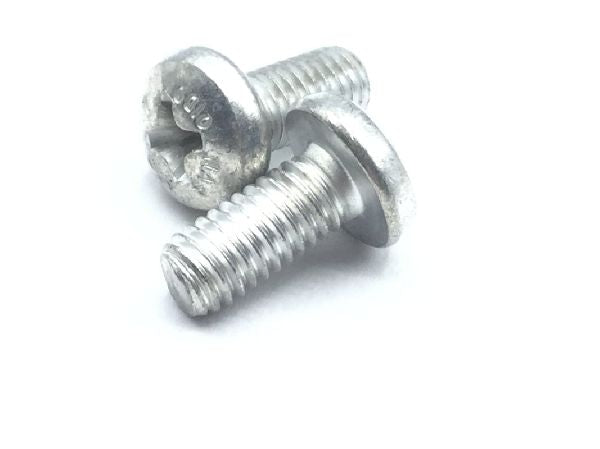

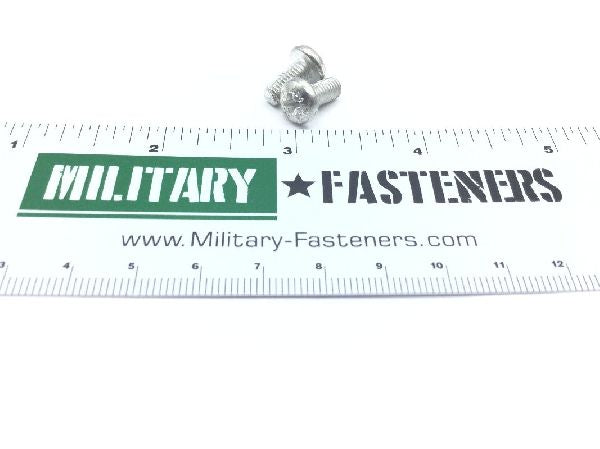

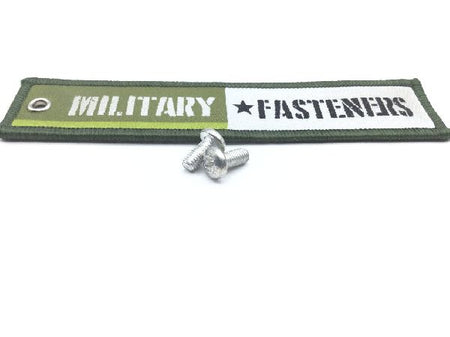

NAS603-7 Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $0.37

Units per Pack 100

Price per Pack $37.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $37.00

Add item to quote

Head Style

Pan

Material

Steel

Thread Class

Fastener Length: Between 0.410 inches and 0.440 inches
Hardness Rating: Between 36.0 rockwell c and 40.0 rockwell c
Head Height: Between 0.122 inches and 0.133 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 160000 pounds per square inch
Special Features: Fleet ballistic missile quality as identified by quality control no poso 913090
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.348 inches and 0.440 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Head Diameter: Between 0.357 inches and 0.373 inches
