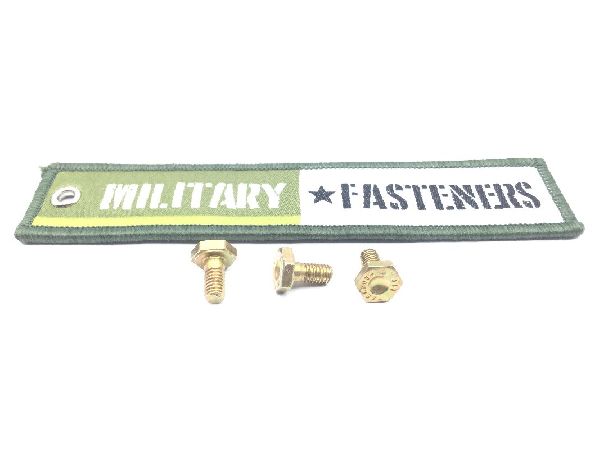

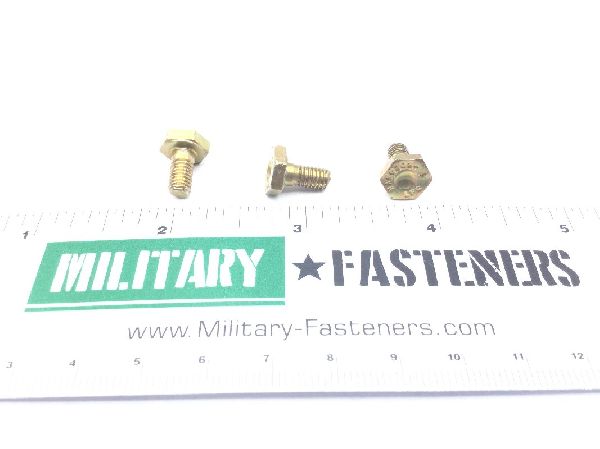

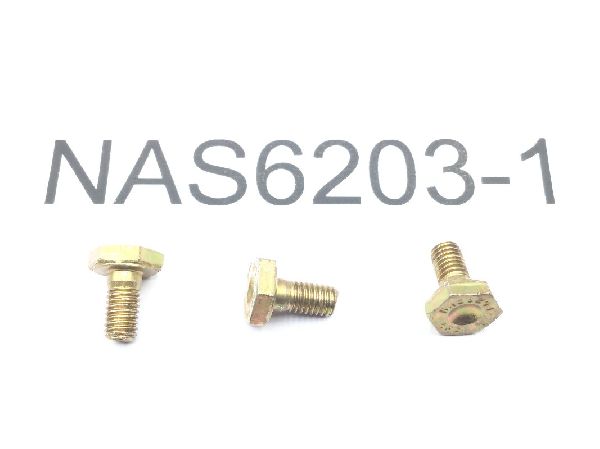

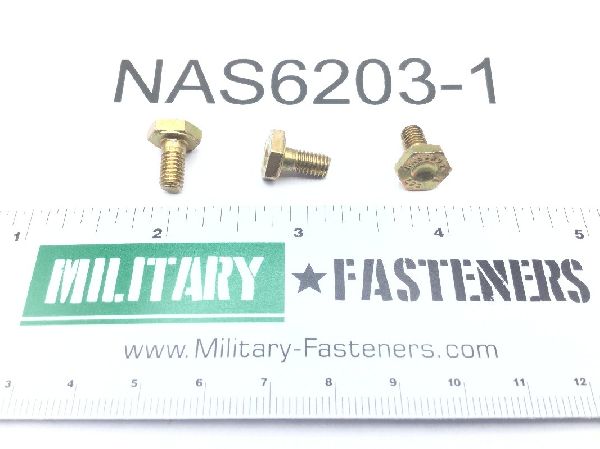

NAS6203-1 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $0.79

Units per Pack 50

Price per Pack $39.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $39.50

Add item to quote

Head Style

Hexagon

Material

Steel comp e4340

Surface Treatment

Qq-p-416 type 2 federal specification 1st treatment response

Thread Class

Fastener Length: Between 0.370 inches and 0.400 inches
Grip Diameter: Between 0.1885 inches and 0.1895 inches
Grip Length: Between 0.052 inches and 0.072 inches
Head Height: Between 0.110 inches and 0.125 inches
Material Specification: Mil-s-5000 military specification 1st material response
Min. Tensile Strength (psi): 16000 pounds per square inch
Specification Data: 80205-nas6203 professional/industrial association standard
Surface Finish: 32.0 microinches bearing surface of head
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: 0.323 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.367 inches and 0.376 inches
