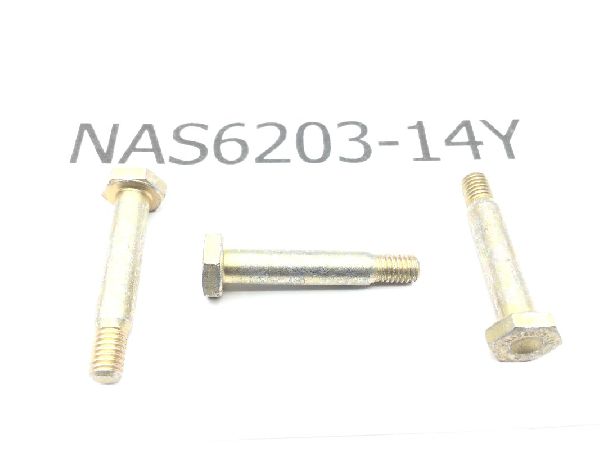

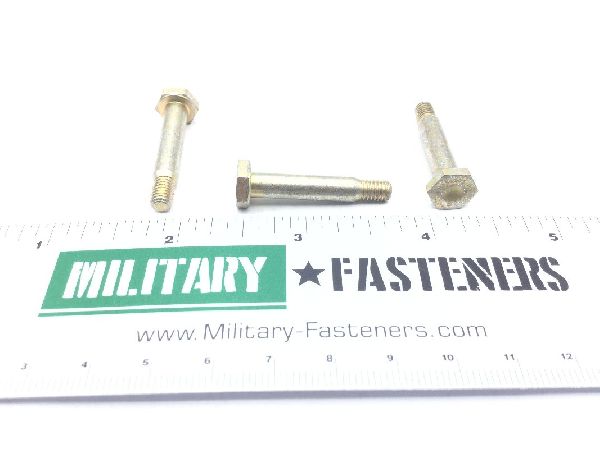

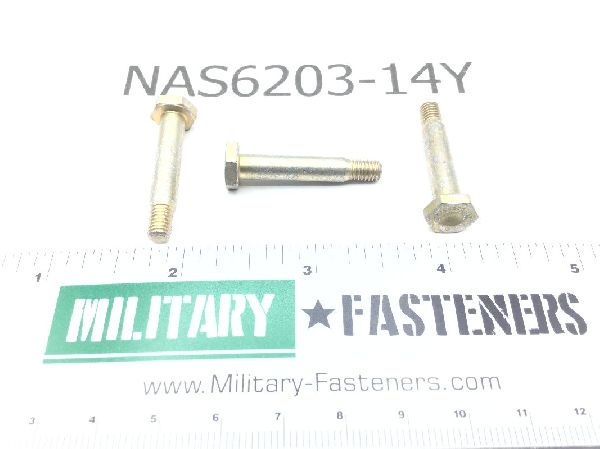

NAS6203-14Y Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $6.93

Units per Pack 5

Price per Pack $34.65

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $34.65

Add item to quote

Head Style

Dished hexagon

Material

Steel comp

Thread Class

Fastener Length: Between 1.183 inches and 1.213 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Head Height: Between 0.110 inches and 0.125 inches
Material Specification: Mil-s-5000 military specification 1st material response or mil-s-6049 military specification 2nd material response or ams 6322 assn standard 2nd material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Shoulder Diameter: 0.2172 inches first shoulder and 0.2182 inches first shoulder
Shoulder Length: 0.865 inches first shoulder and 0.885 inches first shoulder
Shoulder Shape: Round first shoulder
Specification Data: 80205-nas6203 professional/industrial association standard
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.298 inches and 0.348 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Treatment: Cadmium and chromate
Treatment Specification: Qq-p-416 type 2 class 2 federal specification single treatment response
Width Between Flats: Between 0.367 inches and 0.376 inches
