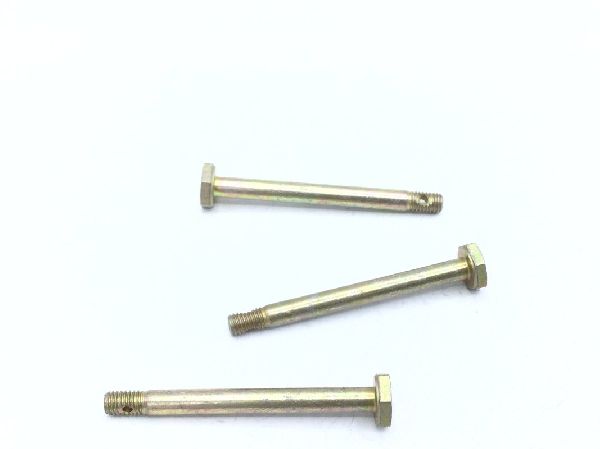

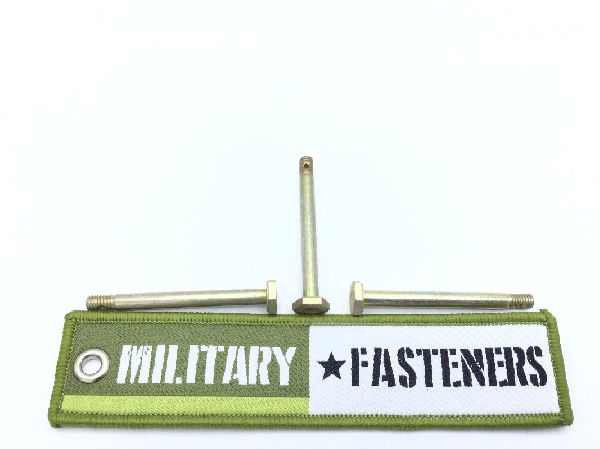

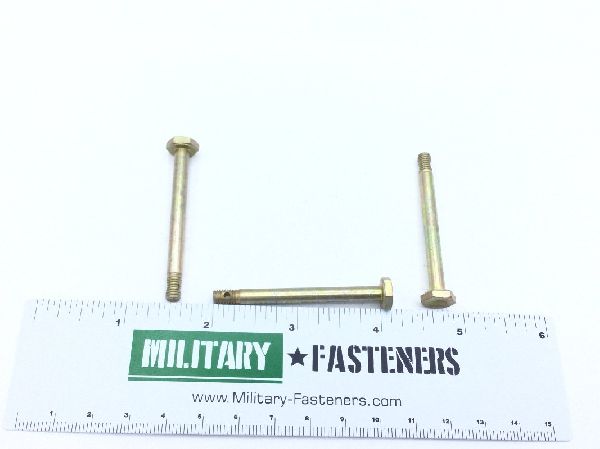

NAS6203-27D Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $6.93

Units per Pack 5

Price per Pack $34.65

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $34.65

Add item to quote

Head Style

Hexagon

Material

Steel comp 4340 or steel comp 8740

Surface Treatment

Type 2 cl 2 federal specification all treatment responses qq-p-416

Thread Class

Distance From Head Largest Bearing Surface To Shank Hole Center: 2.899 inches first hole and 2.919 inches first hole
Fastener Length: Between 1.996 inches and 2.026 inches
Features: Finished head
Features Provided: Finished head
Grip Diameter: Between 0.189 inches and 0.190 inches
Grip Length: Between 1.678 inches and 1.698 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Head Height: Between 0.110 inches and 0.125 inches
Material Specification: Mil-s-5000 uns g43400 military specification 1st material response or mil-s-6049 military specification 2nd material response or ams6322 uns g87400 assn standard 2nd material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Shank Unthreaded Hole Diameter: 0.070 inches first hole and 0.080 inches first hole
Specification Data: 80205-nas6203 professional/industrial association standard
Supplementary Features: Close tol appl
Surface Finish: 32.0 microinches threads
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: 0.323 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.367 inches and 0.376 inches
