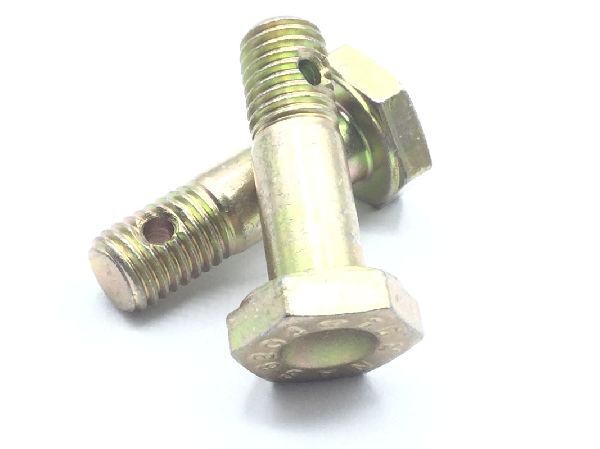

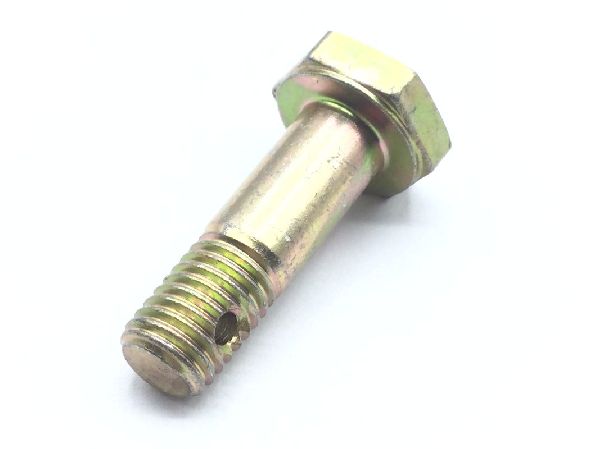

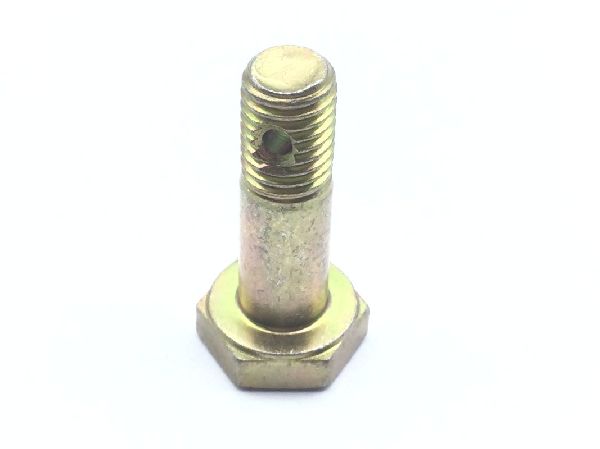

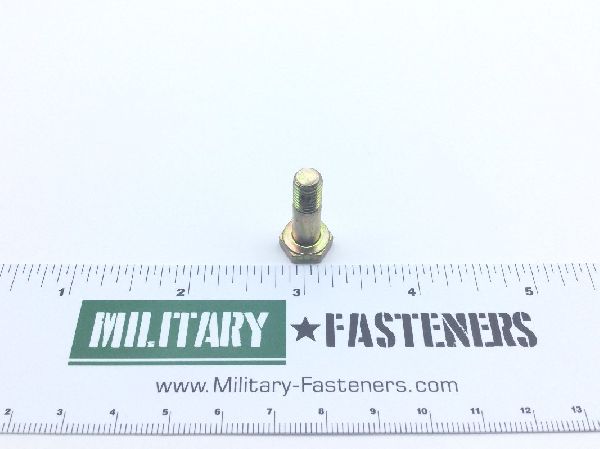

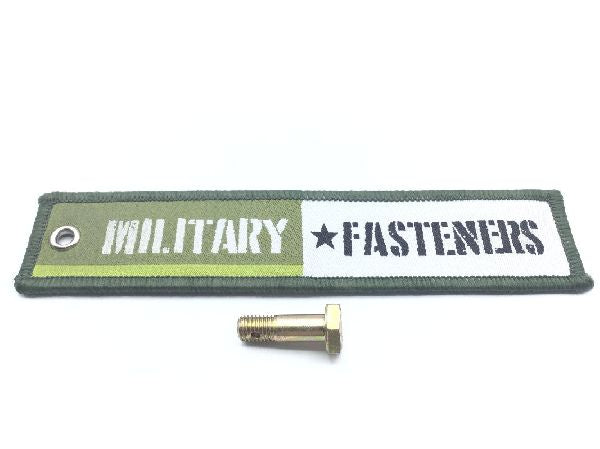

NAS6204-7D Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $3.68

Units per Pack 10

Price per Pack $36.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $36.80

Add item to quote

Head Style

Dished hexagon

Material

Steel comp e4340 or steel comp 8740

Surface Treatment

Qq-p-416 type 2 cl 2 federal specification single treatment response

Thread Class

Distance From Head Largest Bearing Surface To Shank Hole Center: 0.613 inches first hole and 0.663 inches first hole
Fastener Length: Between 0.793 inches and 0.823 inches
Grip Diameter: Between 0.2485 inches and 0.2495 inches
Grip Length: Between 0.428 inches and 0.448 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Head Height: Between 0.125 inches and 0.140 inches
Material Specification: Mil-s-5000 military specification 1st material response or mil-s-6049 military specification 2nd material response or ams 6322 assn standard 2nd material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Shank Unthreaded Hole Diameter: 0.076 inches first hole and 0.086 inches first hole
Specification Data: 80205-nas6204 professional/industrial association standard
Surface Finish: 32.0 microinches threads
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.345 inches and 0.395 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.429 inches and 0.439 inches
