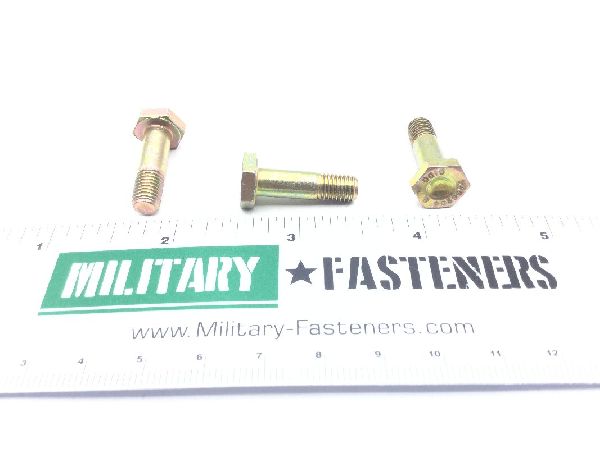

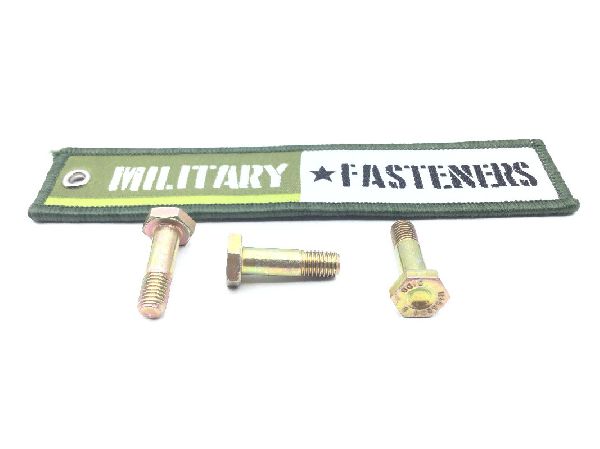

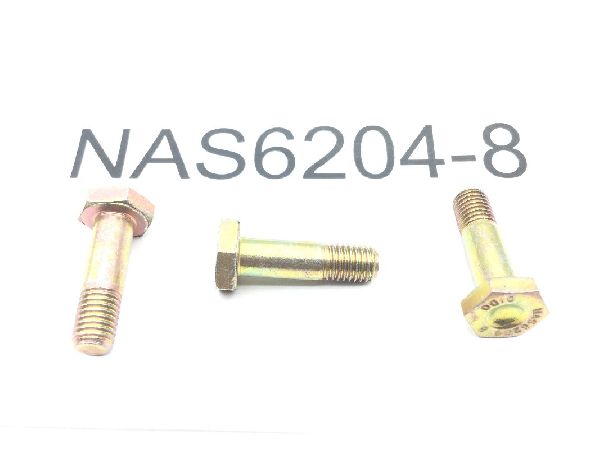

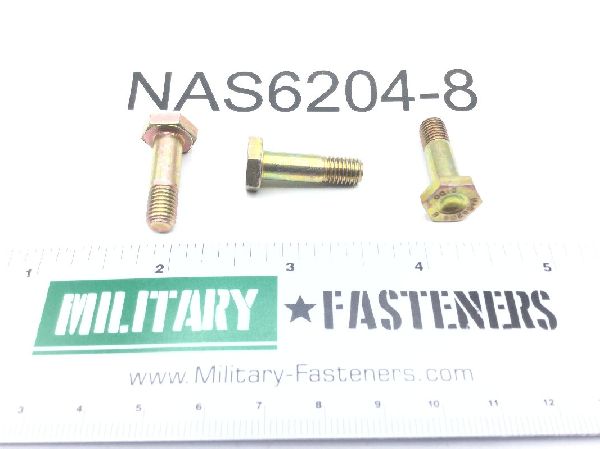

NAS6204-8 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $0.96

Units per Pack 50

Price per Pack $48.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $48.00

Add item to quote

Head Style

Dished hexagon

Thread Class

3a

Fastener Length: Between 0.855 inches and 0.885 inches
Grip Diameter: Between 0.248 inches and 0.249 inches
Grip Length: Between 0.490 inches and 0.510 inches
Head Height: Between 0.125 inches and 0.140 inches
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.345 inches and 0.395 inches
Thread Qty Per Inch (tpi): 28
Width Between Flats: Between 0.429 inches and 0.439 inches
