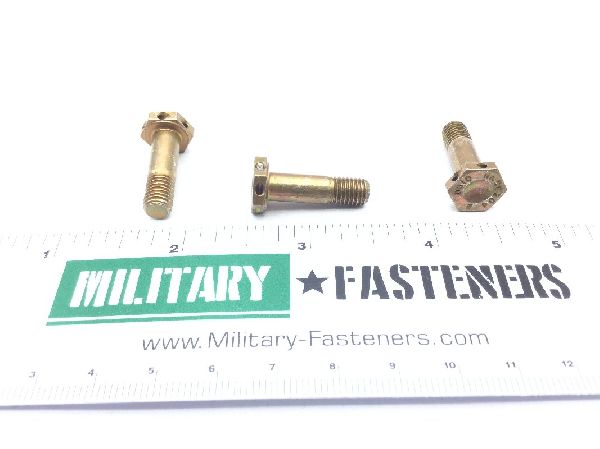

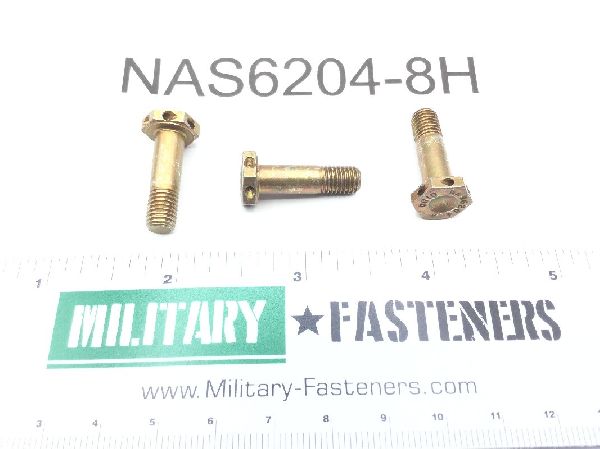

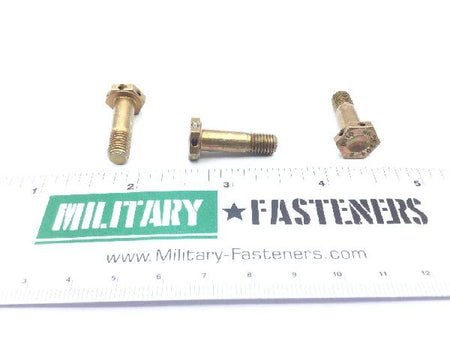

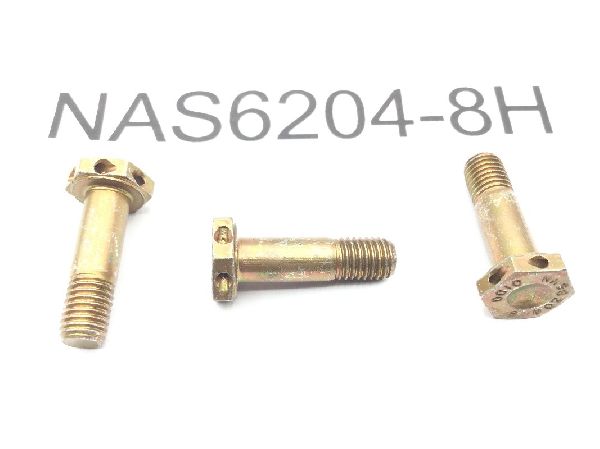

NAS6204-8H Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Dished hexagon

Material

Steel

Surface Treatment

Qq-416 ty2 cl2 federal specification single treatment response

Thread Class

Fastener Length: 0.870 inches
Grip Diameter: 0.2490 inches
Grip Length: 0.465 inches
Head Height: 0.133 inches
Hole Configuration Style: Hexagon corners
Hole Quantity: 3
Hole Type: Drilled
Material Specification: Mil-s-5000 military specification single material response
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: 0.370 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: 0.434 inches
Hole Diameter: Between 0.046 inches and 0.056 inches
