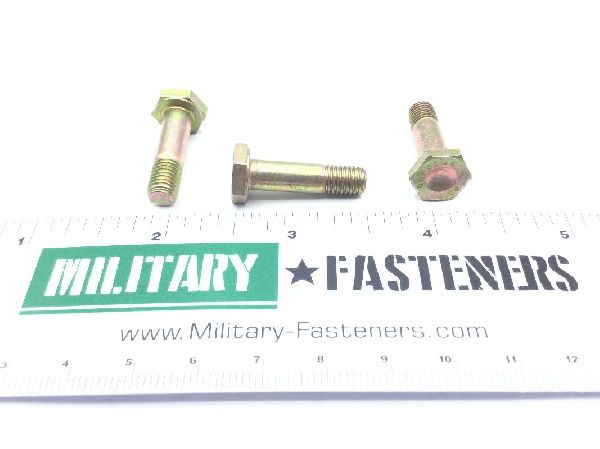

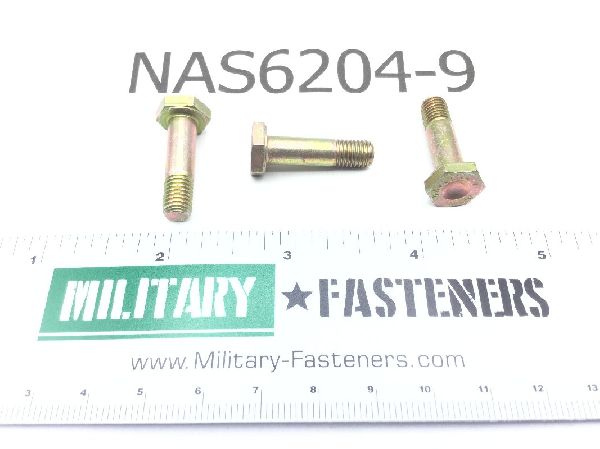

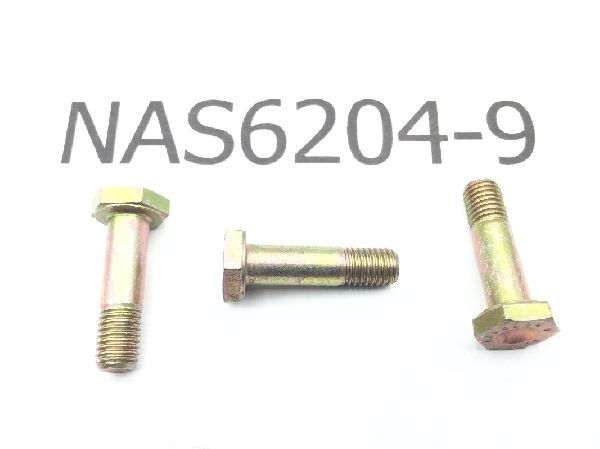

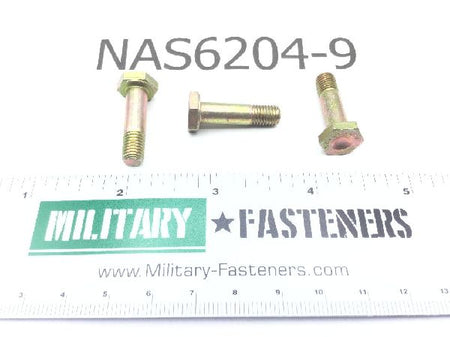

NAS6204-9 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $3.36

Units per Pack 10

Price per Pack $33.60

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $33.60

Add item to quote

Head Style

Dished hexagon

Material

Steel

Surface Treatment

Qq-p-416 type 2 class 2 federal specification single treatment response

Thread Class

Fastener Length: Between 0.917 inches and 0.947 inches
Grip Diameter: Between 0.2485 inches and 0.2495 inches
Grip Length: Between 0.552 inches and 0.572 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Head Height: Between 0.125 inches and 0.140 inches
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas6204 professional/industrial association standard
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.345 inches and 0.395 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.429 inches and 0.439 inches
