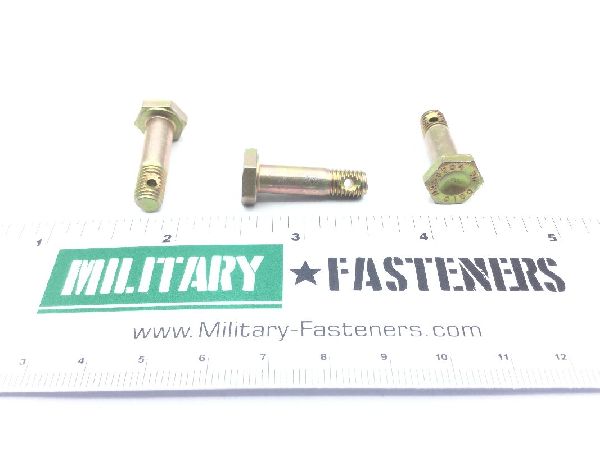

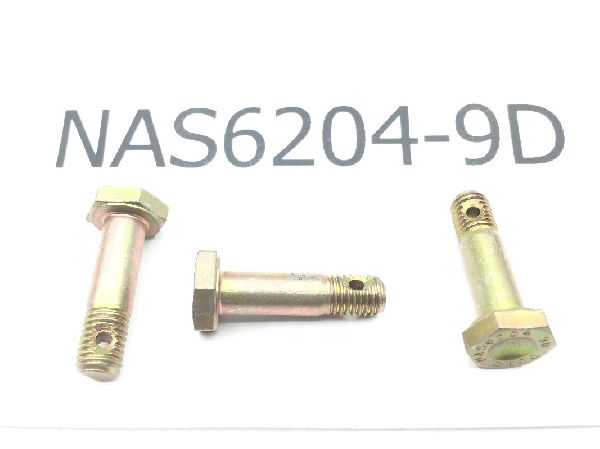

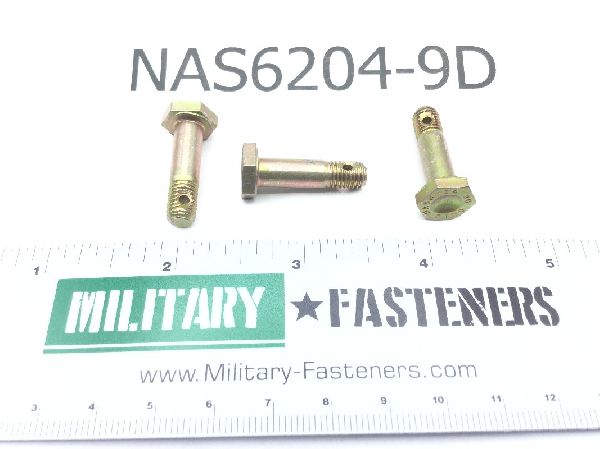

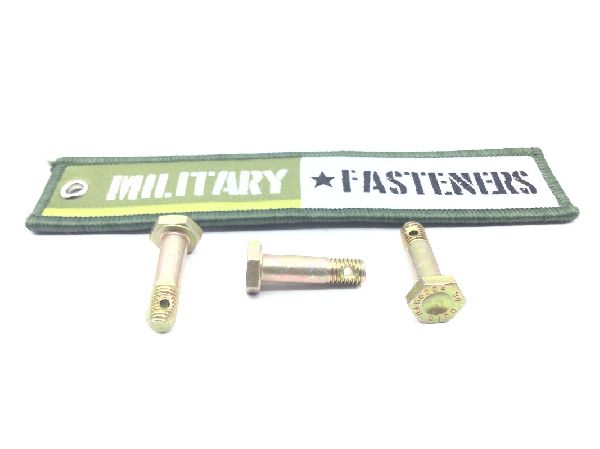

NAS6204-9D Shear Bolt
- Product Series
- NAS
- ECCN
- EAR99
- Schedule
- 7318.15.8085
Unit of Measure:
EA
Add to Quote
We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.
Add to QuoteCouldn't load pickup availability
- Distance From Head Largest Bearing Surface To Shank Hole Center
- 0.737 inches first hole and 0.787 inches first hole
- Fastener Length
- Between 0.917 inches and 0.947 inches
- Grip Diameter
- Between 0.2485 inches and 0.2495 inches
- Grip Length
- Between 0.552 inches and 0.572 inches
- Hardness Rating
- 36.0 rockwell c and 40.0 rockwell c
- Head Height
- Between 0.125 inches and 0.140 inches
- Material Specification
- Mil-s-5000 military specification 1st material response or mil-s-6049 military specification 2nd material response or ams6322 assn standard 2nd material response
- Min. Tensile Strength (psi)
- 160000 pounds per square inch
- Shank Unthreaded Hole Diameter
- 0.076 inches first hole and 0.086 inches first hole
- Specification Data
- 80205-nas6204 professional/industrial association standard
- Thread Diameter
- 0.250 inches
- Thread Direction
- Right-hand
- Thread Length
- Between 0.345 inches and 0.395 inches
- Thread Qty Per Inch (tpi)
- 28
- Thread Series Designator
- Unjf (fine thread with external controlled root radius)
- Width Between Flats
- Between 0.430 inches and 0.439 inches
