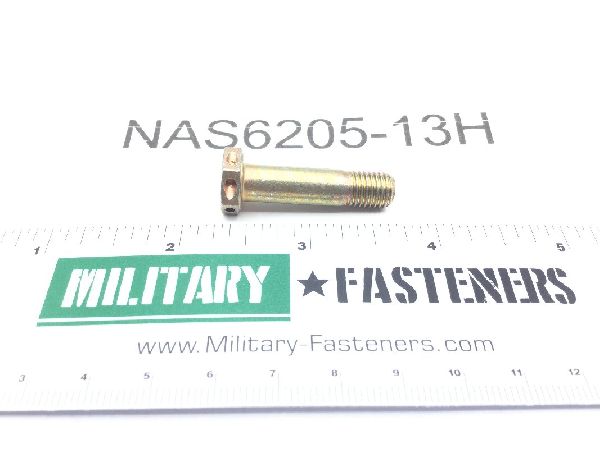

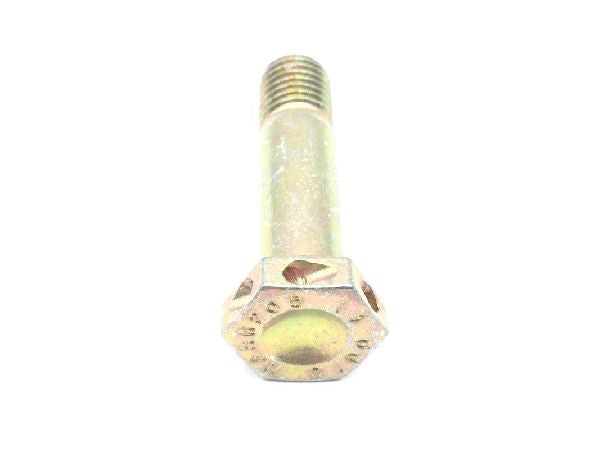

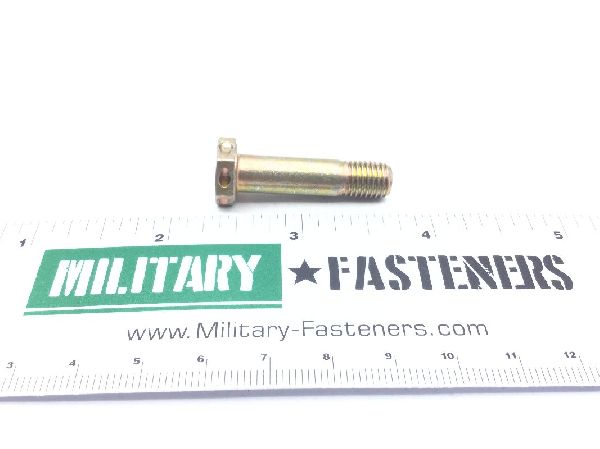

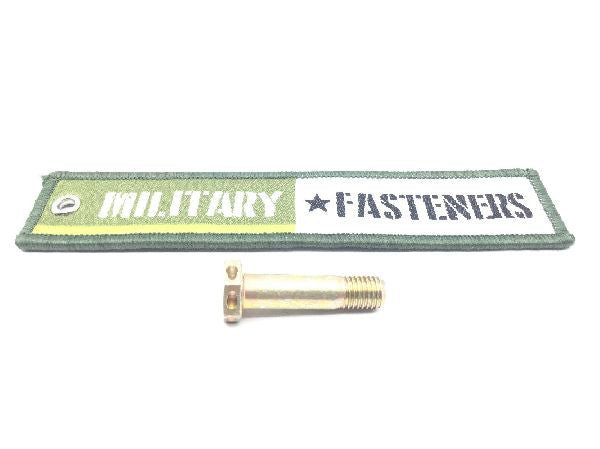

NAS6205-13H Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $15.94

Units per Pack 1

Price per Pack $15.94

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $15.94

Add item to quote

Head Style

Dished hexagon

Material

Steel

Surface Treatment

Class 2 federal specification single treatment response type 2 qq-p-416

Thread Class

End Application: Pacer dawn
Fastener Length: Between 1.235 inches and 1.265 inches
Grip Diameter: Between 0.3110 inches and 0.3120 inches
Grip Length: Between 0.802 inches and 0.822 inches
Head Height: Between 0.156 inches and 0.171 inches
Hole Configuration Style: Hexagon corners
Hole Quantity: 3
Hole Type: Drilled
Thread Diameter: 0.3125 inches
Thread Direction: Right-hand
Thread Length: 0.438 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: 0.497 inches
Hole Diameter: Between 0.070 inches and 0.080 inches
