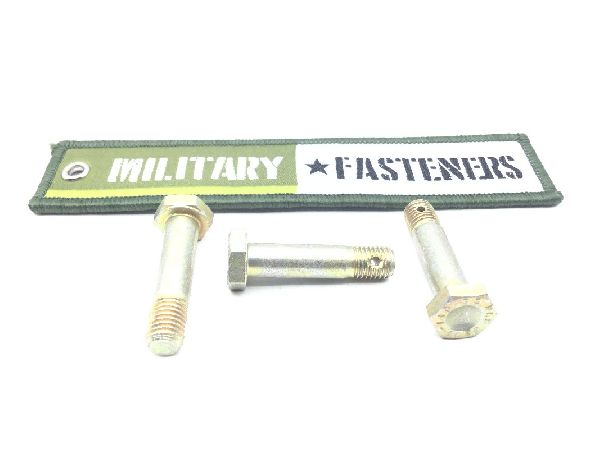

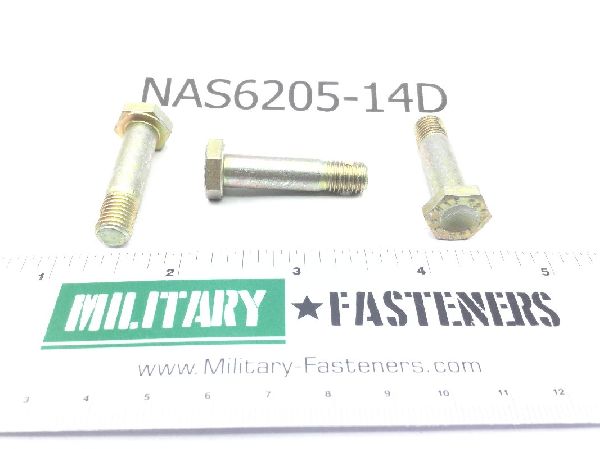

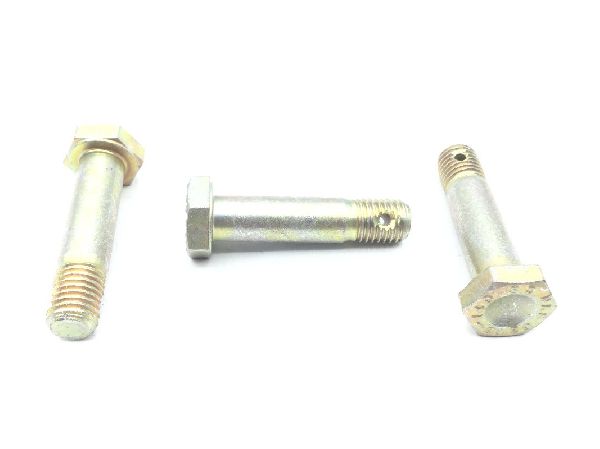

NAS6205-14D Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $4.08

Units per Pack 10

Price per Pack $40.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $40.80

Add item to quote

Head Style

Dished hexagon

Material

Steel

Thread Class

Distance From Head Largest Bearing Surface To Shank Hole Center: 1.131 inches first hole
Fastener Length: 1.313 inches
Grip Diameter: 0.3130 inches
Grip Length: 0.875 inches
Head Height: 0.163 inches
Min. Tensile Strength (psi): 160000 pounds per square inch
Shank Unthreaded Hole Diameter: 0.112 inches first hole
Specification Data: 80205-nas6205 professional/industrial association standard
Thread Diameter: 0.313 inches
Thread Direction: Right-hand
Thread Length: 0.438 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: 0.500 inches
