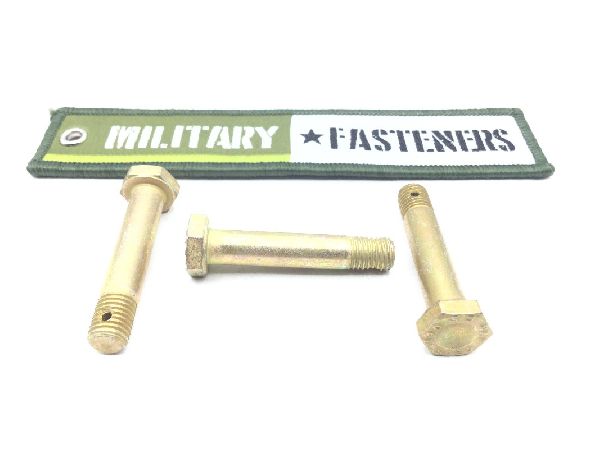

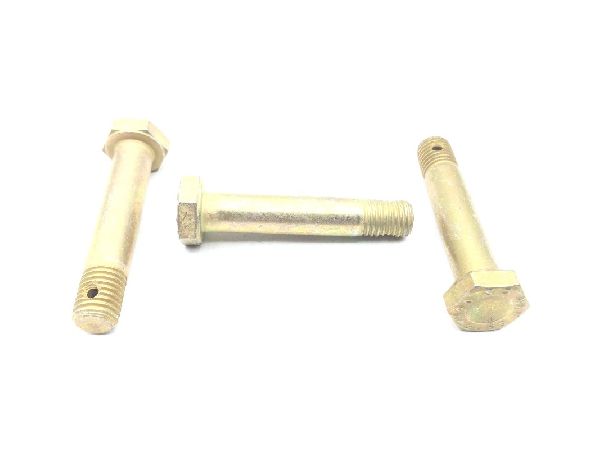

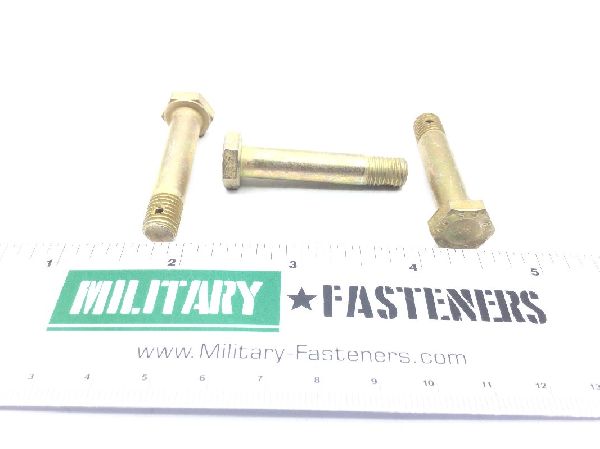

NAS6205-19D Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $8.93

Units per Pack 5

Price per Pack $44.65

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $44.65

Add item to quote

Head Style

Dished hexagon

Material

Steel

Thread Class

Distance From Head Largest Bearing Surface To Shank Hole Center: 1.444 inches first hole
Fastener Length: 1.626 inches
Grip Diameter: 0.3130 inches
Grip Length: 1.188 inches
Head Height: 0.163 inches
Min. Tensile Strength (psi): 160000 pounds per square inch
Shank Unthreaded Hole Diameter: 0.112 inches first hole
Specification Data: 80205-nas6205 professional/industrial association standard
Thread Diameter: 0.313 inches
Thread Direction: Right-hand
Thread Length: 0.438 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: 0.500 inches
