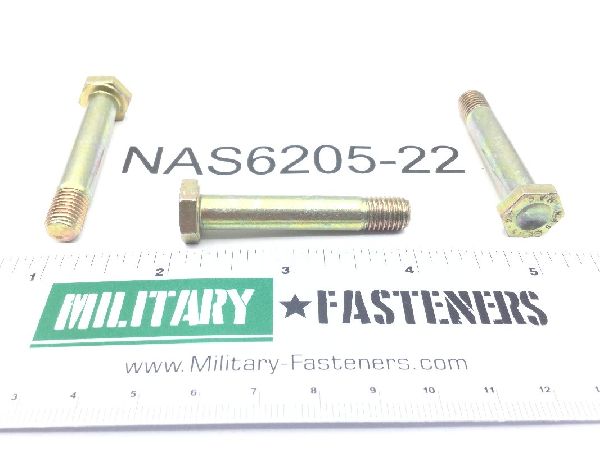

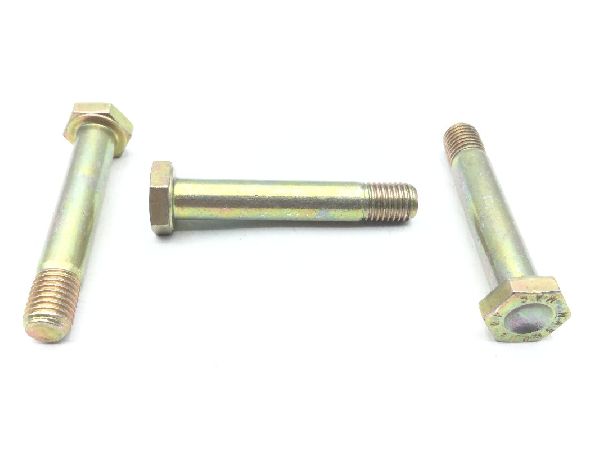

NAS6205-22 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Undercut hexagon

Material

Steel comp e4340 or steel comp 8740

Surface Treatment

Qq-p-416 ty2 cl2 federal specification all treatment responses

Thread Class

Fastener Length: Between 1.798 inches and 1.828 inches
Grip Diameter: Between 0.3110 inches and 0.3120 inches
Grip Length: Between 1.365 inches and 1.385 inches
Head Height: Between 0.156 inches and 0.171 inches
Specification Data: 80205-nas6205 professional/industrial association standard
Surface Finish: 32.0 microinches threads
Thread Diameter: 0.312 inches
Thread Direction: Right-hand
Thread Length: Between 0.413 inches and 0.463 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.492 inches and 0.502 inches
