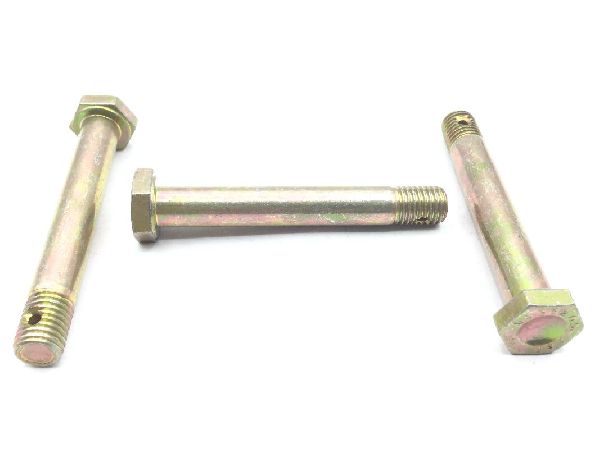

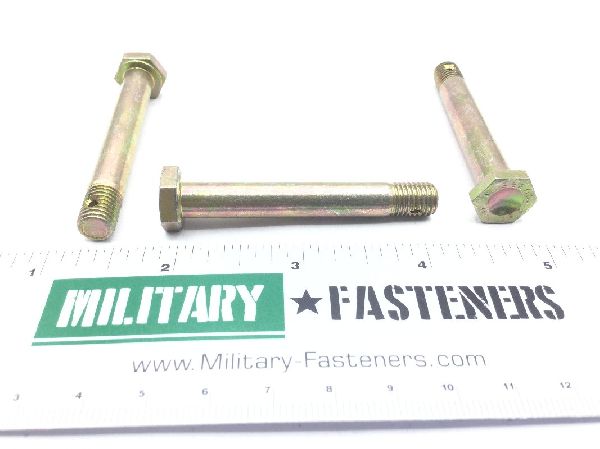

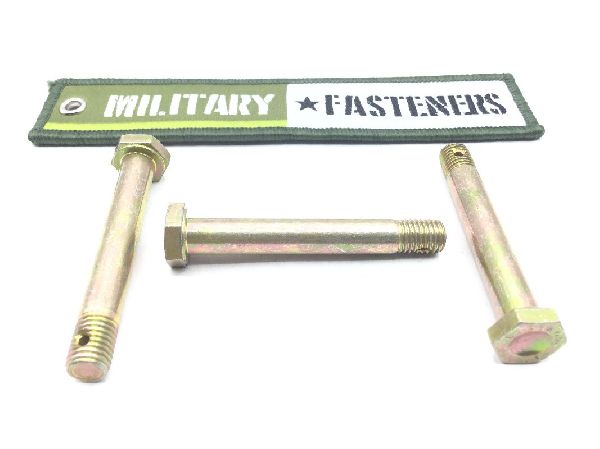

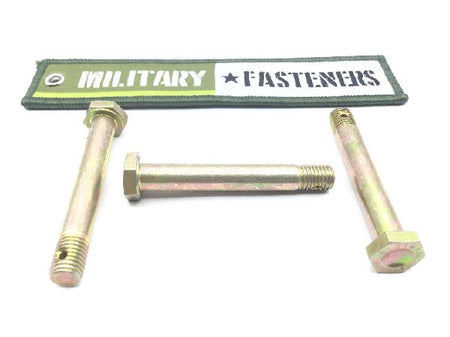

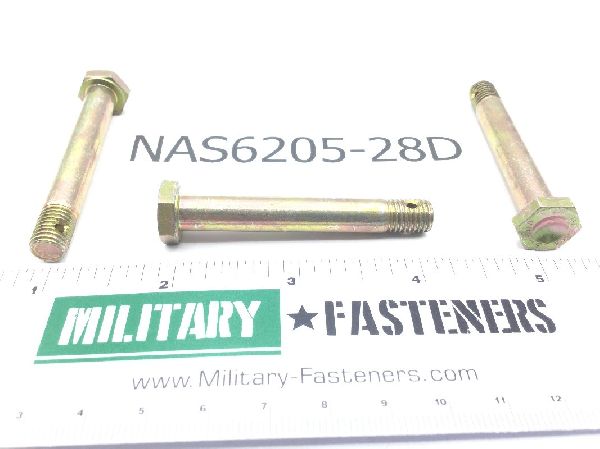

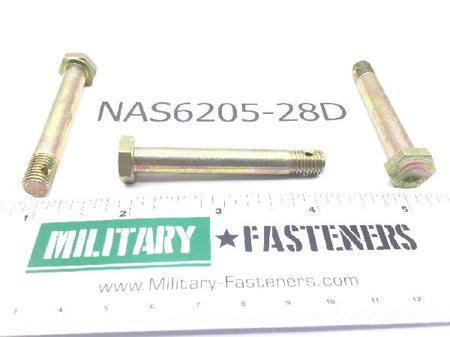

NAS6205-28D Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $6.37

Units per Pack 5

Price per Pack $31.85

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $31.85

Add item to quote

Head Style

Dished hexagon

Material

Steel

Surface Treatment

Class 2 federal specification single treatment response type 2 qq-p-416

Thread Class

Distance From Head Largest Surface To Shank Hole Center: 1.996 inches first hole and 2.016 inches first hole
Fastener Length: Between 2.173 inches and 2.203 inches
Grip Diameter: Between 0.3110 inches and 0.3120 inches
Grip Length: Between 1.740 inches and 1.760 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Head Height: Between 0.156 inches and 0.171 inches
Material Specification: 4340 or e4340 military specification single material response mil-s-5000
Min. Tensile Strength (psi): 160000 pounds per square inch
Shank Unthreaded Hole Diameter: 0.076 inches first hole and 0.086 inches first hole
Specification Data: 80205-nas6205 professional/industrial association standard
Thread Diameter: 0.312 inches
Thread Direction: Right-hand
Thread Length: 0.438 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.492 inches and 0.502 inches
