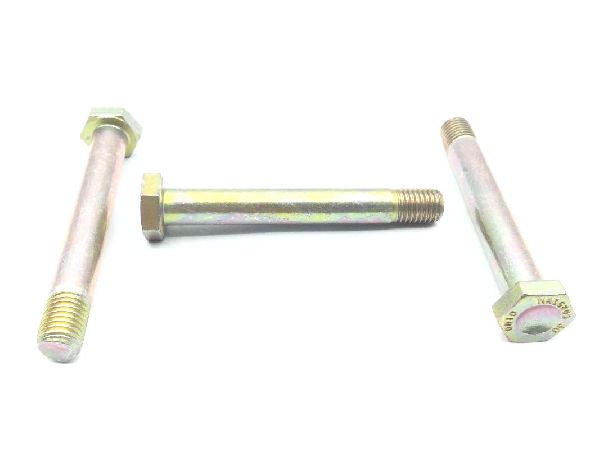

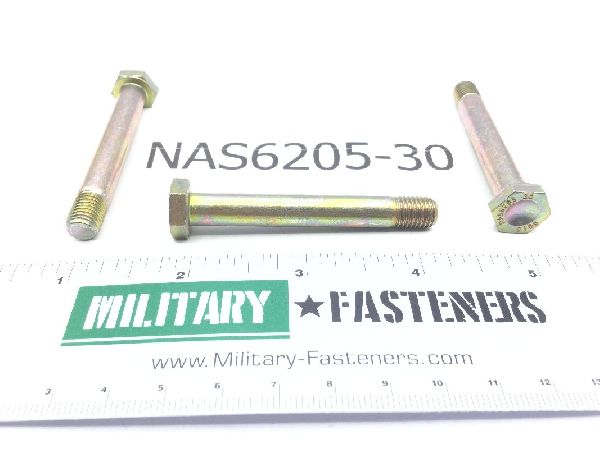

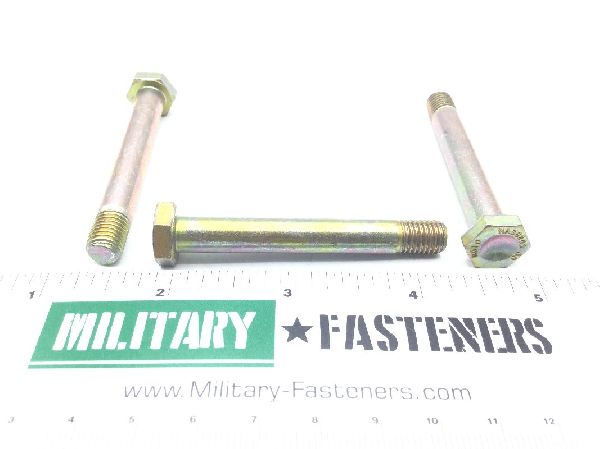

NAS6205-30 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $5.47

Units per Pack 10

Price per Pack $54.70

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $54.70

Add item to quote

Head Style

Dished hexagon

Material

Steel comp e4340 or steel comp 8740

Surface Treatment

Qq-p-416 ty2 cl2 federal specification single treatment response

Thread Class

Fastener Length: Between 2.298 inches and 2.328 inches
Grip Diameter: Between 0.3110 inches and 0.3120 inches
Grip Length: Between 1.865 inches and 1.885 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Head Height: Between 0.156 inches and 0.171 inches
Material Specification: Mil-s-5000 military specification 1st material response or mil-s-6049 military specification 2nd material response or ams6322 assn standard 2nd material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas6205 professional/industrial association standard
Thread Diameter: 0.312 inches
Thread Direction: Right-hand
Thread Length: Between 0.413 inches and 0.463 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.492 inches and 0.502 inches
