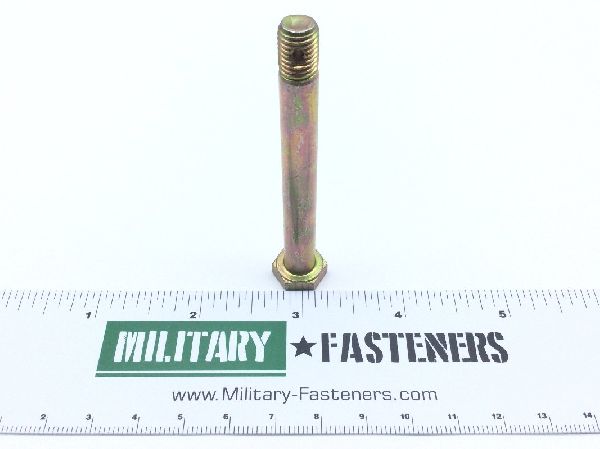

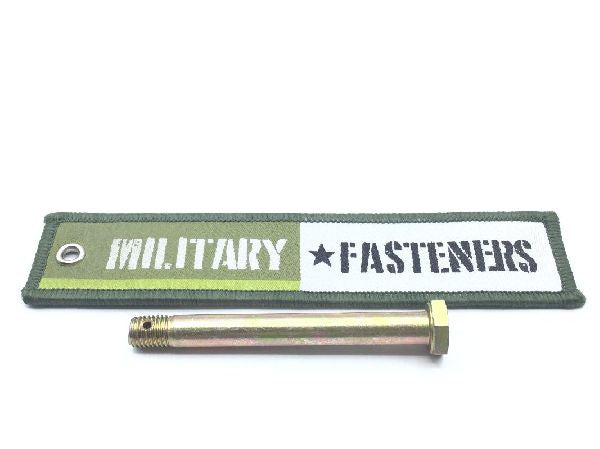

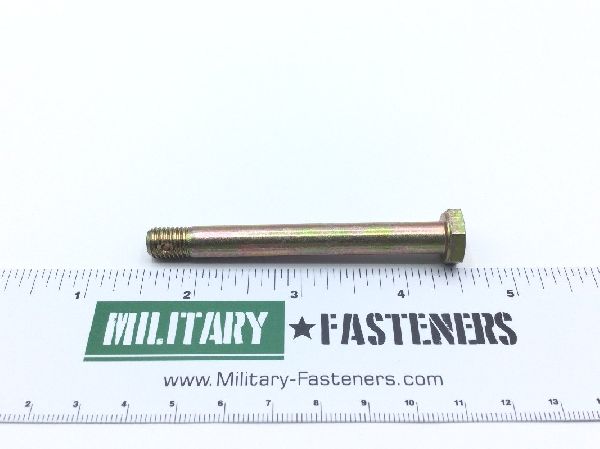

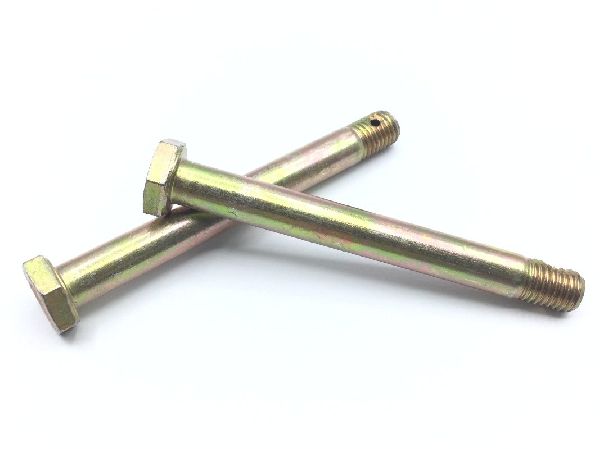

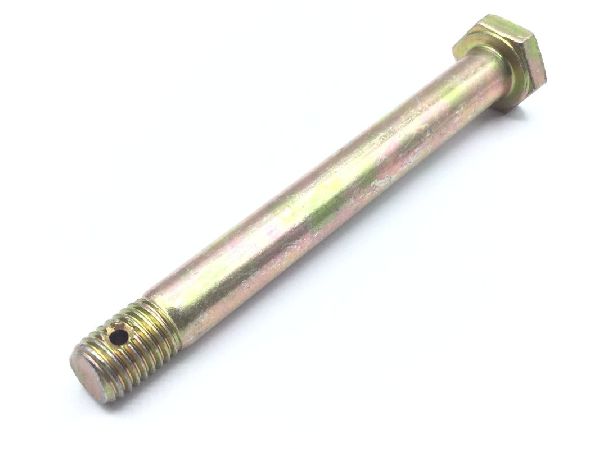

NAS6205-38D Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $7.78

Units per Pack 5

Price per Pack $38.90

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $38.90

Add item to quote

Head Style

Dished hexagon

Material

Steel

Surface Treatment

class 2 federal specification single treatment response type ii qq-p-416

Thread Class

Distance From Head Largest Bearing Surface To Shank Hole Center: 2.621 inches first hole and 2.641 inches first hole
End Application: 1520-01-125-5476
Fastener Length: Between 2.798 inches and 2.828 inches
Grip Diameter: Between 0.3110 inches and 0.3120 inches
Grip Length: Between 2.365 inches and 2.385 inches
Head Height: Between 0.158 inches and 0.171 inches
Material Specification: Nas 4002 national specification single material response
Specification Data: 80205-nas6205 professional/industrial association standard
Thread Diameter: 0.3125 inches
Thread Direction: Right-hand
Thread Length: 0.438 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.492 inches and 0.502 inches
