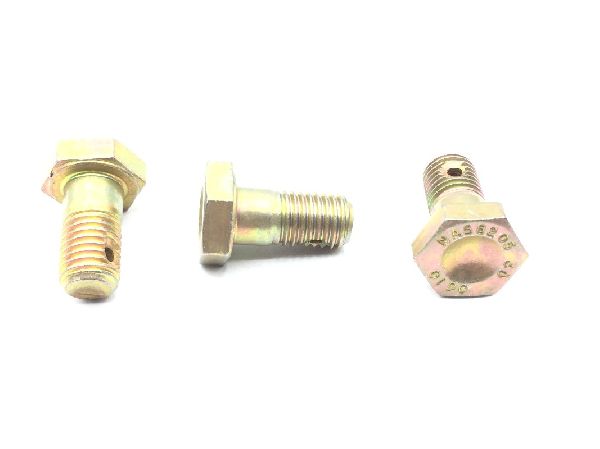

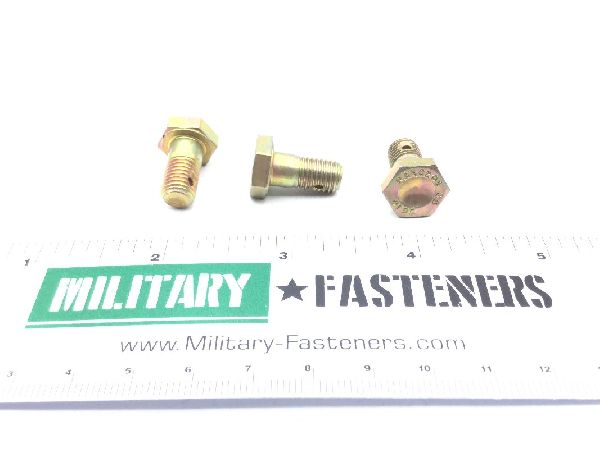

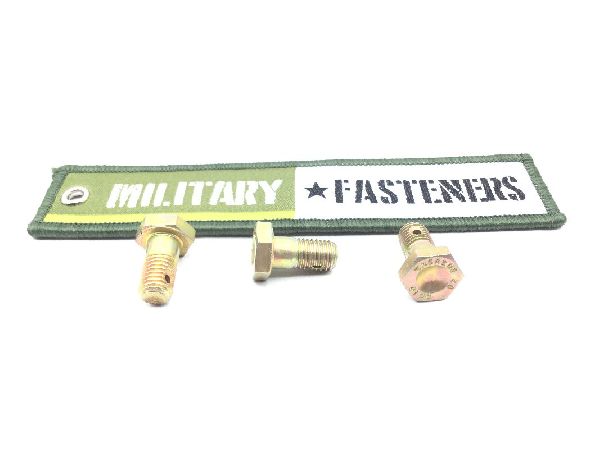

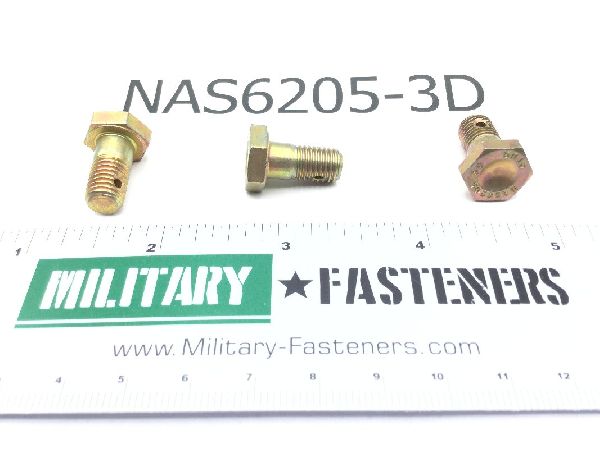

NAS6205-3D Shear Bolt
- Product Series
- NAS
- ECCN
- EAR99
- Schedule
- 7318.15.8085
Unit of Measure:
EA
Add to Quote
We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.
Add to QuoteCouldn't load pickup availability
- Distance From Head Largest Bearing Surface To Shank Hole Center
- 0.419 inches first hole and 0.469 inches first hole
- Fastener Length
- Between 0.611 inches and 0.641 inches
- Grip Diameter
- Between 0.311 inches and 0.312 inches
- Grip Length
- Between 0.178 inches and 0.198 inches
- Hardness Rating
- 36.0 rockwell c and 40.0 rockwell c
- Head Height
- Between 0.156 inches and 0.171 inches
- Material Specification
- Mil-s-5000 military specification 1st material response or mil-s-6049 military specification 2nd material response or ams6322 assn standard 2nd material response
- Min. Tensile Strength (psi)
- 160000 pounds per square inch
- Shank Unthreaded Hole Diameter
- 0.076 inches first hole and 0.086 inches first hole
- Specification Data
- 80205-nas6205 professional/industrial association standard
- Surface Finish
- 32.0 microinches threads
- Thread Diameter
- 0.312 inches
- Thread Direction
- Right-hand
- Thread Length
- Between 0.413 inches and 0.463 inches
- Thread Qty Per Inch (tpi)
- 24
- Thread Series Designator
- Unjf (fine thread with external controlled root radius)
- Width Between Flats
- Between 0.492 inches and 0.502 inches
