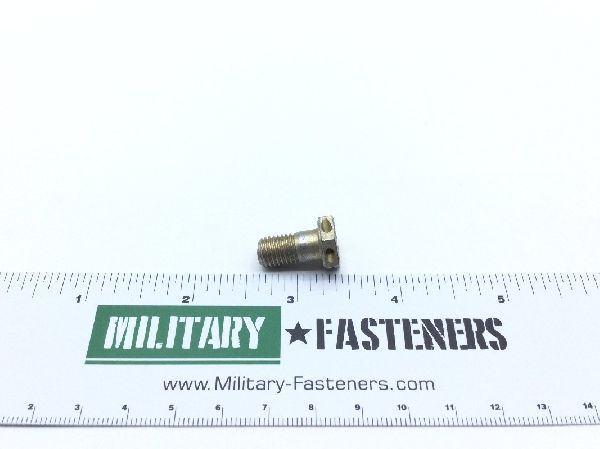

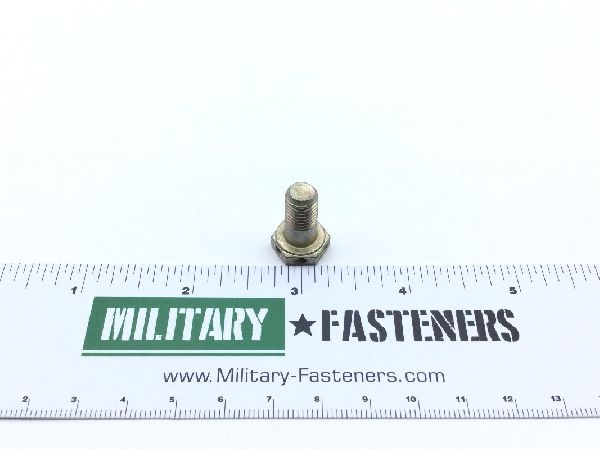

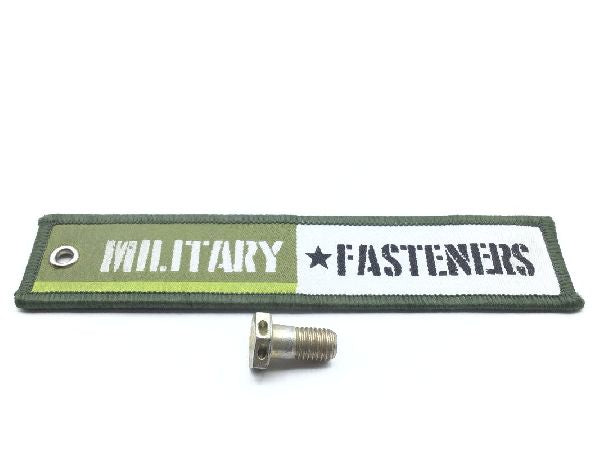

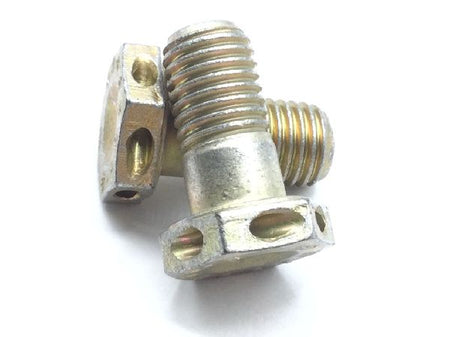

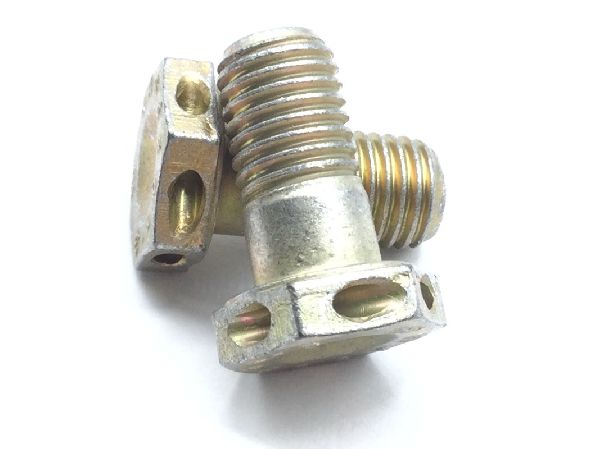

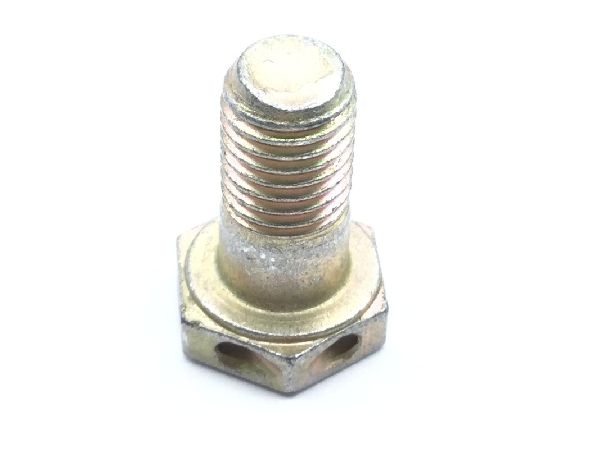

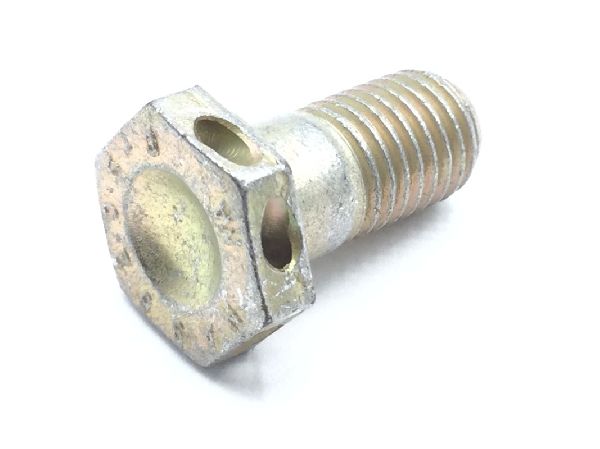

NAS6205-3H Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $4.20

Units per Pack 10

Price per Pack $42.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $42.00

Add item to quote

Head Style

Dished hexagon

Material

Steel comp e4340 or steel comp 4340 or steel comp 8740

Thread Class

Fastener Length: Between 0.611 inches and 0.641 inches
Grip Diameter: Between 0.3110 inches and 0.3120 inches
Grip Length: Between 0.178 inches and 0.198 inches
Head Height: Between 0.156 inches and 0.171 inches
Min. Tensile Strength (psi): 160000 pounds per square inch
Thread Diameter: 0.312 inches
Thread Direction: Right-hand
Thread Length: Between 0.413 inches and 0.463 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.492 inches and 0.502 inches
