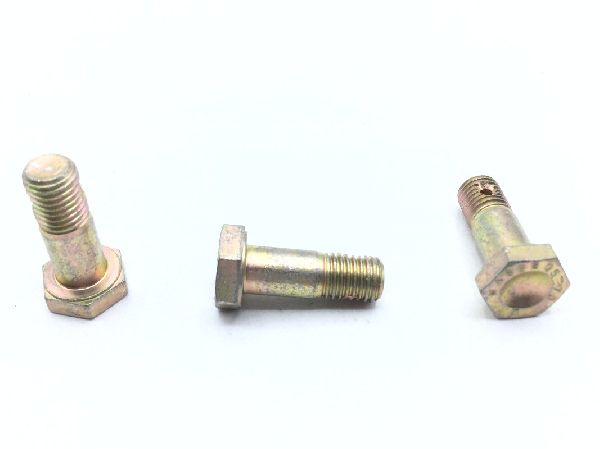

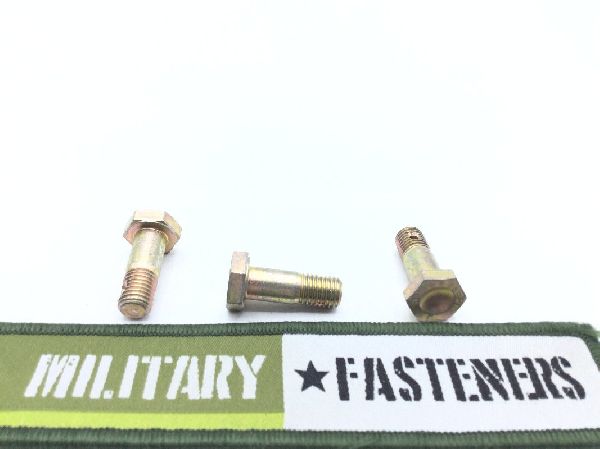

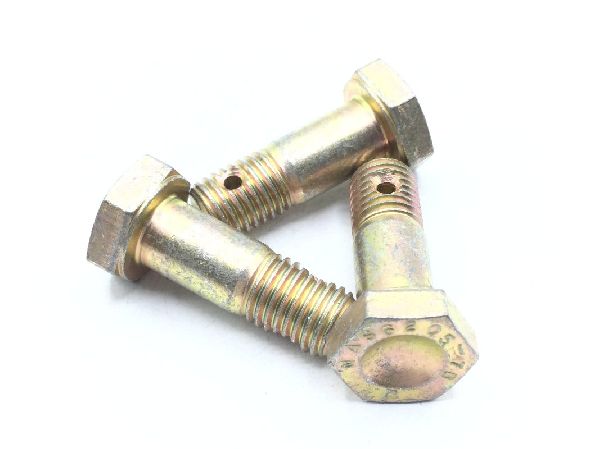

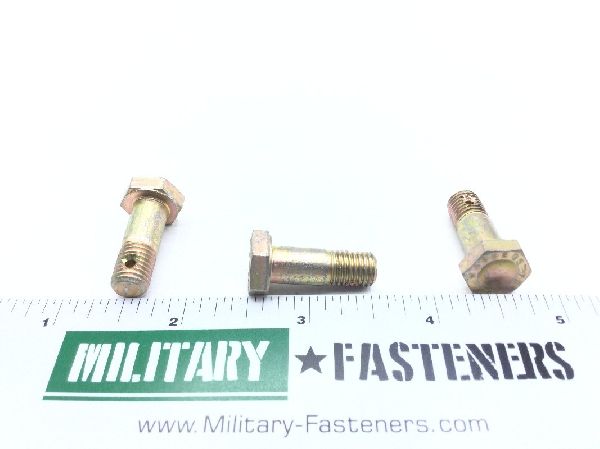

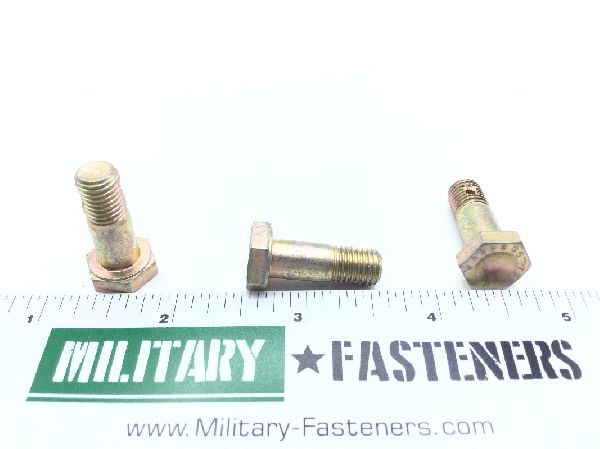

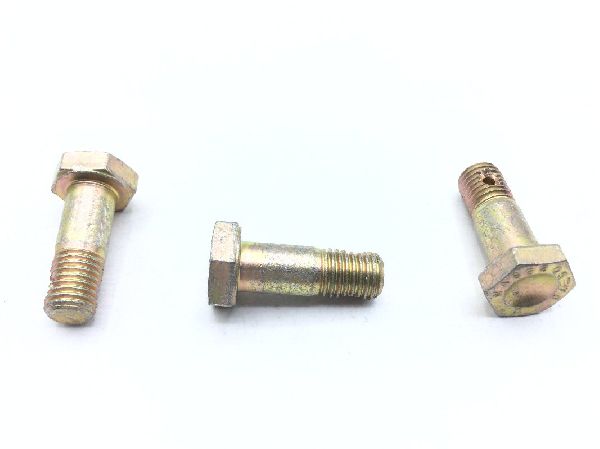

NAS6205-7D Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $9.01

Units per Pack 5

Price per Pack $45.05

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $45.05

Add item to quote

Head Style

Dished hexagon

Material

Steel

Surface Treatment

Class 2 federal specification single treatment response type 2 qq-p-416

Thread Class

Distance From Head Largest Bearing Surface To Shank Hole Center: 1.132 inches all holes
End Application: C-130 aircraft
Fastener Length: Between 1.299 inches and 1.329 inches
Grip Diameter: Between 0.311 inches and 0.312 inches
Grip Length: Between 0.861 inches and 0.891 inches
Head Height: Between 0.156 inches and 0.171 inches
Material Specification: Ams6349 assn standard single material response or ams6382 assn standard single material response or ams6415 assn standard single material response or ams6484 assn standard single material response or ams6322 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Part Name Assigned By Controlling Agency: Close tolerance hex head tension bolt
Shank Unthreaded Hole Diameter: 0.076 inches and 0.086 inches all holes
Special Features: Embrittlement requirement per nas4002
Thread Diameter: 0.3125 inches
Thread Direction: Right-hand
Thread Length: 0.438 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.492 inches and 0.502 inches
