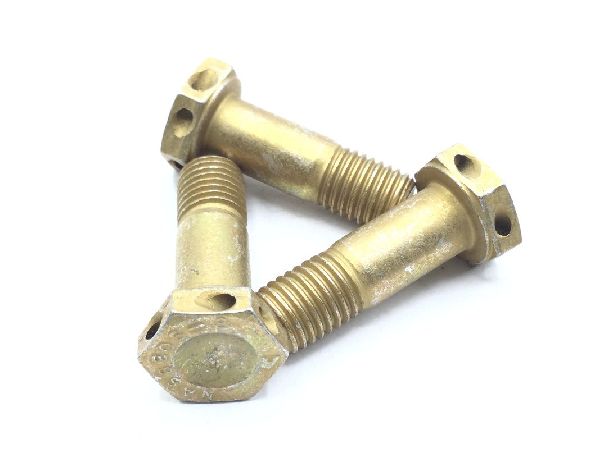

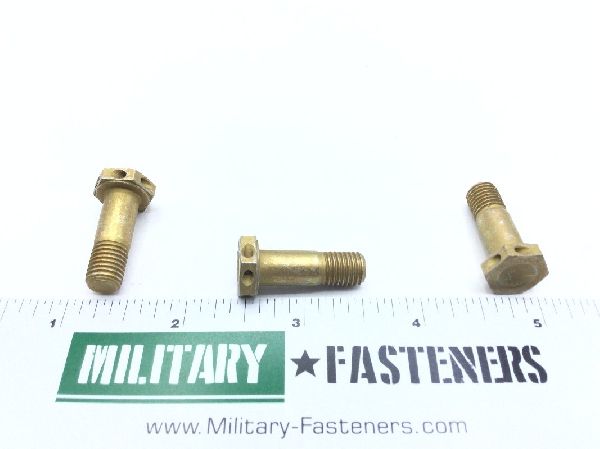

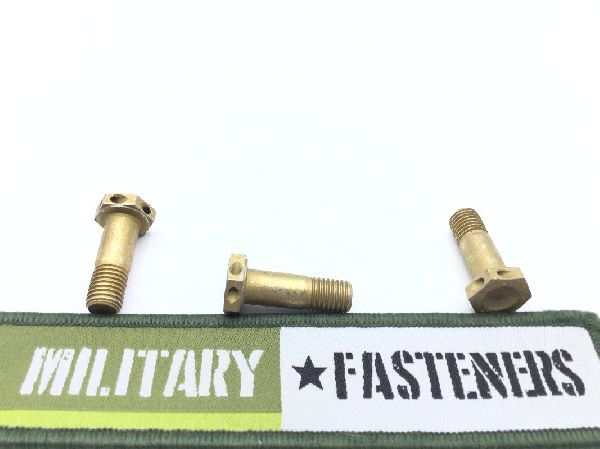

NAS6205-8H Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Dished hexagon

Material

Steel

Surface Treatment

Class 2 federal specification all treatment responses type ii qq-p-416

Thread Class

End Application: Airframe aircraft kdc-10
Fastener Length: 0.938 inches
Grip Diameter: Between 0.311 inches and 0.312 inches
Grip Length: 0.500 inches
Head Height: Between 0.156 inches and 0.171 inches
Special Features: Drilled shank and drilled head nonlocking
Thread Diameter: 0.312 inches
Thread Length: 0.438 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.492 inches and 0.502 inches
